Ferroli SUN Series User Manual

S.p.A.
4
SUN

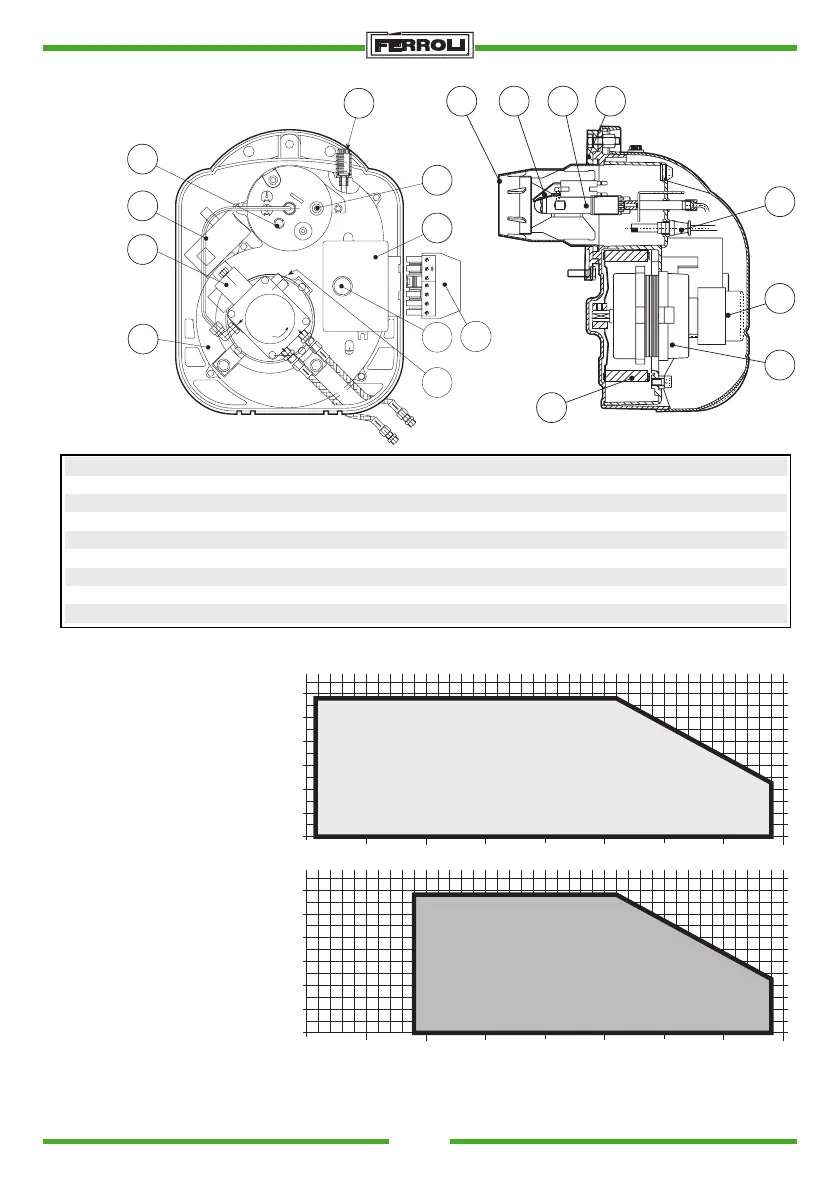

MAIN PARTS
Fig. 2
Fig. 3
1
kg/h
1.5
0.6
0.5
0.4
0.3
0.2
0.1
0
∆p mbar
2.0 5.04.54.03.53.02.5
1
kg/h
1.5
0.6
0.5
0.4
0.3
0.2
0.1
0
∆p mbar
2.0 5.04.54.03.53.02.5
SUN G.6 R
SUN G.6
Pressure in combustion chamber ∆p mbar
Heating oil flow rate Kg/h
OPERATIVE RANGE OF THE BURNER
V
5
17
4
P
20
15
10
5
0
16
8
3
13
18
6
15
12 11 10 9
7
2
1
14
1 Heating oil pump
2 Motor
3 Electromagnetic valve
4 Burner unit
5 Release button
6 Mechanism
7 Photoresistance
8 Ignition transformer
9 Burner coupling flange
10 Injector line with preheater
11 Ignition electrodes
12 Nozzle
13 Air lock adjuster screw
14 Spina allacciamento elettrico
15 Fan
16 Combustion head adjustment
17 Pump pressure adjustment
18 Pressure tap
Key

Ferroli SUN Series Specifications

General

Model	SUN Series
Category	Burner
Control	Electronic
Dimensions	Varies by model
Efficiency	Up to 93%
NOx Emissions	< 70 mg/kWh (Class 5)
