Festo CP−FB13−E 0802e English 15

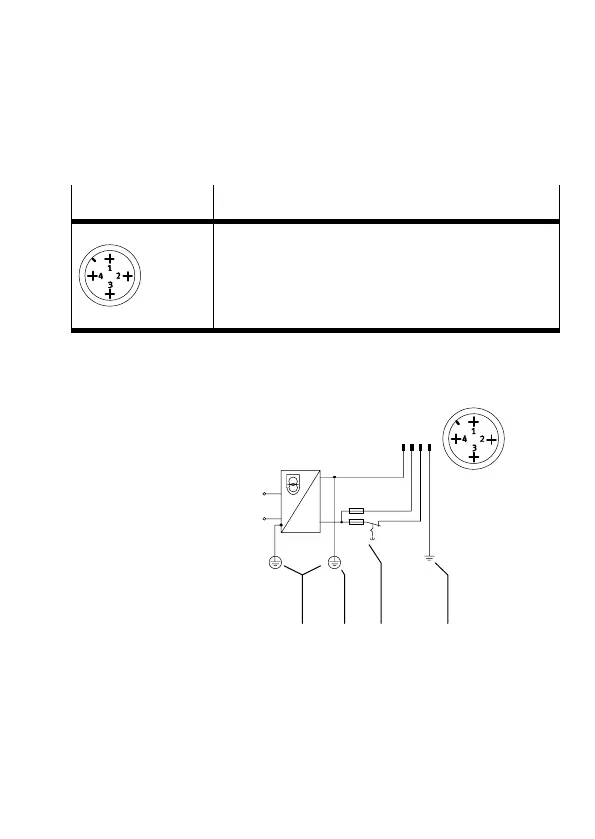

2.2 Pin assignment of power supply connection

M18 connection

Pin no.

1. 24 V DC operating voltage for electronics and

inputs

2. 24 V DC load voltage for valves

3. 0 V

4. Functional earth

2.3 Example of connection of PELV power unit and poten

tial equalization

1 PE

2 Potential

equalization

3 Load voltage can

be switched off

separately and

external fuses

4 Earth connection

pin 4 (max. 12 A)

3124

123 42

10 A

3.15 A
