Festo CP−FB6−E 0802f English22

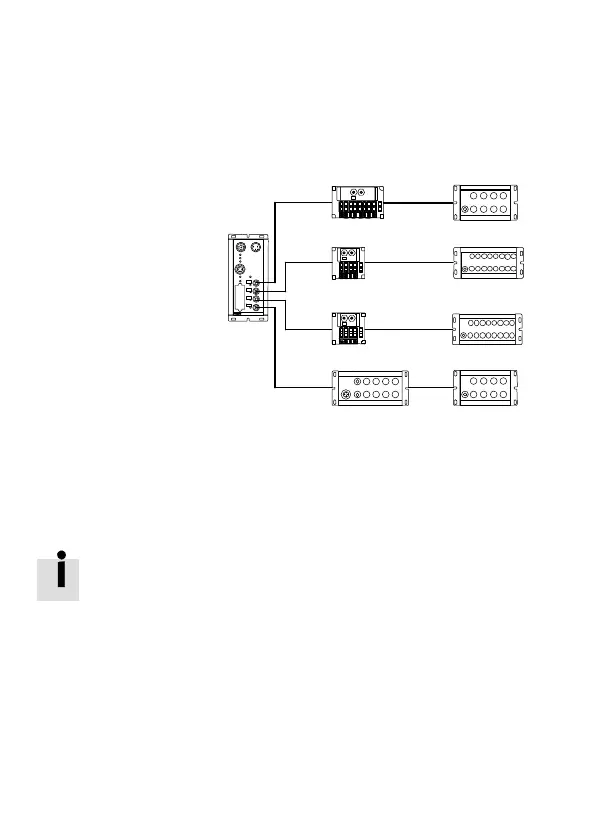

4Addressing (example Siemens)
1 O0 ... O15
2 I0 ... I15
3 O16 ... O31
4 I16 ... I31
5 O32 ... O47
6 I32 ... I47
7 O48 ... O63
8 I48 ... I63
0
1
3
2
SAVE
POWER
24 VDC
POWERV
ERROR V
RD
BA
RC
1
2
34
5
6
7
8
1. A CP valve location occupies two addresses:
 lower valve address = pilot valve coil 14;
 higher valve address = pilot valve coil 12.
2. Electrical output or input modules occupy 16 outputs
or input addresses.
You will find detailed information on addressing your CP
system in the manual CP system".
