Festo CPX-FB43 - Structure; Product Design; Product Variants

Festo — CPX(-M)-FB33/34/35/43/44/45 — 2022-05f
Product overview
7
The current GSDML file is required to be able to use all functions of the bus node.
The current GSDML file for CPX terminals is located in the Festo Support Portal:
è
www.festo.com/sp
Consult your local Festo repair service if you have any questions or technical problems.
4.2 Structure
4.2.1 Product design
1
1
2
2
3
3
3
3
4
4
5
5
6
6

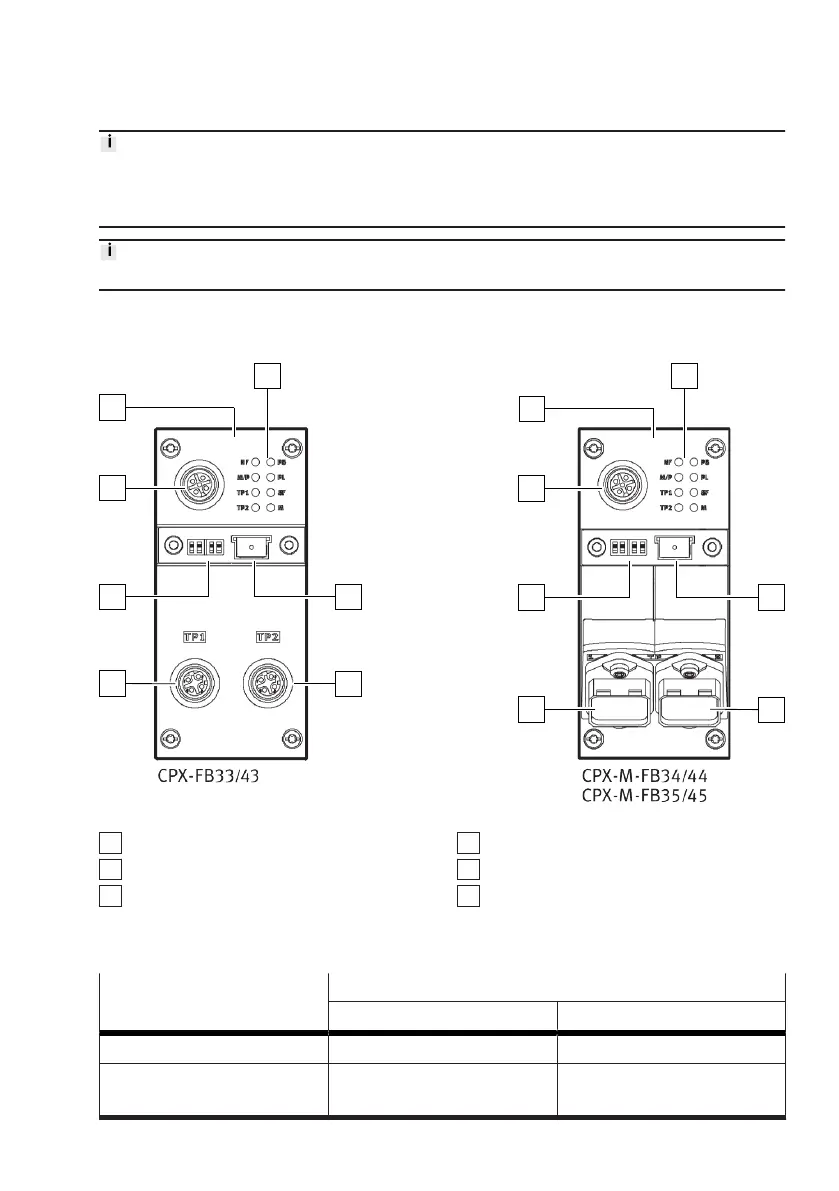

Fig. 1: Connection and display elements
1
LED displays
2
Memory card, only for FB33/34/35
3
Network connection
4
DIL switches
5
Service interface
6
Product labelling
4.2.2 Product variants
The following software and hardware revisions are a prerequisite for using the functions:
Function Bus bus node revision number
Software Hardware
Priority start-up (Fast Start-up) from Rev 12 from Rev 11
Identification & Maintenance
(I&M)
from Rev 14 from Rev 1
