Produktübersicht
(und Komponenten)
Beim Zusammenbau mit anderen
Wartungsgeräten:
Beachten Sie, daß
strömungsbedingte technische Daten
der Kombination von denen der
Einzelgeräte abweichen.
Die technischen Daten
vorkonfektionierter Kombinationen
sind dem Katalog oder der
Bedienungsanleitung zum Typ
FRC-D-... zu entnehmen.
Beim Zusammenbau zweier Feinstfilter
zu einer Feinstfilterkombination
LFMBA-...:
Beachten Sie die Reihenfolge der
Feinstfilter in Durchflußrichtung.
Der LFMB-Filter muß dem
LFMA-Filter vorgeschaltet sein.
Summary of product
(and components)
Combination with other maintenance
units:
Please note that the technical flow
specifications of combinations differ
from those of the individual units.
The technical specifications of
ready-made combinations are to be
found in the catalogue or in the
operating instructions for type
FRC-D-....
Combination of two micro filters to form
microfilter combination
LFMBA-...:
Please observe the sequence of the
micro filters in the direction of flow.
The LFMB filter must be in front of
the LFMA filter.
3
Filter + Regler = Filter-
Regler
LF + LR = LFR

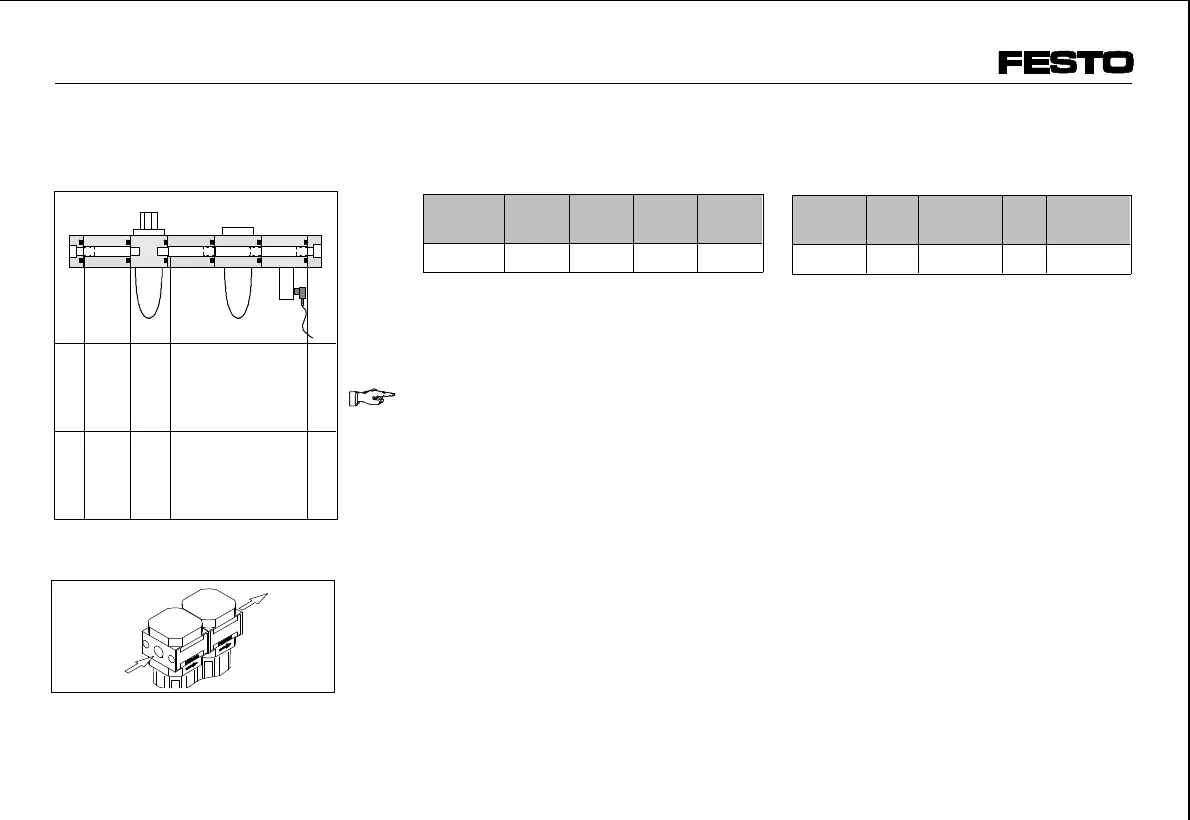

Bild 2: Theoretische Verknüpfung der
Geräte-Baugruppen
Filter + Regulator = Filter
regulator
LF + LR = LFR
Fig. 2: Theoretical linking of unit components
Abschluß
Anbau
Zentral
Anbau
Abschluß
Termination
Fitting
Central
Fitting
Termination
Bild 3/Fig. 3
LFMB
(1 µm)
LFMA
(0,01 µm)
Bild 4/Fig. 4
LF-.., LFM-.., LFR-.., LR-..-D-...
9607C D/GB 4
