Festo SDAT-MHS - 1 Product Description; Overview; Characteristics

SDAT-MHS
Festo – SDAT-MHS – 2017-11f English 5
1 Product description
For all available product documentation è www.festo.com/pk
1.1 Overview
2
3
4
5
6
7
2
1
1 Connecting cable
2 Mounting screw
3 Plug M8, rotatable
4 Red LED: Status display
5 Green LED: Ready status display
6 Yellow LED: Switching status display
7 Operating key

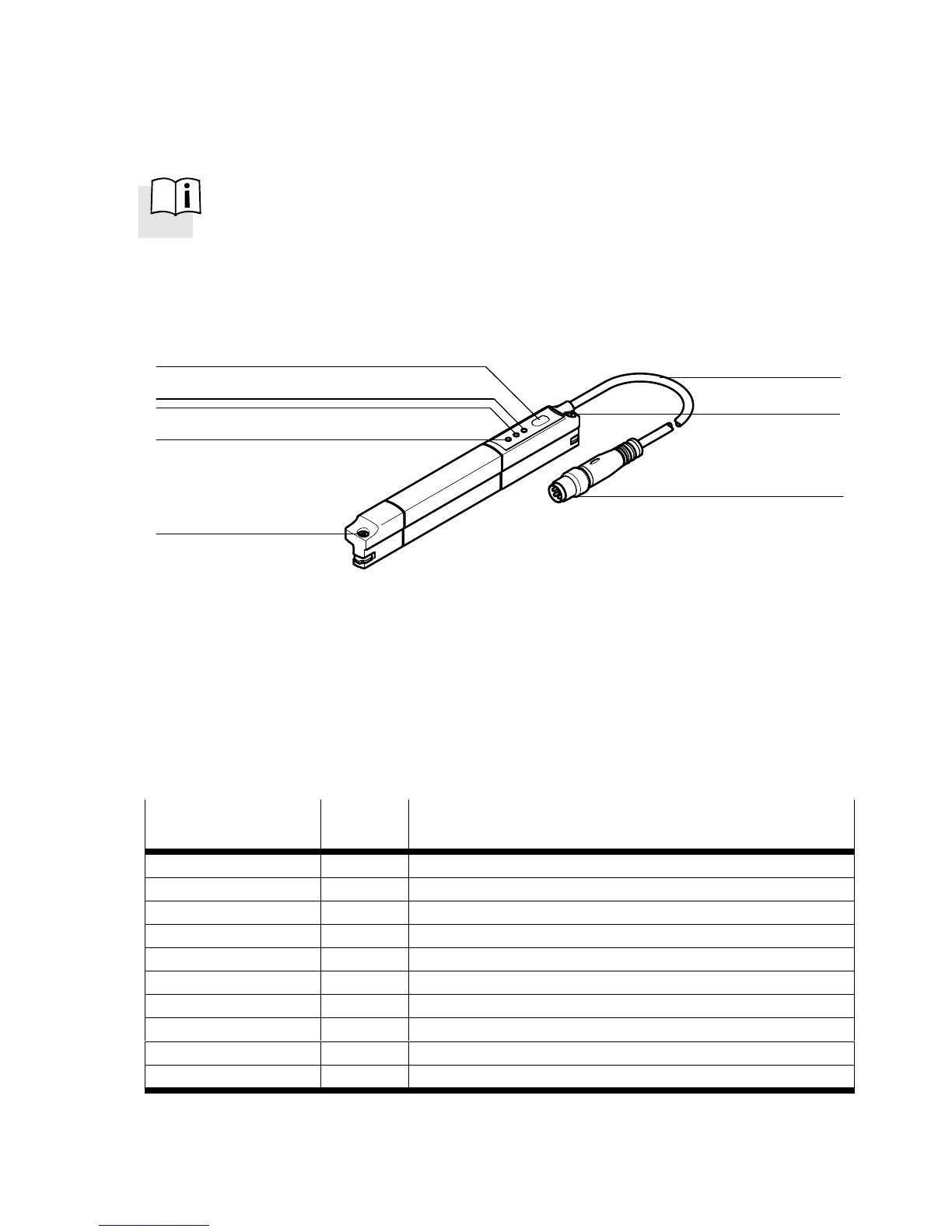

Fig. 1 Control sections and connections
1.2 Characteristics
Feature
Order
code
Specification
Position transmitter SDAT-
Mounting M Insertable in slot
Sensing HS- Hall sensor
Sensing range Mxx- Range in mm, xx = 50/80/100/125/160
Operating voltage 1 24 V DC
Display L- LED
Electrical output SA- PNP or IO-Link and analogue output 4…20 mA
Cable characteristic E- Energy chain + robot
Cable length 0.3- Cable length 0.3 m
Electrical connection M8D M8 rotatable (threaded sleeve)
Tab. 1 Overview of variants
