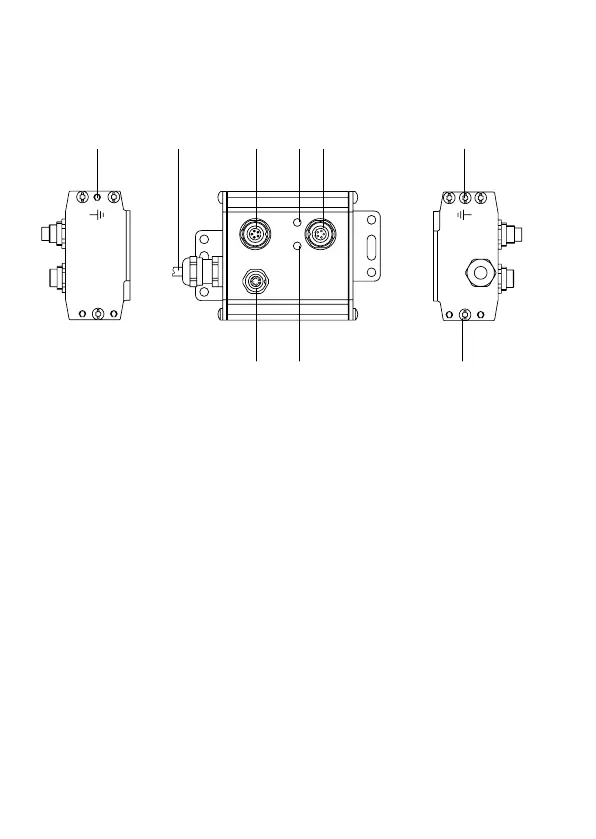

2 Connecting and display elements
12345
76
1
2
1 Earthing connection
2 Measuring system
connection
3 Connection for SPC200 (IN)
4 POWER−LED (green)
5 Connection (OUT) for further
field devices or terminating
resistor type KABS−M9−R100
6 ERROR LED (red)
7 Connection for valve
type MPYE−5−...−010−B
