Festo SPCAIF−... 0506b English
15
3 Fitting
Fit the axis interface as close as possible to the relevant
drive. The length of the cable to the measuring system
should be approx. 300 mm.
The axis int
erface type SPCAIF−... must be fitted on a flat
surface.
S Fasten the axis interface with at least 3 M4 screws.
The axis interfaces can be fitted vertica
lly. Separate sup
port brackets type SPCHBW−SET (accessories) are necess
ary here.
1
2
3

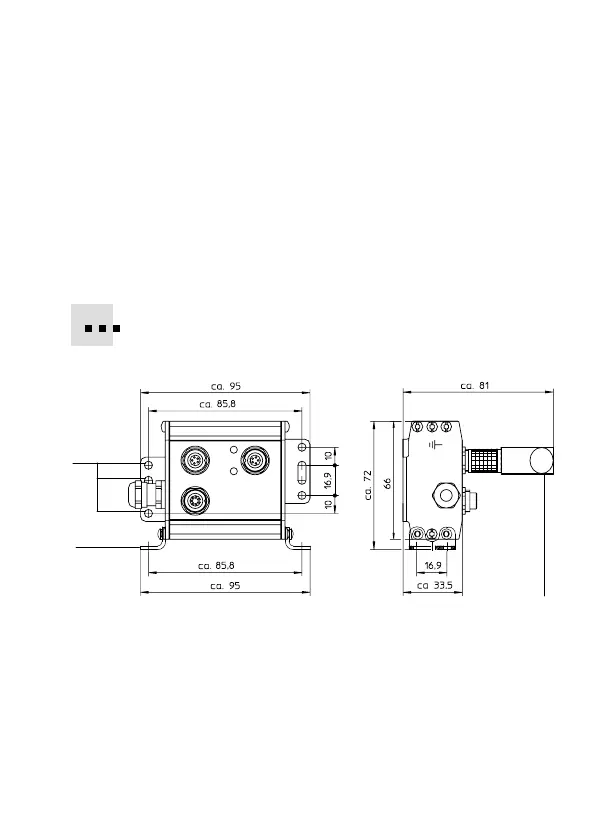

1 Fastening holes for horizontal
mounting
2 Angled plug
3 Additional support bracket
(accessory) for fitting with
vertical mounting
