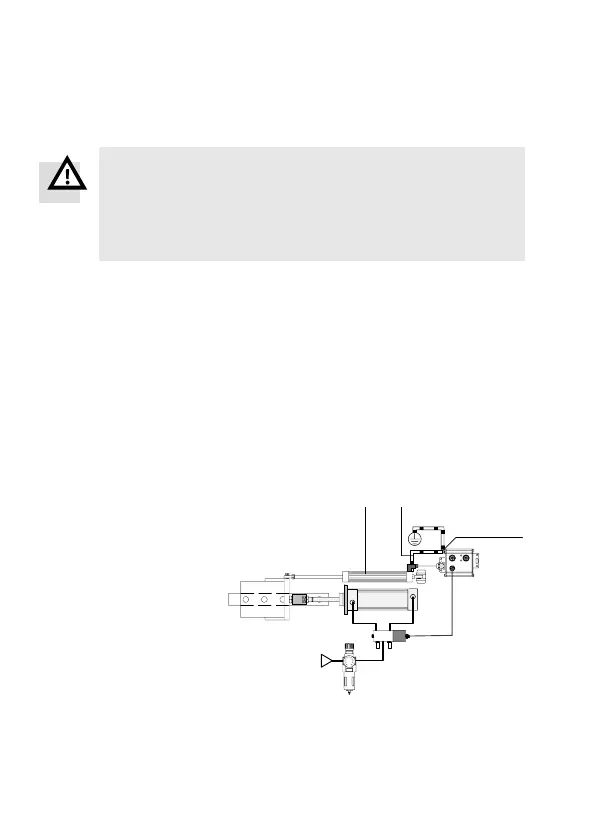

4 Installation
Warning
Interference due to electromagnetic sources is liable to
cause sudden compensatory movements of the axis.
Follow the installation procedure below in order to pre
v
ent this electromagnetic interference.
Connect the earth connection on the left−hand side of
the housing with low impedance (short cable with
large cross−sectional area)
to the earth potential, if the
axis interface is not attached to an earthed machinery
frame.
Only with measuring system type MLO−POT−...−LWG:
For earthing, connect
the earth strip (included with the
measuring system) to the flat plug of the measuring
system and to the earthing connection of the axis in
terface.
1 Measuring system
(here type
SPC−AIF−POT−LWG)
2 Earth strip (only
with measuring
system type
MLO−POT−...−LWG)
3 Earthing connection
12
3
