Festo SPC−AIF−... 0506b English
17
Only with swivel module type DSMI−...:
For earthing, connect the earthing connection of the
DSMI and the earthing connection of the axis interface
using an earth strip or an
earthing cable (cross−sec
tional area at least 2.5 mm
2
, length max. 0.5 m).

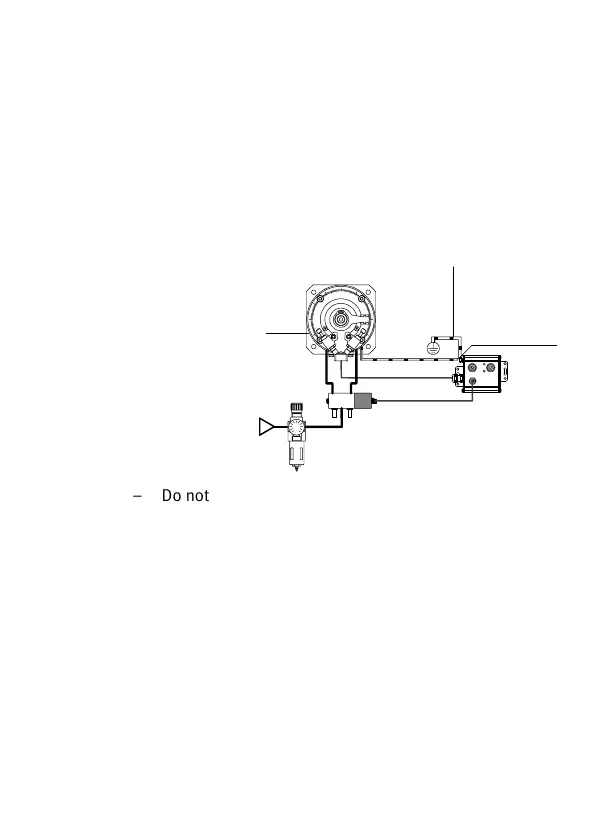

1 Swivel module with
integrated measuring
system type DSMI−...
(rear view)
2 Earth strip or
earthing cable
3 Earthing connection
1
3
Do not lay any axis interface cables, CP cables,
measuring system cables or proportional directional
control valve cables near or parallel to cables with hig
h
interference levels.
Use only original cables. Attach the plug with the help
of the union nut, so as to avoid any unintentional
slackening caused by
oscillation etc.
Seal any unused connectors with the protective caps
provided. Only then is the IP65 type of protection en
sured.
