4 Operation

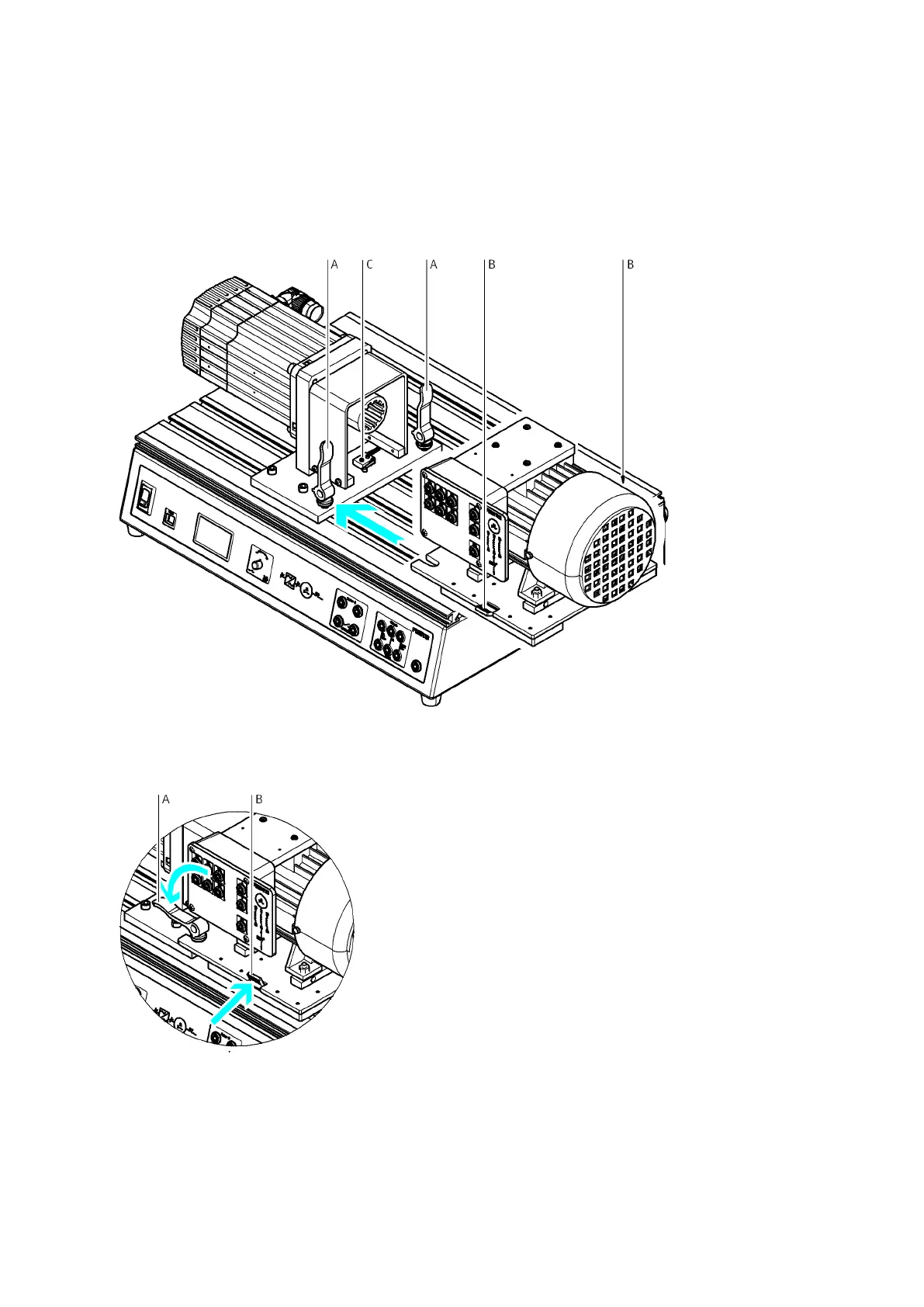

Mounting the test object – here’s how:
1. Turn off the mains switch and the power switch.
2. Release both quick clamp levers (A) at the test bench (set to the vertical position).
3. Press together and hold the two clamp levers (B) at the test object.
4. Guide the test object receiving plate into the slots on the test bench housing.
5. Push the test object towards the servo brake motor until the limit switch (C) is actuated.
6. Securely clamp the test object to the test bench housing. Simply release the two clamp levers (B) to this
end, which then automatically secure the test object. Then rotate the quick clamp levers (A).
32
© Festo Didactic GmbH & Co. KG 757309
