EDIT mode (è Also Fig. 20)
The EDIT mode enables the following:
In the OUT menu:
– Selecting the switching function (threshold value, window comparator or SP.O.)
– Setting the switching points [SP] or [SP min] and [SP max] and the hyster
esis [HY]
– Selecting the switch type [NO/NC] (normally open/closed)
In the IN menu:
– Setting the minimum and maximum pressure of the pressure regulation range
– Selecting the pressure unit [kPa, psi, bar] or [mA/V] or [%] (depending on
setting in menu [SPEC])
In the Set menu:
– Selecting a factory parameter record [Set1], [Set2] or [Set3]
In the SPEC menu:
– Setting the security code [Lock] and the pressure unit [kPa, psi, bar]
1)
2)
not
in
function
(FORCE)
1) Dependent on the version of the VPPM-...C1
2) Dependent on the setting in the [SPEC] menu

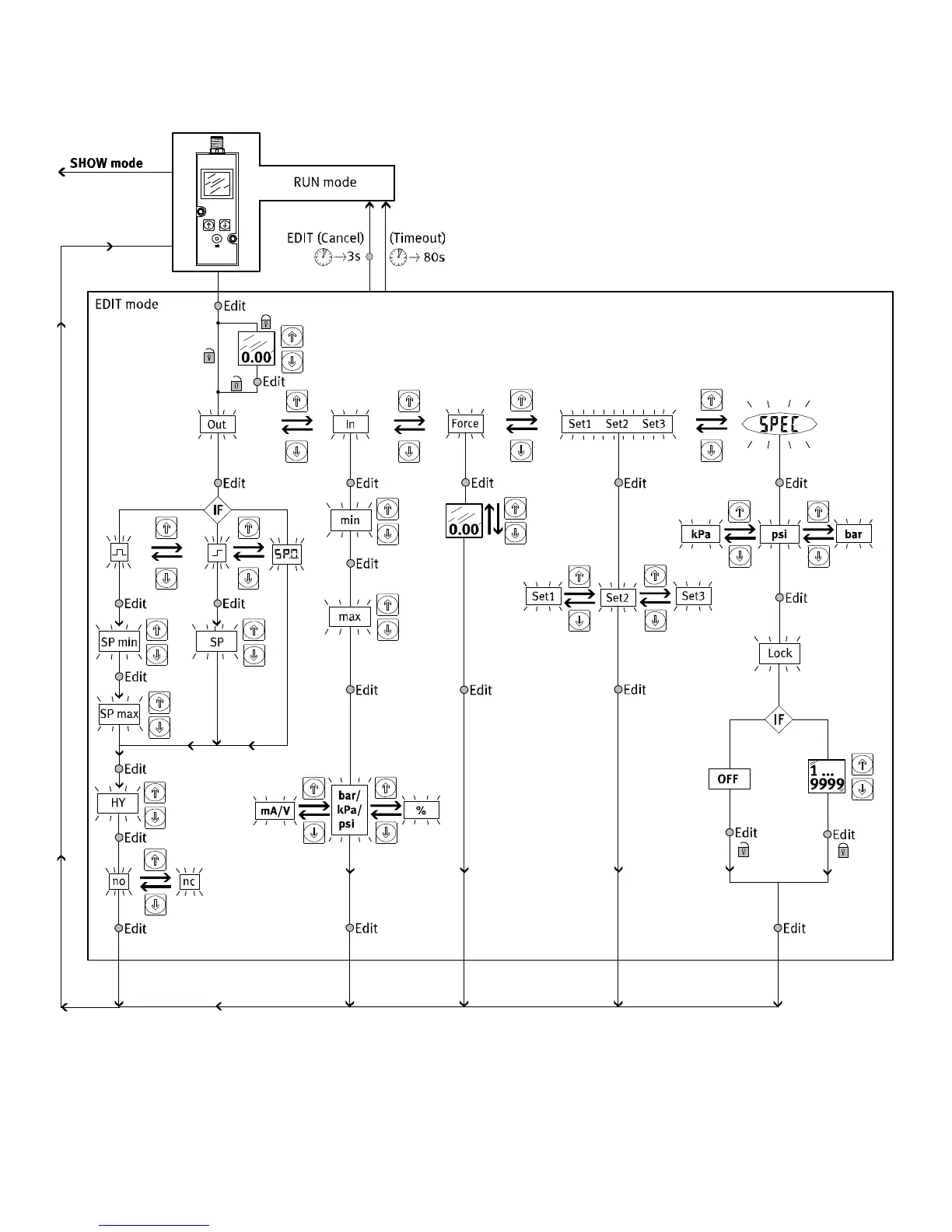

Fig. 20
