10 Kapex KS120 Miter Saw

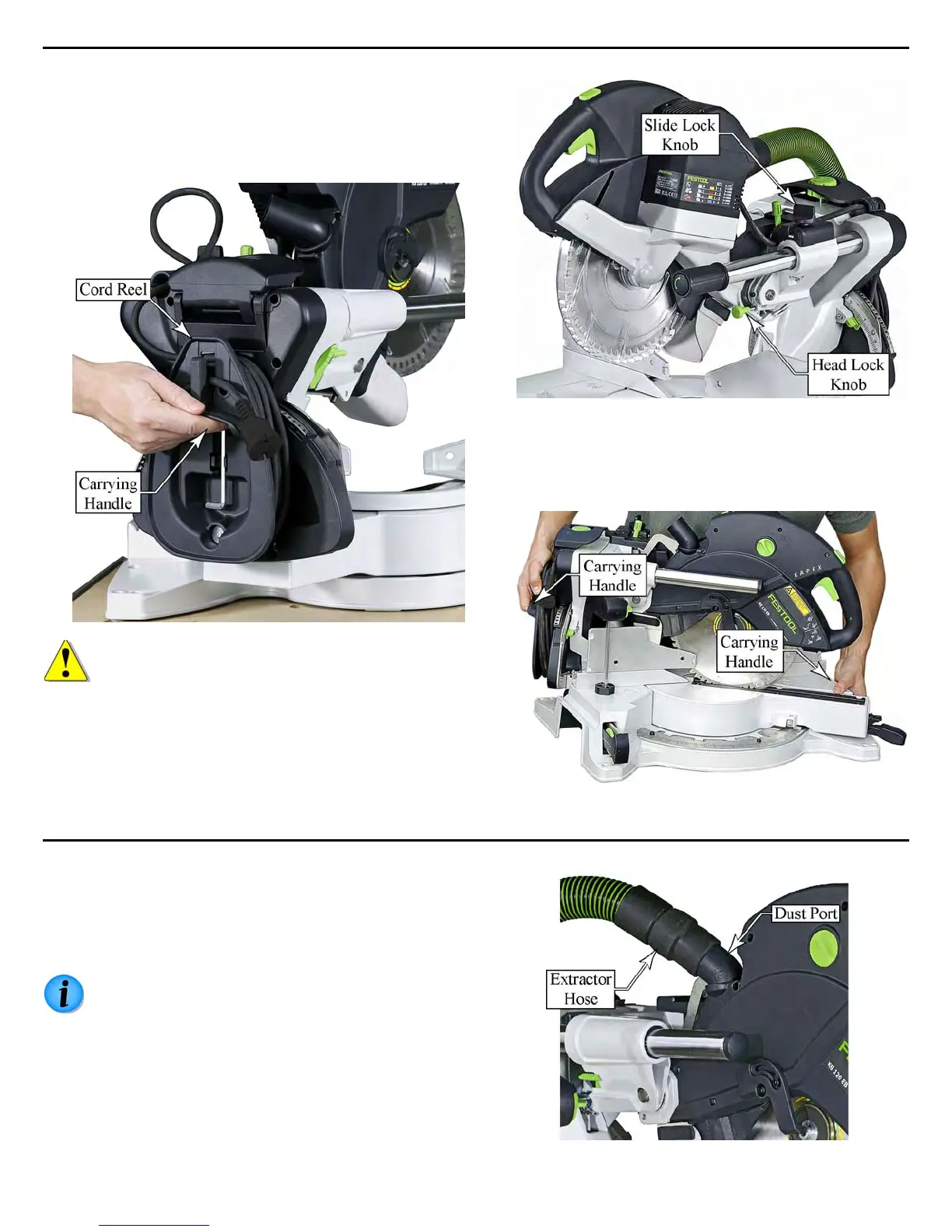

Transporting the Saw
When The Kapex miter saw is collapsed for transport, it is
very well balanced and easily carried using the integrated
carrying handles.
1. Unplug the saw and coil the power cord on the reel at
the rear of the saw.
WARNING! To reduce the risk of unexpectedly
starting the saw, make sure the saw is
unplugged.
2. Pull the power trigger (without depressing the trigger
lock) and lower the motor head down. When the head
is in the down position, push in on the Head Lock Knob
(see the picture to the upper right).
3. Push the motor head all the way to the rear of the saw
and tighten the Slide Lock Knob.
4. Set the miter angle to 60° and push down on the miter
lock lever.
5. Pick up the saw from the rear by grasping the two
handle points as shown below.
Dust Extraction
The Kapex saw can be connected to a dust extractor to
substantially reduce dust during operation. The dust port
swivels to either side, and accepts either a 27 or 36 mm
Festool hose. The 27 mm hose fits inside the dust port, or
the 36 mm hose fits over the outside of the dust port.
Note: For optimal dust extraction performance,
Festool recommends using a 36 mm hose.
