Festool Kapex KS 120 User Manual

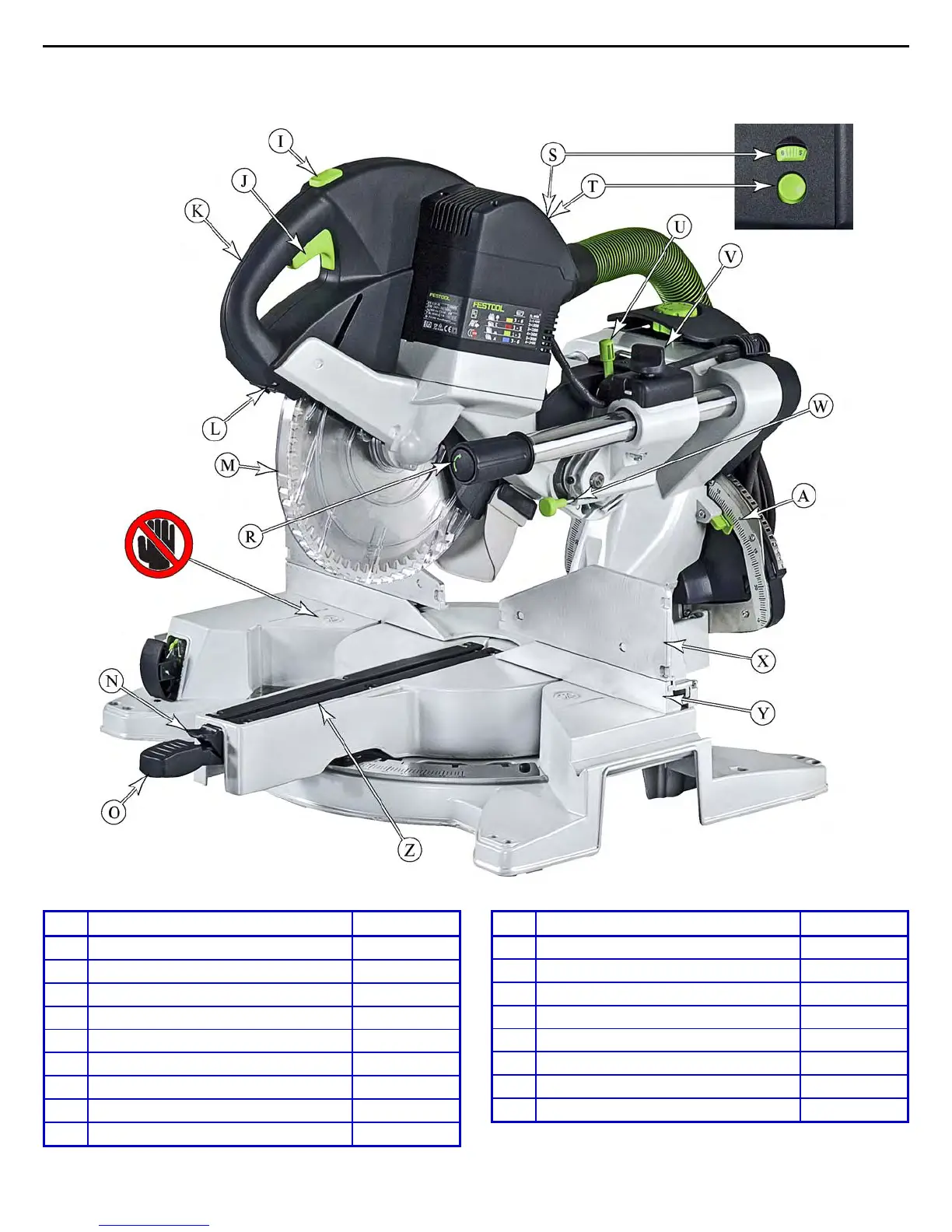

Functional Description (continued)
Item Name or Description Ref. Page(s)
A Bevel Gauge and Pointer (both sides) 12, 18
I Trigger Lock 9, 10, 11
J Power Switch/Trigger 9, 10, 11
K Main Handle 11, 17
L Laser Dust Lens 28
M Blade Guard 9
N Miter Stop Release Lever 12, 15, 18, 20
O Miter Lock Lever 12, 15, 18, 20
R Bevel Adjustment Knob 12, 18
Item Name or Description Ref. Page(s)
S Speed Control Dial (see inset) 11
T Laser On/Off Button (see inset) 11
U Depth Limit Adjustment Knob 13
V Slide Lock Knob 10
W Head Lock Knob 10
X Auxiliary Fence 13
Y Main Fence 13, 23
Z Table Inserts 23
Supplemental User’s Manual 7

Festool Kapex KS 120 Specifications

General

Blade Diameter	260 mm
Cutting Capacity at 90°	305 x 88 mm
Cutting Capacity at 45°	215 x 88 mm
Cutting Capacity at 45°/45° (Left)	215 x 55 mm
Cutting Capacity at 45°/45° (Right)	215 x 35 mm
Power Consumption	1600 W
Weight	21.5 kg
Dust Extraction Connection Diameter	27/36 mm
Bevel Angle Range	47°/47°
Idle Engine Speed	1400 - 3400 RPM
