Fetco CBS-2231 - Rough-In Drawings

2 P215 REV000 February 2023
Specifications and Requirements
FETCO CBS-2230 Brewers have unique construction only available for these models.
Water Requirements:
Coffee Filter Size:
CBS-2230 20-75 psig, (138-517kPa) 1½ gpm/(5.7 lpm)
13” X 5 or FETCO# F002”
Optimal water hardness between 125-250 TDS (6-13 grain)
Important! Please use a water filter for all beverage equipment
Temperature, as set by factory:
200°F (93°C) inside water tank (at sea level)
Water inlet fitting: 3/8 inch male flare.
Brewer supplied with inlet valve adaptor for BSP to SAE
Electrical: See electrical configuration chart Pg 3.
Brew Volume: Full Batch
3.8 L/1.0 gal brew
Brew Capacity
(approximate)
CBS-2231 4-8 brews per hour
CBS-2232 5-16 brews per hour
Output is controlled by heater power and water temperature
Total Brew Cycle: Factory setting: 6 minutes consisting of 4 min. brew time and 2.0 min. drip delay
Individual menu brew-process parameters are user controllable for:
Basic user controls for brew volume, brew time, units of measure, recipe name
Advanced user controls for pulse count, prewet percent and prewet delay, drip delay, programmable energy saving
See pages 4-5 for how to adjust controls for temperature, brew volume, units - and all other settings
Weights and Capacities
Model Height Width Depth
Water tank
capacity
Empty
Weight
Filled
Weight
Shipping
Weight
Shipping Dimensions
CBS-2231
Brewer
27 3/4 in
700 mm
11 3/4 in
300 mm
20 3/8 in
520 mm
3.3 gallon
12.4 L
29 lbs
13.2 kg
55 lbs
25.0 kg
41 lbs
18.6 kg
30” x 17” x 22”
76.2 x 43.2 x 55.9 cm
CBS-2232
Brewer
27 3/4 in
700 mm
19 ¾ in
500 mm
20 3/8 in
520 mm
6.0 gallon
22.4 L
47 lbs
21.3 kg
92 lbs
41.7 kg
55 lbs
25.0 kg
30” x 23” x 25”
76.2 x 58.4 x 63.5 cm
Calibrated for
3.8 L/1.0 gal brew
Brew Basket 13” X 5” Coffee Filter 13” X 5 or FETCO# F002”
1” legs standard
2.5” legs optional

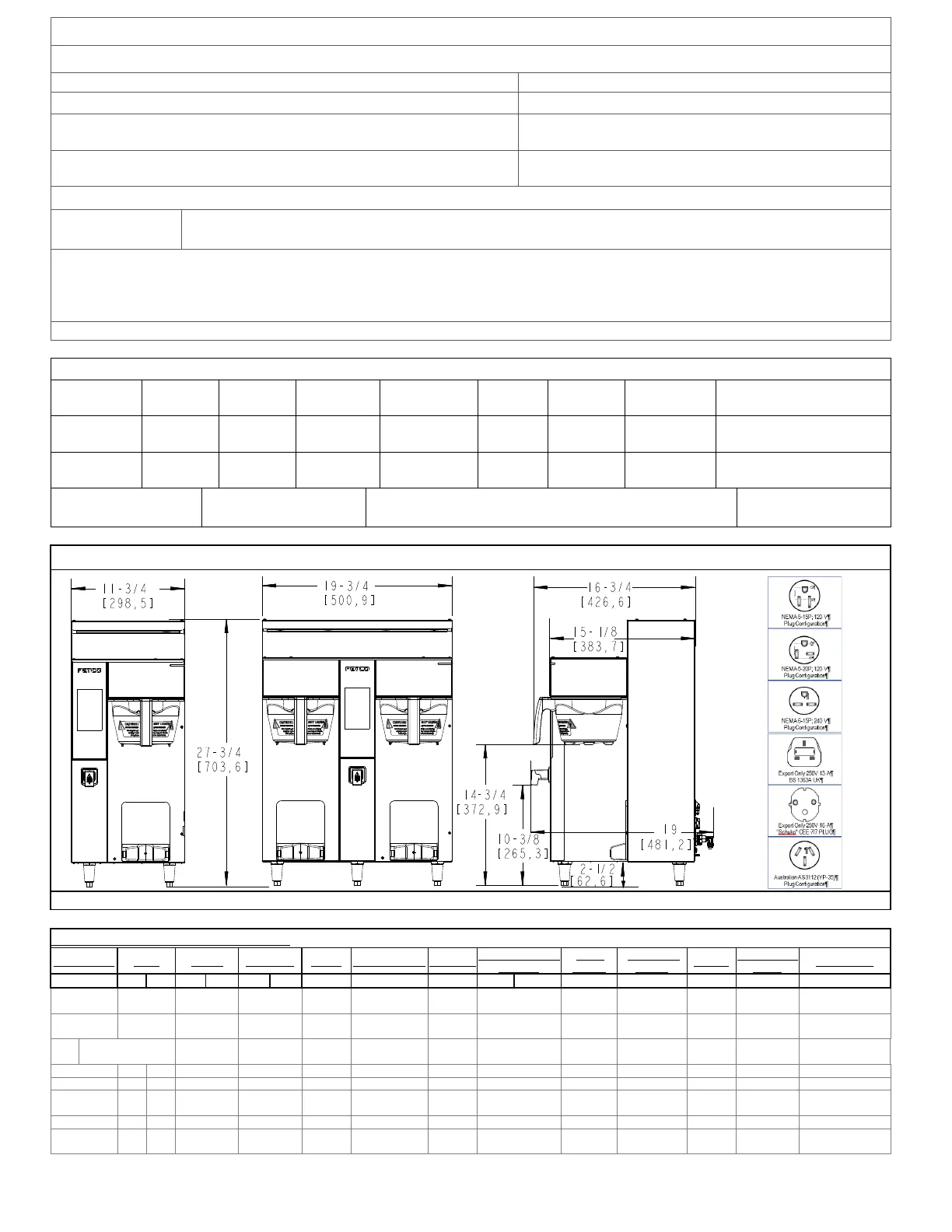

Rough-In Drawings
CBS-2231 Front CBS-2232 Front CBS-2231 1 & CBS-2232 Side Power cord plug
EXAMPLE: SKU E2231US-1X117-PM001 SKU NUMBER IDENTIFICATION KEY
Product Line Level Family Region ID Phase Voltage Range
# Heaters
Individual Heater
Wattage
Brew
Basket
Hot Water
Faucet
Bypass
Brew Basket
Locks
Power Cord
E
2
2
3
1
U
S
1
A
1
1
5
P
M
0
0
1
E=extractor
US =United
States
1 A = 100-120 1 1.5 P=plastic M=manual 1=Yes 1=Yes 0=Terminal Block
12=PLUS
Series
31=
single side
IN =
International
2 B = 200-240 2 1.7 M=metal A=automatic 0=No 0=No 1= NEMA 5-15P
22=Next
Generation
32=
dual side
CE = IEC 3 C = 380-415 3 2.3
C=metal
with clips
N=None 2=NEMA 5-20P
NM = NOM
U = 1 or 3
D = 440-480
6
3.0
3=NEMA 6-15P
4.0
4=NEMA 6-30P
X=120 or 240
Dual Voltage
5.0
5=CEE 7/7
Schuko
6=UK1-13P
7= AUSTRALIAN
AS3112 (YP-35)
