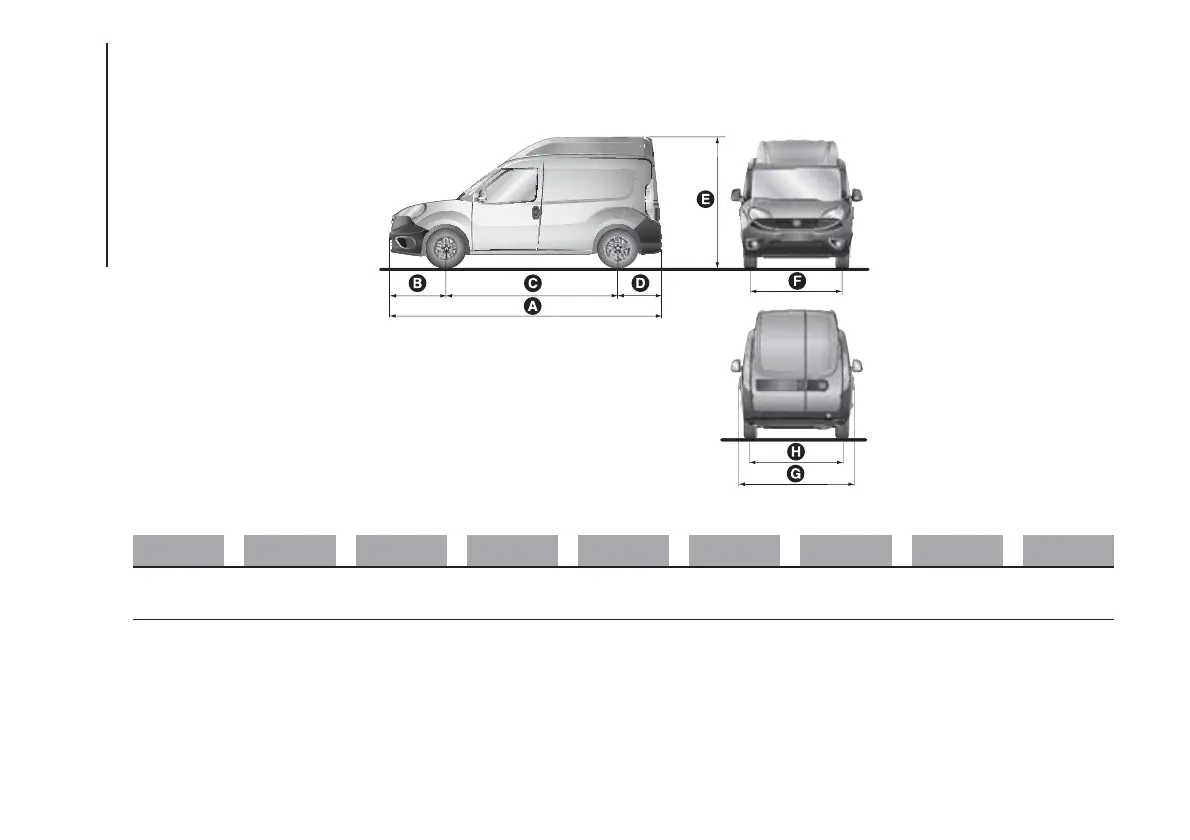

High roof versions

Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.

Height is measured with vehicle unladen.

ABCDEFGH

High Roof

versions

4406 911 2755 740

2115

(*) /

2125

(**)

1510 1765 1530

(*) Doblò versions

(**) Doblò Cargo versions

Small variations in size are possible depending on the dimensions of the rims.

231

F0V0557

216

TECHNICAL DATA
