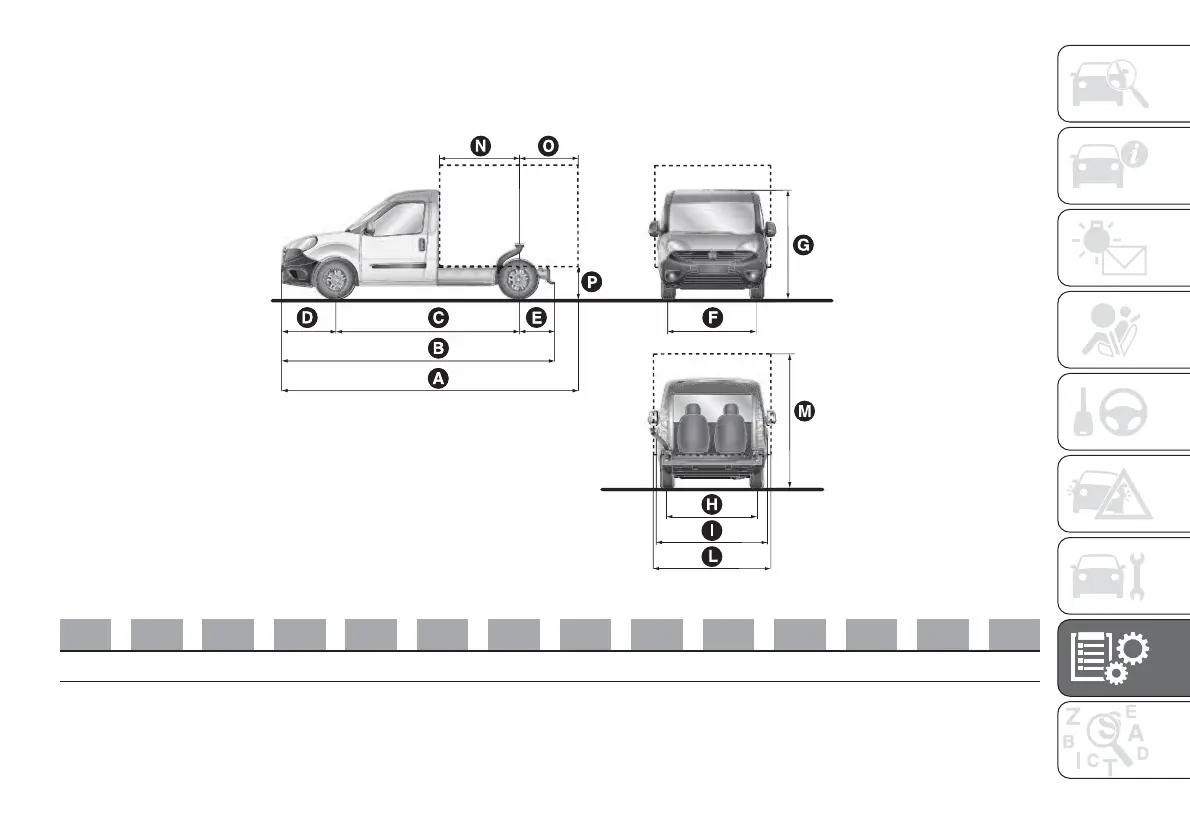

Flatbed short wheelbase versions

Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.

Height is measured with vehicle unladen.

ABCDEFGH I LMNOP

4906 4227 2755 911 561 1510 1845 1530 1789 1870 2405 1045 1240 600

Small variations in size are possible depending on the dimensions of the rims.

232

F0V0572

217
