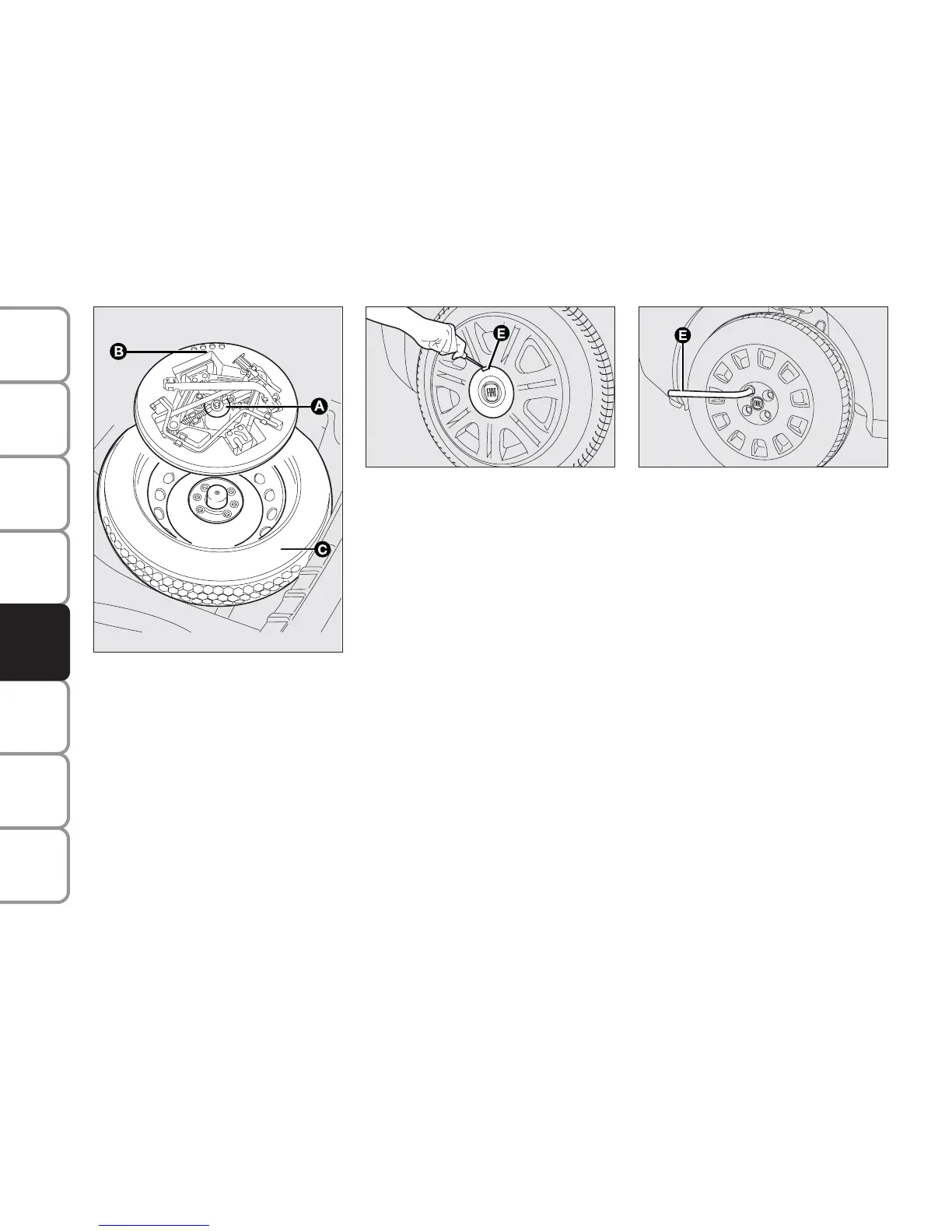

❒ for cars fitting alloy rims, remove the
hub cap using the screwdriver provi-
ded levering in groove E-fig. 12 as
shown in the figure;
❒ loosen the bolts of the wheel to be re-
placed by about one turn with the
wrench provided E-fig. 13; if the car
is fitted with alloy rims, shake the car
to facilitate removing the rim from the
wheel hub;
fig. 12
F0H0750m
❒ operate the device F-fig. 14 to ex-
pand the jack, until the groove G on
the upper part of the jack is correctly
inserted on the lower edge H of the
body at indication I(at approximately
60 cm from the front wheel centre or
80 cm from the rear wheel centre);
❒ warn anybody nearby that the car is
about to be lifted. They must stay clear
and not touch the car until it is back
on the ground;
❒ fit the handle L-fig. 14 to operate the
jack and lift the car until the wheel to
be changed is several centimetres off
the ground;
❒ for versions with wheel cap, remove
the wheel cap after loosening the th-
ree fastening bolts and finally loosen
the fourth bolt and extract the wheel;
❒ make sure the contact surfaces
between space saver spare wheel and
hub are clean so that the fastening
bolts will not come loose;
fig. 13
F0H0751m
❒ fit the space saver spare wheel making
the holes M-fig. 15 coincide with the
corresponding centring pins N;
❒ using the wrench provided, tighten the
fastening bolts;
❒ turn the jack handle L-fig. 14 to lower
the car and remove the jack;
❒ use the wrench provided to fasten the
bolts completely in a criss-cross fa-
shion as shown in figure.
fig. 11
F0H0161m
