DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.
There are several solutions for the central upper and lower console according to the chosen customisations: see the following fig-
ures.

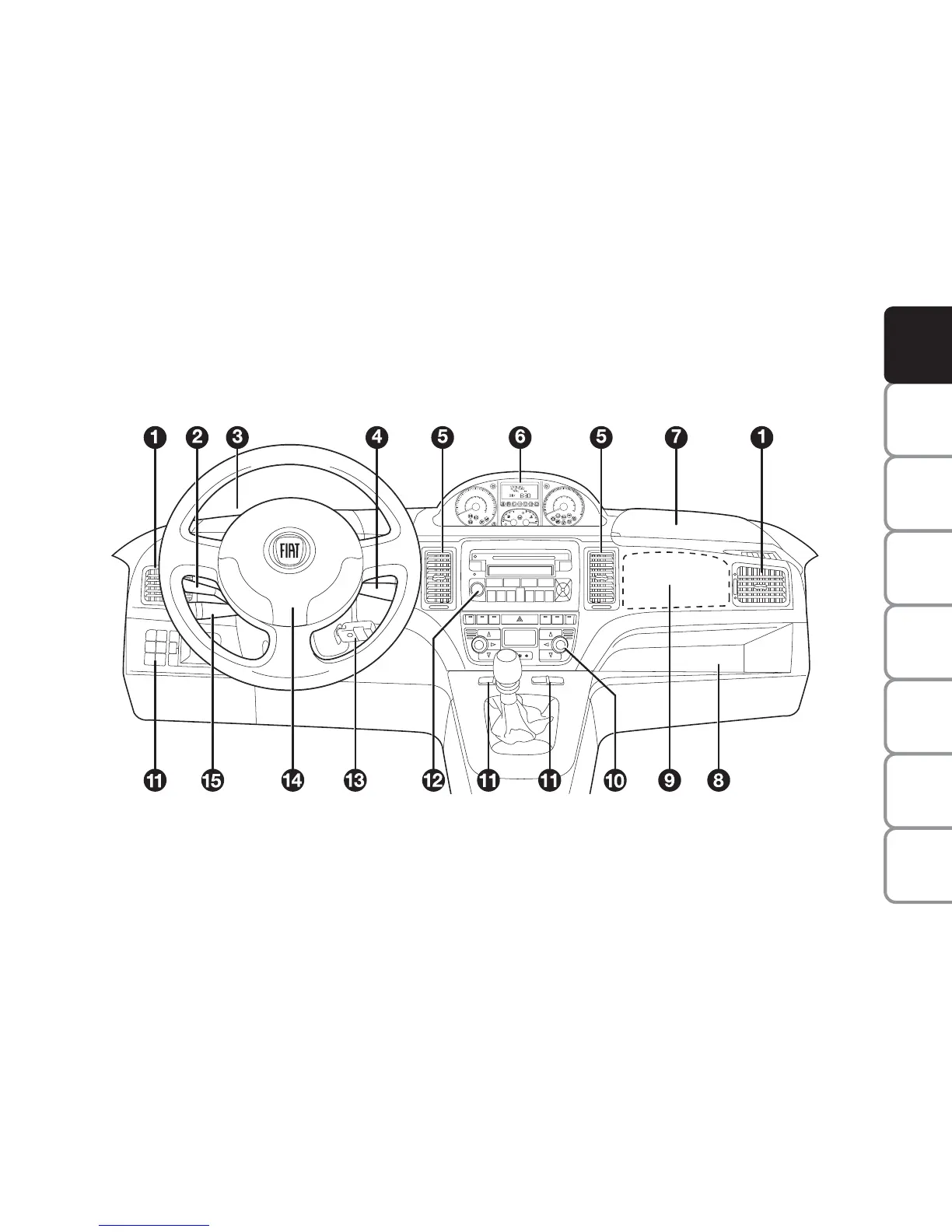

1. Side air vents - 2. Left stalk- 3. Left upper box - 4. Right stalk - 5. Central air vents - 6. Instrument panel - 7. Upper right box
containing passenger side airbag switch - 8. Oddment compartment 9 Passenger airbag - 10. HVAC controls - 11. Control buttons
12 Sound system (where provided) - 13. Ignition switch - 14. Driver airbag - 15. Cruise control (where provided).
