79-15054-00 Rev. C http://www.fiberstars.com Page 3 of 18
7
6
19
20
18
17
16
15
10
13
13
11
10
9
8
10
21
4
5
12
14
10
10
3
2
1

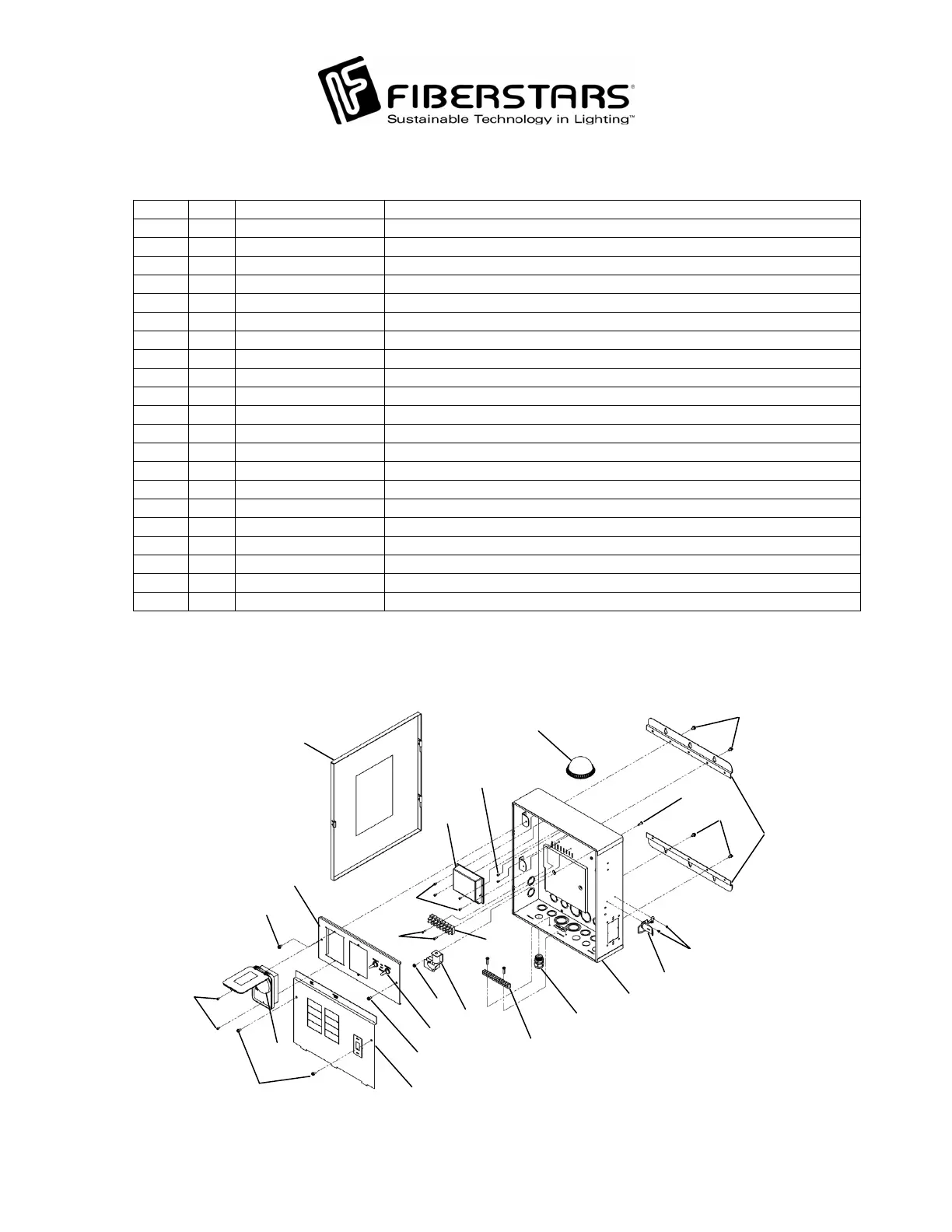

The WPC2 dual speed version consists of the following parts:
Item Qty. Component part No. Description
1 1 - WPC-2 Enclosure
2 1 94-15089-00 WPC-2 Enclosure Door
3 1 37-15001-00 DPDT Relay
4 1 41-15004-08 8 Position Terminal Block
5 1 42-15032-00 Timer
6 1 02-15269-00 Load Center Cover Plate
7 2 02-15267-00 WPC-2 Mounting Bracket
8 1 41-15003-00 Grounding Bar
9 1 94-15090-00 WPC Receiver
10 8 10-15086-04 Load Center Cover Plate, Switch Bracket, and Mounting Bracket Screws
11 2 10-15089-06 Terminal Block Mounting Screw
12 1 A7000 Relay Mounting Nut
13 8 10-15089-03 Timer and Receiver Mounting Screws
14 2 A11526 3-Position Toggle Switch
15 1 94-15092-00 WPC Repeater
16 2 10-15089-02 Freeze Device Mounting Screw (Optional equipment)
17 1 20-15013-00 Strain Relief
18 1 02-15270-00 Switch Bracket
19 1 17-15005-00 Latch
20 2 10-15089-01 Latch Mounting Screws
21 1 A8966 Relay Mounting Screw
