The WPC-3 is approved for use with the Intermatic
Metallic Hub Kit (156PA14336A) and Fiberstars
DL-HUB for direct connection of underwater lights.
Refer to 1999 NEC 680-21(b), 2002 NEC 680-24(b)
or CEC 68-060, 062 and 066 for details.
Hooking up Lights to Circuit 1 and Circuit 2

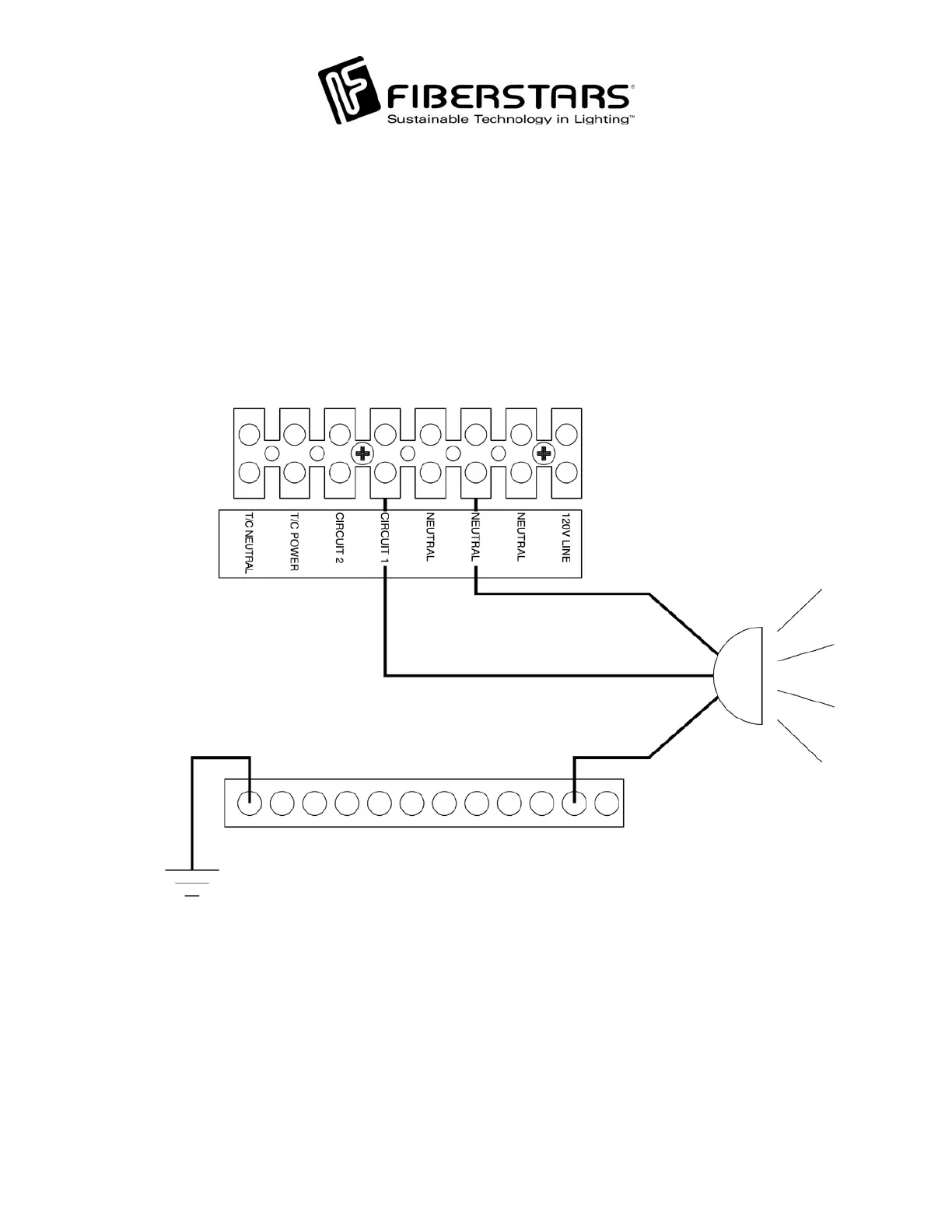

To connect a lighting product to the Circuit 1 and Circuit 2 switch, pull wires from the products
to the WPC-2 through conduits connected to the bottom of the WPC-2. As illustrated, connec
lights that will be operated by the Circuit 1 Switch to the Circuit 1 terminal. Connect the
eutral to the Terminal Block marked Neutral. Connect the Ground to the Equip. GND. bar.
Repeat for Circuit 2. Do not exceed 8Amps per circuit.
NOTE: Some models with optional equipment will have Circuit 1 or Circuit 2 or both Circuits
re-wired for other functions.
