79-15054-00 Rev. C http://www.fiberstars.com Page 8 of 18
C/W CONTROL
LIGHT CONTROL
EUTRAL
The WPC-3 is approved for use with the Intermatic Metallic Hub Kit
(156PA14336A) and Fiberstars DL-HUB for direct connection o
underwater lights. Refer to 1999 NEC 680-21(b), 2002 NEC 680-
24(b) or CEC 68-060, 062 and 066 for details.

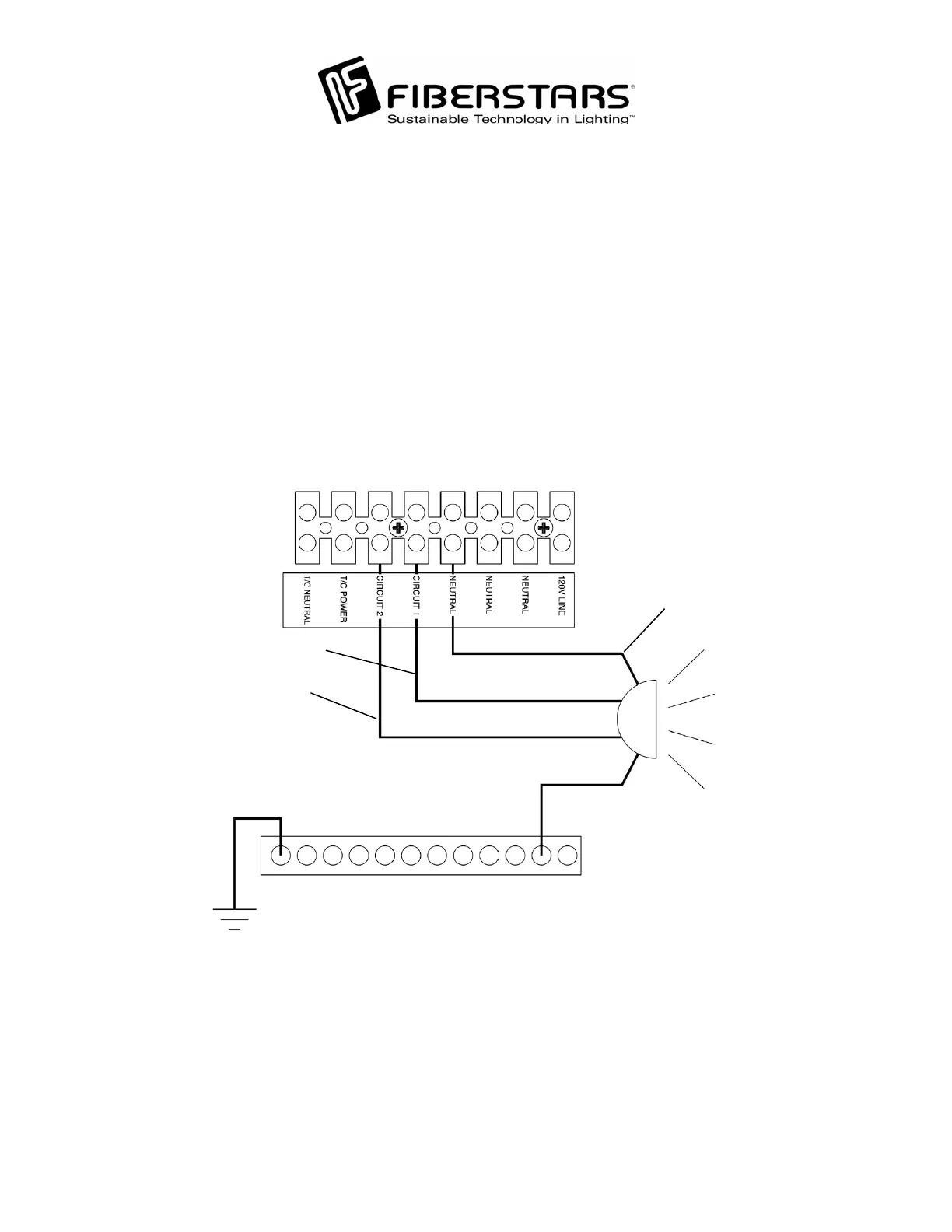

Connecting Jazz, Jazz-Spa, System 6004, and System 6004-AS*
For proper operation of these products both Circuit 1 and Circuit 2 must be wired so that the
ower is controlled through Circuit 1 and the color wheels functions are controlled through
Circuit 2. Follow each products installation manual for proper installation. Run appropriately
rated wires from the unit to the WPC-2 no less then 12 Gauge COPPER wires. Connect the
Power to the Circuit 1 terminal at one end and to the BLACK wire on the Fiberstars unit.
Connect the neutral to the NEUTRAL terminal in the WPC-2 and to the WHITE wire on the
Fiberstars unit. Connect the grounding cable to the EQUIP. GND. and on the other end to the
GREEN cable. Finally, for synchronization operation, connect the C/W CONTROL cable to the
Circuit 2 terminal and on the other end to the RED wire on the Fiberstars unit. You may connec
up to 8Amps of Fiberstars units to Circuit 1.
NOTE: Some models with optional equipment will have Circuit 2 or Circuit 1 or both Circuits
re-wired for other functions and therefore eliminates the ability for this type of wiring.
* Or other two button Power/Color system, i.e. Pentair, Supervision, Fiberworks…
