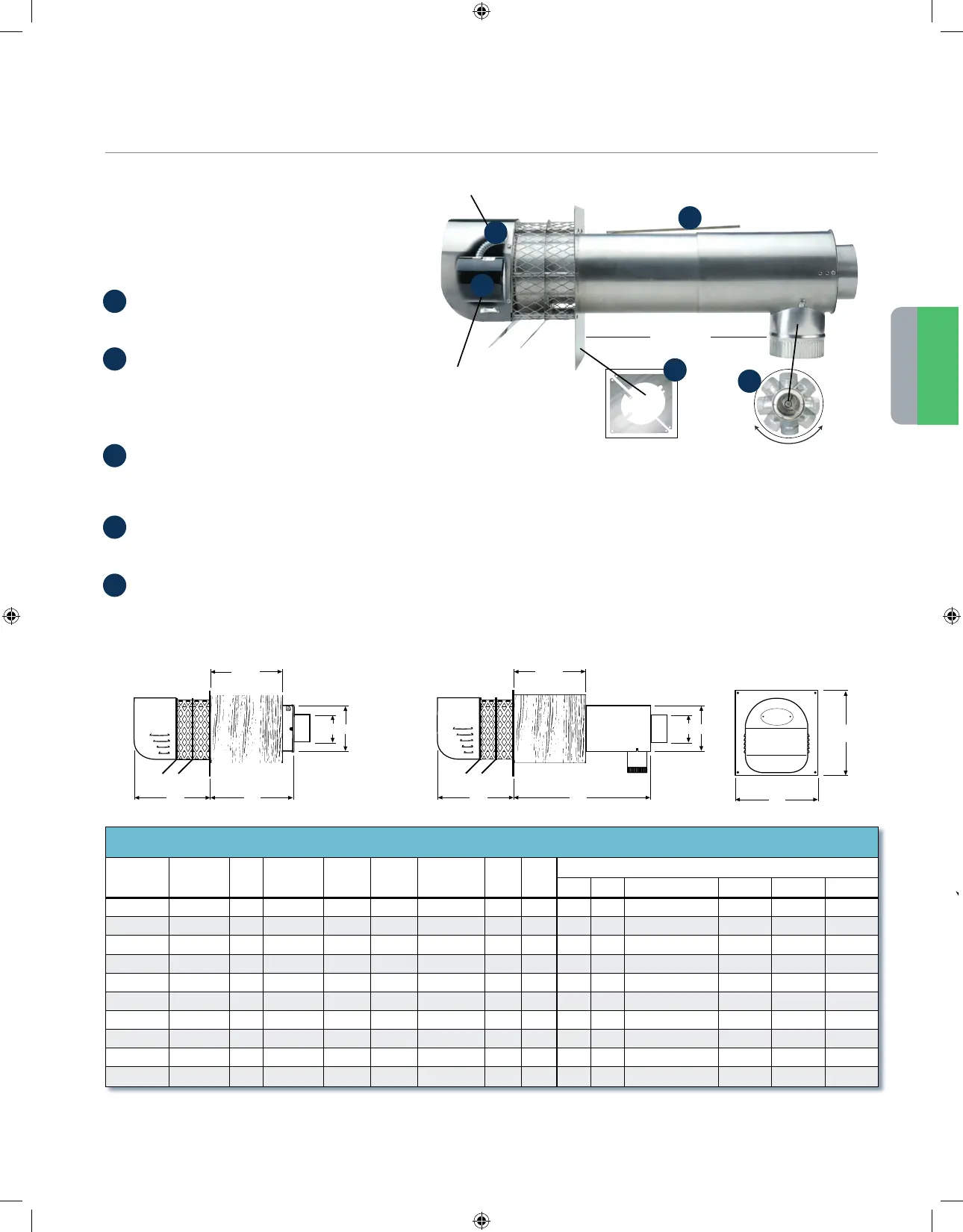

Field Controls SWG-3 - Combovent (CV)

Technical Service: 800.742.8368 • fieldcontrols.com 3
VENTING
COMBOVENT™ (CV)
D
E
A
B
F
WALL
C
Up to 8”
D
E
A
B
F
WALL
C
Up to 14"
A TOTAL SYSTEM FOR
COMBUSTION AIR
AND VENTING.
• When installing gas or oil furnaces, boilers, and water heaters.
• New construction.
• When converting from electric to gas or oil.
• To avoid relining a chimney.
• When installing an additional heating appliance.
• When co-venting with water heater or additional
appliance, can be used as a gas/oil combo single unit.
WHEN TO USE THE SWG/CV POWER VENTER:
POWER VENTER SPECIFICATIONS AND DIMENSIONS
MODEL VOLTS HZ AMPS WATTS RPM
THERMAL
PROTECTION
ETL
LISTED
CSA
LISTED
DIMENSIONS
A B C D E F
SWG3
115 60 0.6 40 3000
✓ ✓
3" 5" 9
1
/16" 8
1
/2" 7
5
/8" 9
3
/16"
SWG4HD
115 60 1.7 13 8 3000
✓ ✓
4" 6" 9
1
/4" 9
1
/2" 9" 9"
SWG4HDS
115 60 1.7 13 8 3000
✓ ✓ ✓
4" 6" 9
1
/4" 9
1
/2" 11 " 11
1
/2"
SWG5
115 60 1.3 144 310 0
✓ ✓
5" 7" 9
7
/32" 10
3
/4" 12 " 12
1
/4"
SWG5S
115 60 1.3 144 310 0
✓ ✓ ✓
5" 7" 9
7
/32" 10
1
/2" 12 " 12
1
/2"
SWG6
115 60 2.1 228 310 0
✓ ✓
6" 8" 9
7
/32" 10
3
/4" 12 " 12
1
/4"
SWG6S
115 60 2.1 228 310 0
✓ ✓ ✓
6" 8" 9
7
/32" 10
1
/2" 12 " 12
1
/2"
SWG8
115 60 4.37 478 310 0
✓ ✓
8" 10" 9
7
/32" 11
7
/8" 13 " 14
1
/4"
CV4
115 60 1.7 13 8 3000
✓ ✓ ✓
4" 6" 11
3
/4"-17
3
/4" 9
1
/2" 9" 9"
CV5
115 60 1.3 144 310 0
✓ ✓ ✓
5" 7" 11
3
/4"-17
3
/4" 10
3
/4" 12 " 12
1
/4"
“S” DESIGNATES STAINLESS STEEL MODEL.
Up to14"
Stainless Steel
Telescoping stainless steel body
accommodates walls up to 14" thick
Quick-connect
electrical coupling
Slotted hood with
larger screws
Two-piece backing plate Coupler
CVSWG
POWER VENTER
• Telescoping stainless steel body
• Accommodates walls up to 14" thick
• Combustion air connection included
• Provides fresh air directly to burner
• Coupler rotates 360° for easy installation
with CAS boot
• Two-piece backing plate
• Can be mounted at any point during installation
• Slotted hood with larger screws
• Saves time during annual service
• Quick-connect electrical coupling
• Allows for easy motor access
D
E
C
B
Features
Easier to Service
A
A
B
C
D
E
