Field Controls SWG-3 - Control Kits

Technical Service: 800.742.8368 • fieldcontrols.com 7
VENTING
* CONTROL KITS ARE ETL APPROVED ACCESSORIES WHEN USED IN CONJUNCTION WITH THE SWG POWER VENTER.
** PLUGS INTO 24V ELECTRIC DAMPER.
*** A SECONDARY SAFETY SWITCH SHOULD BE USED WITH A CK81.
F = FIXED POST PURGE. FV= RIGHT HAND THREADED TCA SAFETY SWITCH.
CK-63 remote mounted. For use with 120V or 24V
oil or gas systems. Electronic post purge is included
(shown with cover off).
CONTROL KIT INSTALLATION
Control Kit*
Control Kits (CK) control the operation of SWG/CV
Power Venters. See the chart below to select the proper
kit for your application. Control Kits can also control the
operation of Field Draft Inducers.
NOTE: CK kits can be mounted up to 100 feet from venter.
REQUIRED TO OPERATE SWG/CV POWER VENTERS
CONTROL KITS

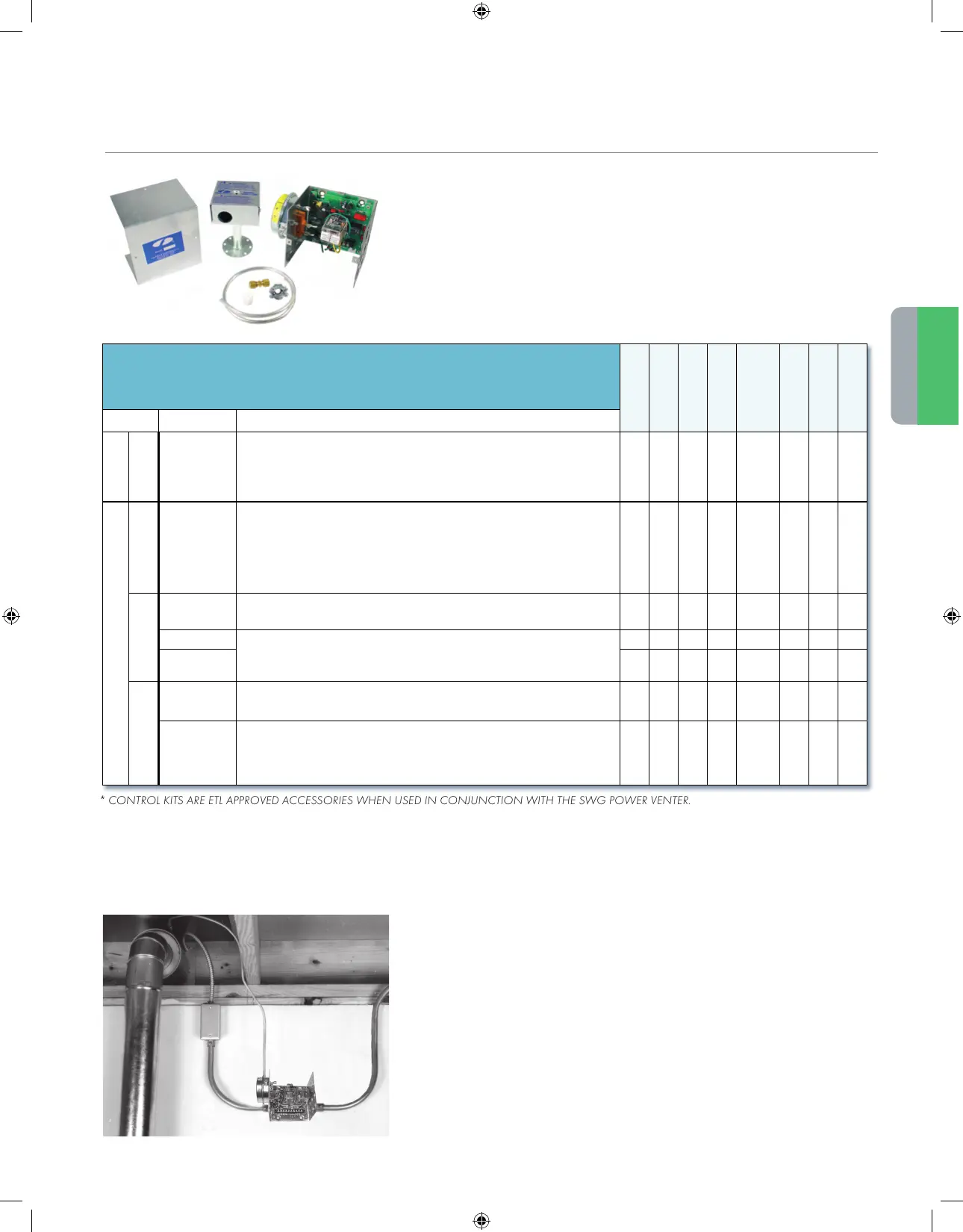

SELECTING THE PROPER CONTROL KIT
Draft Proving Switch Gas Pressure Switch Secondary Safety Switch Thermal Post Purge Adjustable Electronic Post Purge Fixed Post Purge Draft Control RJR-6
MODEL APPLICATIONS
OIL
CK63
OILFIRED SYSTEMS. (MAY REQUIRE OPTIONAL DELAY
OIL VALVE FOR SIMULTANEOUS BURNER OPERATION.)
✓ ✓ ✓
GAS
750mv & 30mv
CK20FV
30/750 MILLIVOLT GASFIRED WATER HEATERS AND GASFIRED POOL OR
SPA HEATERS WITH A MANUAL OR INTERNALLY MOUNTED THERMOSTAT.
✓ ✓ ✓
24 v
CK41F
CK41P**
FURNACES, BOILERS, UNIT HEATERS, AND WATER HEATERS OPERATING WITH
A 24 VAC GAS VALVE WITHOUT FACTORYMOUNTED SPILLAGE SWITCHES.
✓ ✓ ✓
CK43
DRAFT INDUCED 24 VAC GAS VALVE SYSTEMS. INCLUDES
A 4" MG1 DRAFT CONTROL AND POST PURGE.
✓ ✓ ✓
CK43F
✓ ✓ ✓
Co-venting Multiple
Appliances
CK91FV
GASFIRED DRAFT INDUCED 24 VAC GAS VALVE SYSTEMS AND A 30 MILLIVOLT
OPERATED WATER HEATER. INCLUDES A 4" MG1 DRAFT CONTROL AND
POST PURGE.
✓ ✓ ✓ ✓ ✓
CK92FV
CK92FVP**
GASFIRED FURNACE OR BOILER AND A 30 MILLIVOLT
OPERATED WATER HEATER. INCLUDES POST PURGE.
✓ ✓ ✓ ✓
