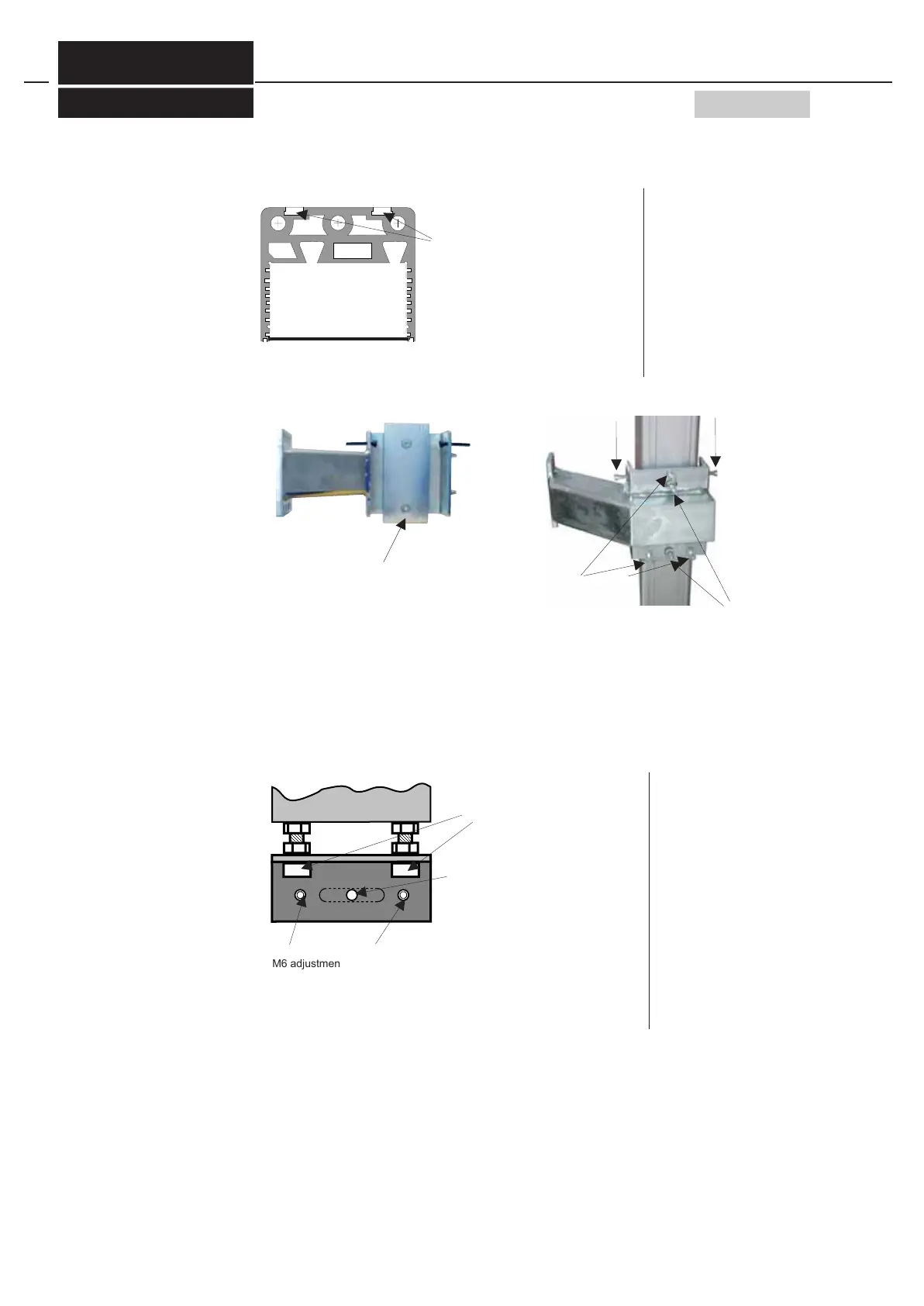

a) Support with tenon blocks at the rear
b) Support with fastening angles at the upper and lower side (as option)
Mounting
Mounting of the holders at the ram
4. Mounting of the AKAS®
on the holders
a) AKAS®-3...
Fiessler holder
Mounting on self-supplied holders
5
5.5
M6 adjustment screws with lock-
nuts for pivoting around the longi-
tudinal axis
upper fastening angle:
Boring 8,1 mm for fastening
lower fastening angle:
slot for pivoting around the lateral axis
and for fastening.
The M8 fastening screws must be
equipped with washers.
screws with locknuts for height fine
adjustment
To guarantee a trouble-free operation,
the supports of both the receiver and the
transmitter must be fixed at solid, defor-
mation-free plane-parallel constructions
at the ram.
The adjustment screws must be easily
accessible. Wihen pivoting around the
longitudinal axis, the locknuts of the lo-
wer M 10 screw at the angle bracket
should be unscrewed, the other M10
locknuts must be tightened.
Pay attention to avoid any deformation
of the profile. By unscrewing the M10
screws, fine height adjustment is ena-
bled.
Fig. 17/ 5
2 M5 s liding tenon blocks are loca-
ted in each groove for fastening
The adjustment is made with the
help of the holders.
Remove the fastening plate from the
Fiessler holder and tighly fasten it by
using the tenon blocks at the AKAS®.
Choose a mounting position according to
the directions given in chapter 5.7 Ad-
justment of the AKAS® during first
installation.
Pay attention to avoid any deformation
of the profile.
Fig. 17/ 1
up: B
down: C
up: A
down: C
Fig. 17/ 4
Fiessler holder front view fig. 17/2
Fiessler holder rear view fig. 17/3
fastening plate
M6 adjustment screws for swive-
ling around the lateral axis
M6 adjustment screws
for swiveling around the
longitudinal axis
M8 fastening screws
D
E
C
A
B
-AKAS®-3...
FIESSLER
E L E K T R O N I K
Doku Nr. 1379 Stand 27.1.2017 /Aui
