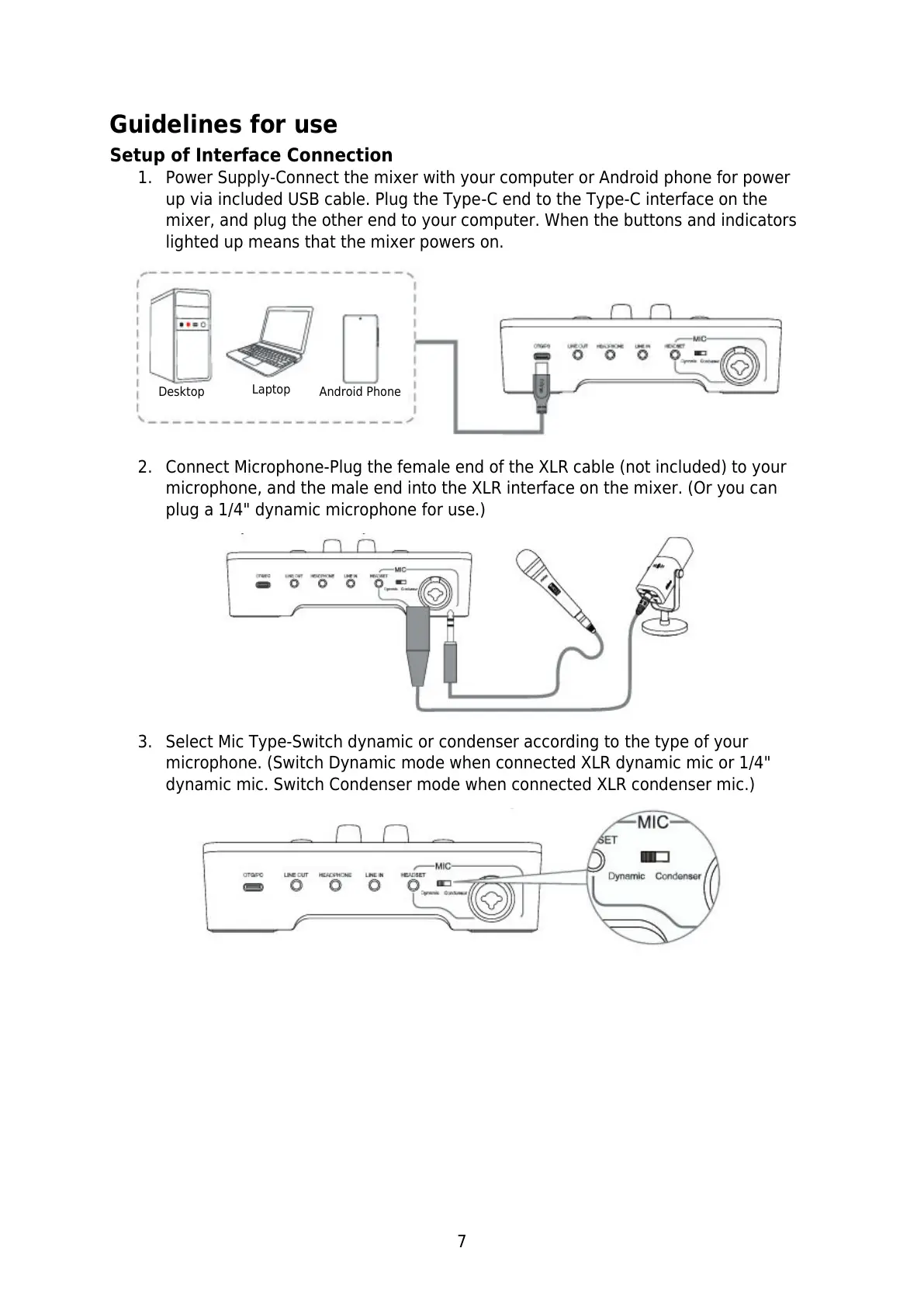

Guidelines for use
Setup of Interface Connection
1. Power Supply-Connect the mixer with your computer or Android phone for power
up via included USB cable. Plug the Type-C end to the Type-C interface on the
mixer, and plug the other end to your computer. When the buttons and indicators
lighted up means that the mixer powers on.
2. Connect Microphone-Plug the female end of the XLR cable (not included) to your
microphone, and the male end into the XLR interface on the mixer. (Or you can
plug a 1/4" dynamic microphone for use.)
3. Select Mic Type-Switch dynamic or condenser according to the type of your
microphone. (Switch Dynamic mode when connected XLR dynamic mic or 1/4"
dynamic mic. Switch Condenser mode when connected XLR condenser mic.)
