INSTALLATION AND OPERATION MANUAL
| 900CD DIGITAL METER
To insure safe and proper operation of your equipment, it is critical to read and adhere to
all of the following safety warnings and precautions. Improper installation or use of this
product can cause serious bodily injury or death!
1. NEVER smoke near the meter, or use the meter near open flames when metering a
flammable liquid! Fire can result!
2. A “Fill-Rite” Filter should be used on the meter outlet to insure no foreign material is
transferred to the fuel tank.
3. Threaded pipe joints and connections should be sealed with the appropriate sealant or
sealant tape to minimize the possibility of leaks.
4. Storage tanks should be securely anchored to prevent shifting or tipping when full or
empty.
5. To minimize static electricity build up, use only static wire conductive hose when mete-
ring flammable fluids, and keep the fill nozzle in contact with the container being filled
during the filling process.
6. DO NOT exceed 50 psi/ 3.5 BARS line pressure.
7. DO NOT install additional foot valve or check valve without a pressure relief valve;
cracking may result.
WARNING

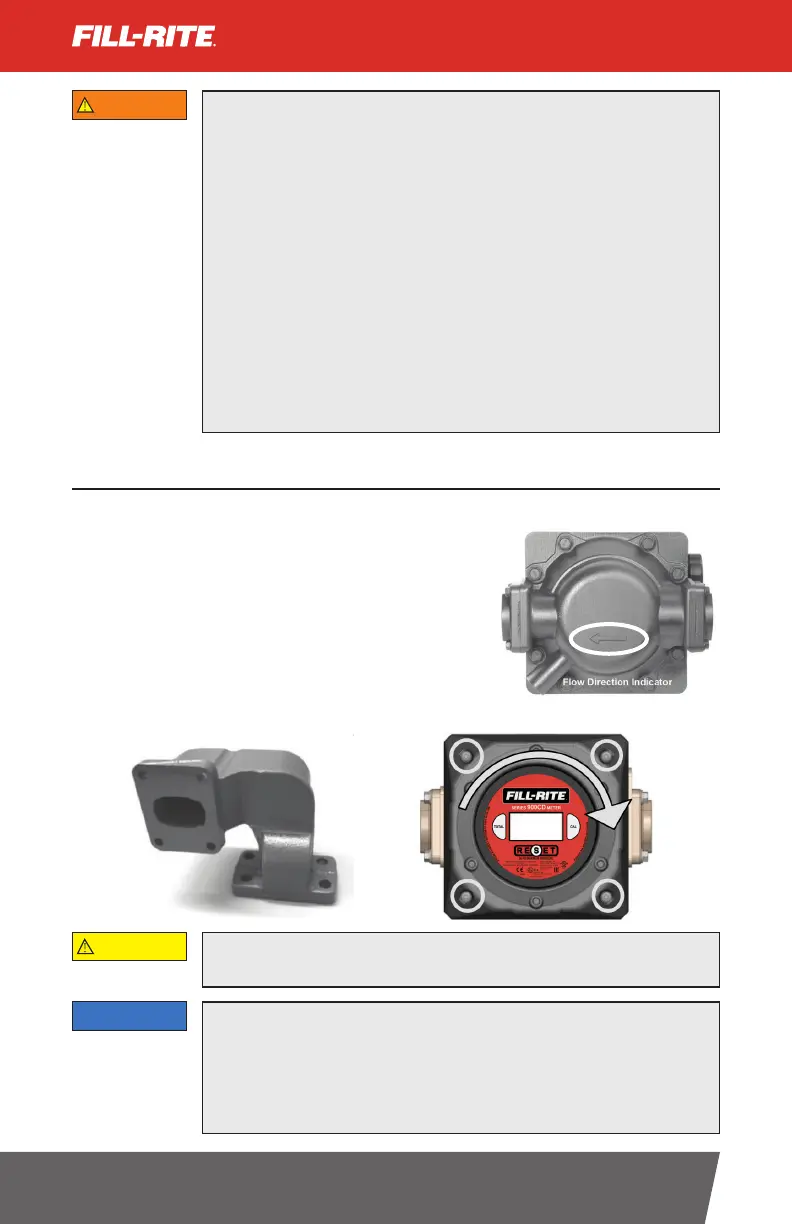

Installation
Meters are furnished for horizontal piping; left to right flow.
Flow ports can be changed to any of four positions for horizontal or vertical
piping and for either direction of flow.
1. Determine direction for fluid to flow.
2. Install meter observing directional arrow on casting on back of
meter (circled). Liquid MUST flow in the direction of the arrow for
proper operation.
3. Remove four screws on corners of meter face (Torx T25 bit required).
4. Rotate meter face assembly to desired orientation.
5. Replace four screws.
6. Complete installation by making sure the joints are properly sealed
and meter is positioned for easy viewing and use.
Threaded pipe joints and connections should be sealed with the appropriate sealant or
sealant tape to minimize the possibility of leaks.
CAUTION
If you have purchased this meter as part of a “Kit”, the meter flange base is drilled
with 4 holes. This allows the meter to be used with 300 and 700 series pumps. Line the
meter bracket up for installation and insert the bolts in the two holes that align with
the corresponding holes on the pump outlet. Once the meter bracket is bolted securely
in place install the two plugs in the holes that were not used to prevent moisture from
entering them.
NOTICE
