INSTALLATION AND OPERATION MANUAL
| 900CD DIGITAL METER

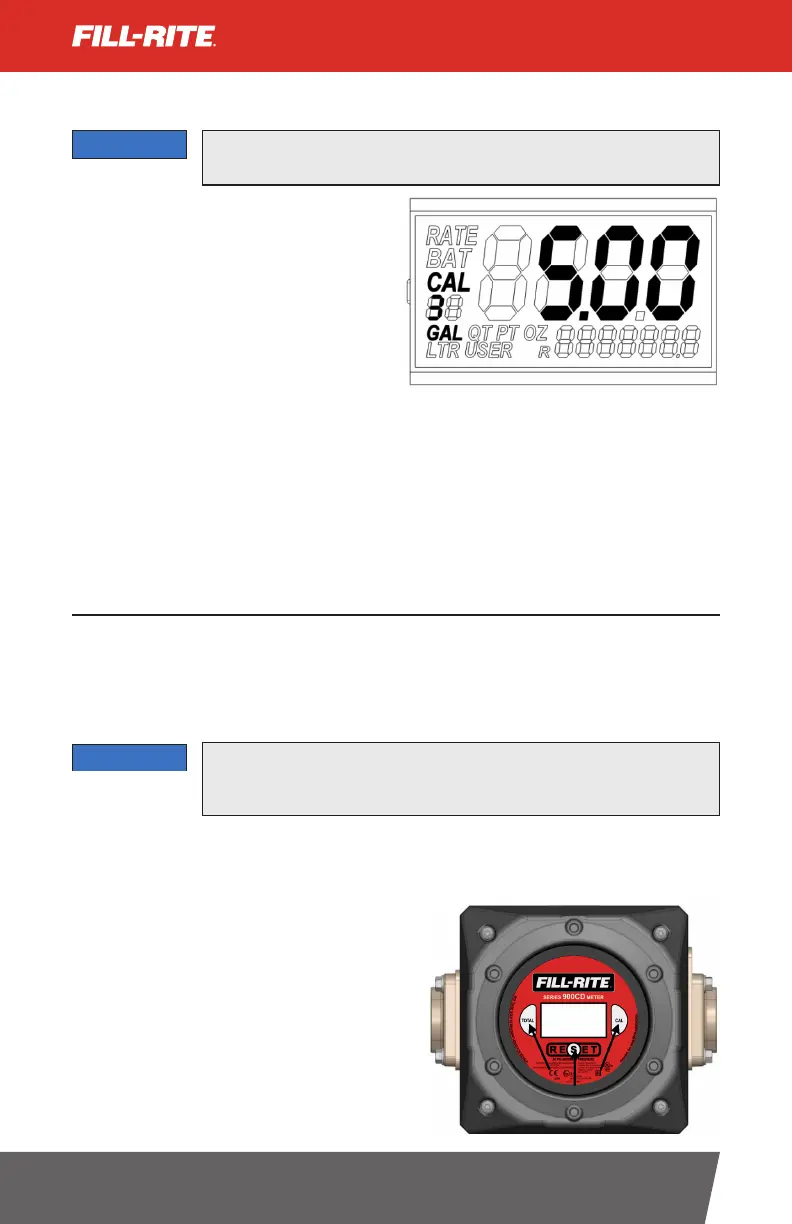

14. The left-most digit will begin blinking.
15. Use the TOTAL button to scroll from 0 to 9 until
the desired number has been selected.
16. Press and release the CAL button to move to the
next digit.
17. Repeat Steps 3 - 4 until the amount of dispensed
uid has been entered.
18. If you make a mistake entering a digit, press and
release the CAL button repeatedly until the digit is
active again.
19. Press and hold the CAL button for 2 seconds to complete the calibration process regardless of the current
digit selected.
20. If at the last digit and the CAL button is pressed for less than 2 seconds, the process should roll back to the
left-most digit, but retain the current value. This allows the user to edit an incorrect value.
21. An error check for gross calibration errors (+/- 15%) will be performed unless USER units are selected. If an
error is detected, the meter will display Err0 until a button is pressed and the calibration process is aborted.
22. If the meter is left untouched for 2 minutes or the RESET button is pressed, the unit will automatically exit
Calibration Mode and ignore any changes.
Operation Instructions
For accurate measurement and to prevent meter damage, dispenser and piping must always be filled with liquid and be
free of air. The meter portion of your dispenser should be calibrated per instructions in this manual prior to its use.
The Fill-Rite 900 Series Digital Meter face incorporates three buttons that control all the operation and calibration functions.
To turn the display on, or wake the meter from “Sleep” mode, simply press any button on the face. The display will turn on
and you can proceed with the function you desire. Dispensing fluid will also turn the meter display on.
13. Pressing and holding the CAL button for 2 seconds before dispensing into a container will cause the meter to
skip a fill operation and only change the unit of measure.
For maximum accuracy, try to get as close as possible to the dispensed volume without
changing flow rate.
NOTICE
• The last count and selected totalizer is retained and displayed when the meter is turned on.
• Pressing and releasing the TOTAL button will switch between the resettable and non-resettable totalizers.
(The R icon will be displayed when the resettable total is displayed).
• Pressing and holding the RESET button for 2 seconds
will reset the counter.
• Pressing and holding the RESET button and TOTAL
buttons for 2 seconds will reset the totalizer. The
resettable totalizer must be active in order to reset it.
• Pressing and holding the RESET button and CAL
buttons for 2 seconds will display the software version
for 2 seconds and then perform a segment check for 3
seconds, and then restore the display.
• Pressing and holding the CAL button for 5 seconds will
place the meter into a Deep Sleep mode. Pressing any
button twice will bring the meter out of deep sleep mode.
When the meter is in the “Deep Sleep” mode, dispensing fluid will NOT turn the meter on.
The meter will not display or accumulate any fluid that is dispensed while in
“Deep Sleep” mode.
