fillrite.com
6
INSTALLATION AND OPERATION MANUAL
| 900CD DIGITAL METER
• After 30 seconds of inactivity, the display will blank to conserve battery power.
• If the meter is connected to the external power source, the display will not blank unless forced into deep sleep mode.
• If external power is removed, the meter will revert to battery only operating characteristics and vice-versa.
• The counter and totalizer 2 can be reset even if fluid flow is detected. The meter will continue counting
during the 2 second RESET button press, then reset to 0, then resume counting.
“Deep Sleep” mode is designed to maintain a status of operational readiness while offering
battery conservation. The meter should be placed in this mode when:
• Flushing the unit so the dispensed volume is not counted.
• Traveling over rough surfaces (off-road) where fluid is being jostled and you
don’t want volume from the motion to be counted.
• Extending battery life; there is no penalty for repeatedly placing it in deep sleep.
NOTICE

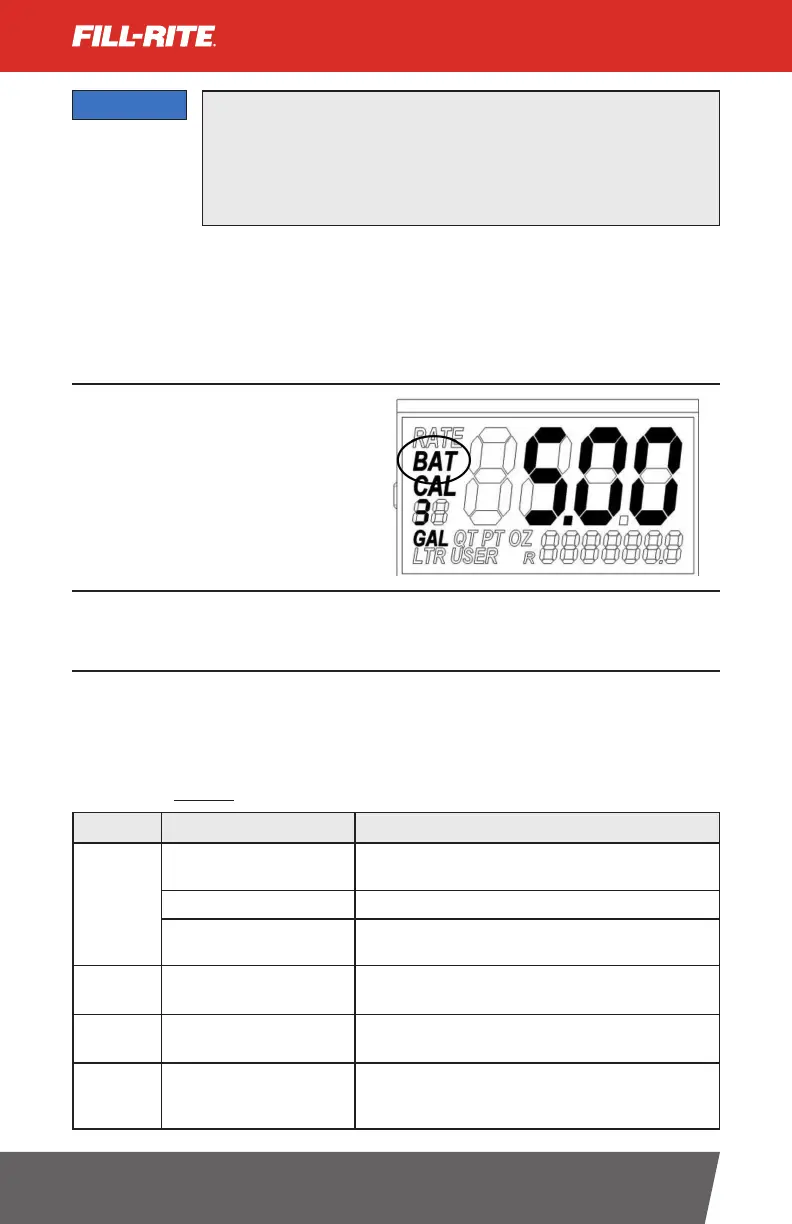

Low Battery Warning
The digital display includes a “Low Battery” warning
indicator. When the battery reaches a level low enough
to require replacement, the display will show “BAT” as a
reminder to change the battery. When necessary, replace
batteries per procedure on page 7.
Concern Possible Concern Recommended Repair
Counter
inaccurate
Meter miscalibrated Check calibration and recalibrate as necessary (directions on
page 4).
Air in lines or metering chamber Check line seals and joints for leakage; seal leaks appropriately.
Measuring gears or disc
are sticking
Clean or replace internal metering components as necessary.
Low flow
capacity
Clogged meter chamber Clean meter chamber; clean or replace screens and filters
in piping.
Meter body
cracks
Excess line pressure Install pressure relief valve to allow high pressure to bleed
back to the tank. Replace meter.
Nutating
Disc Broken
Sudden high pressure fluid
hitting disc
Avoid surge flows by installing a shut-off valve on outlet of
meter; install meter as close to the pump as possible, keep
piping full of liquid. Replace meter chamber assembly.
Storage
If your meter is to be stored for a period of time, clean it thoroughly. This will help protect the meter from possible damage.
Troubleshooting Guide
The following Troubleshooting Guide is designed to help you with basic digital diagnostics and repairs if you should
encounter abnormal service from your 900 Series Meter. We recommend you use only genuine Fill-Rite parts.
These parts, and additional service information is available through your authorized Fill-Rite dealer.
Further troubleshooting information can be found in your pump manual. If you need additional assistance, please
contact our Technical Support at 1 (800) 720-5192 or via email at FillRiteTech@fillrite.com (M-F, 8 AM – 5 PM ET).
You can also visit fillrite.com.
