10 - ELECTRONIC MANAGEMENT
LCD CONTROL UNIT
Basic functions
• Delivery piloted by a pressure switch or with a tap with button
• Pump protection with a minimum pressure switch
• Flushing after each delivery
• Anti-residue every 6 hours
• Filter management based on time and litres delivered
• Detection of leaks and water ow obstructions on the machine
• Lock after 15 minutes of continuous delivery
• Conguration via dip switch

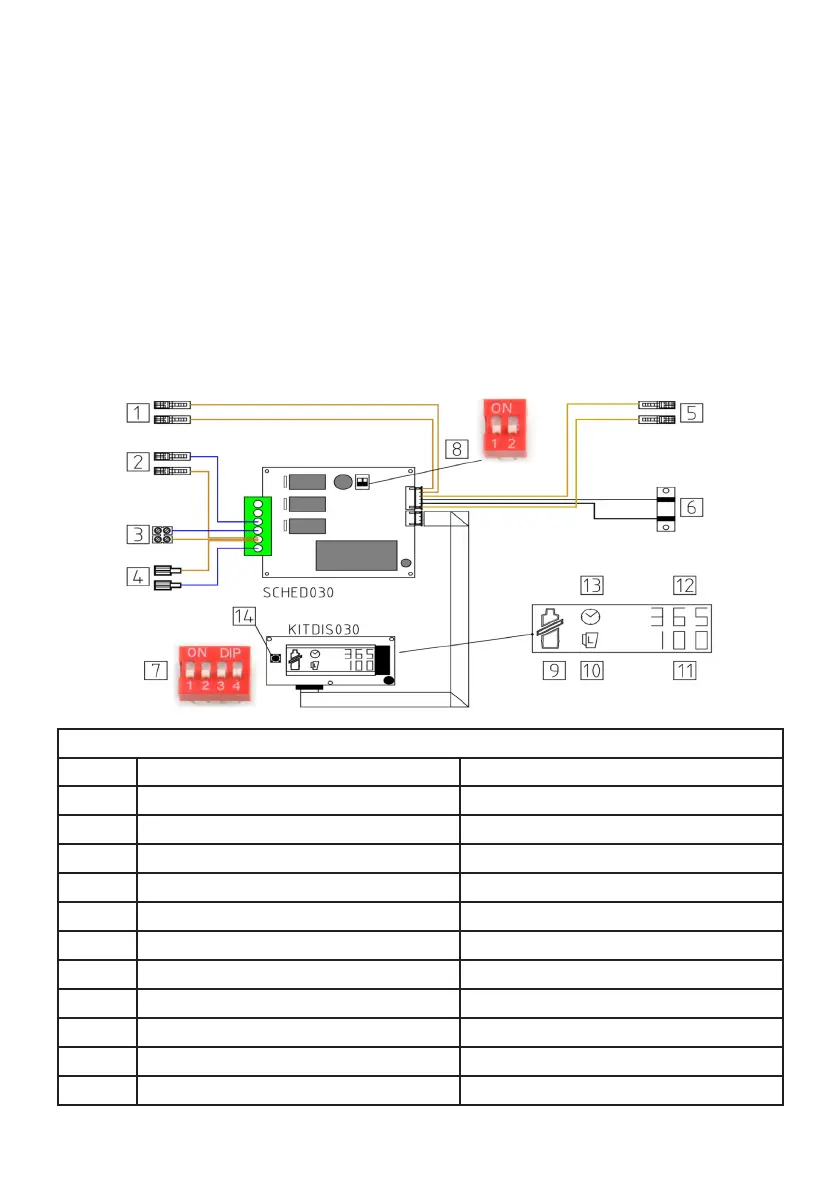

LEGEND
Num. Position / connection Description
1 Minimum pressure switch Brown cables with faston 6.3
2 Solenoid valve Brown / blue cables with faston 6.3m
3 Pump motor connection Brown / blue cables with terminal board
4 220Vac power supply connection Brown/blue cable with faston 4.8m
5 Maximum pressure switch connection Yellow cables with faston 6.3m
6 Anti-flooding
White / black cables with welded sensor
7 Display board Configuration dip switch
8 Power board Configuration dip switch
9 LCD Icon - Exhausted filter
10 LCD Icon - Water delivery
11 LCD
Icon - Litres until filter change (in %)
