Page 4
• A phillips head screwdriver is required for this step

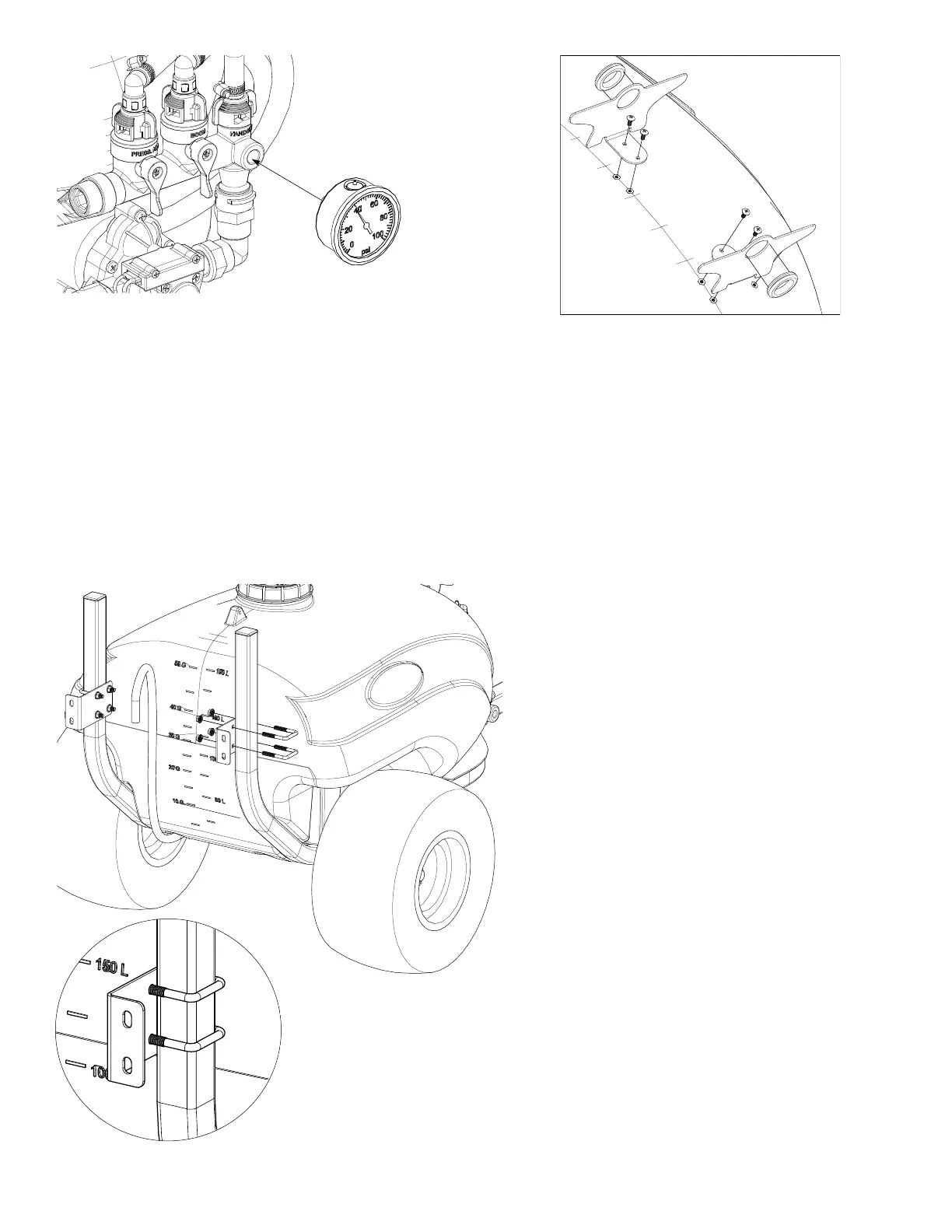

Locate the (4) #10 x 1/2” screws, (2) hose wraps and
(2) rubber grommets.
Insert the rubber grommets into the hose wraps. Place a
screw through the holes in the hose wrap and bring it up to
the tank. Secure the holders in place.
**Do Not Over-Tighten**
Wrap the hose and slip in the handgun.
Install the pressure gauge. Hand tighten securely.
** DO NOT OVER-TIGHTEN **
Step 4
Step 6
Locate the (2) boom mount brackets, (4) 5/16”-18 x
9/16” x 2-3/16” square u-bolts and (8) 5/16”-18 hex
whiz nuts.
Mount the boom mount brackets on the upright boom
arms as shown.
You can position them as needed, just be sure that
they are even with each other.
To Next Page
