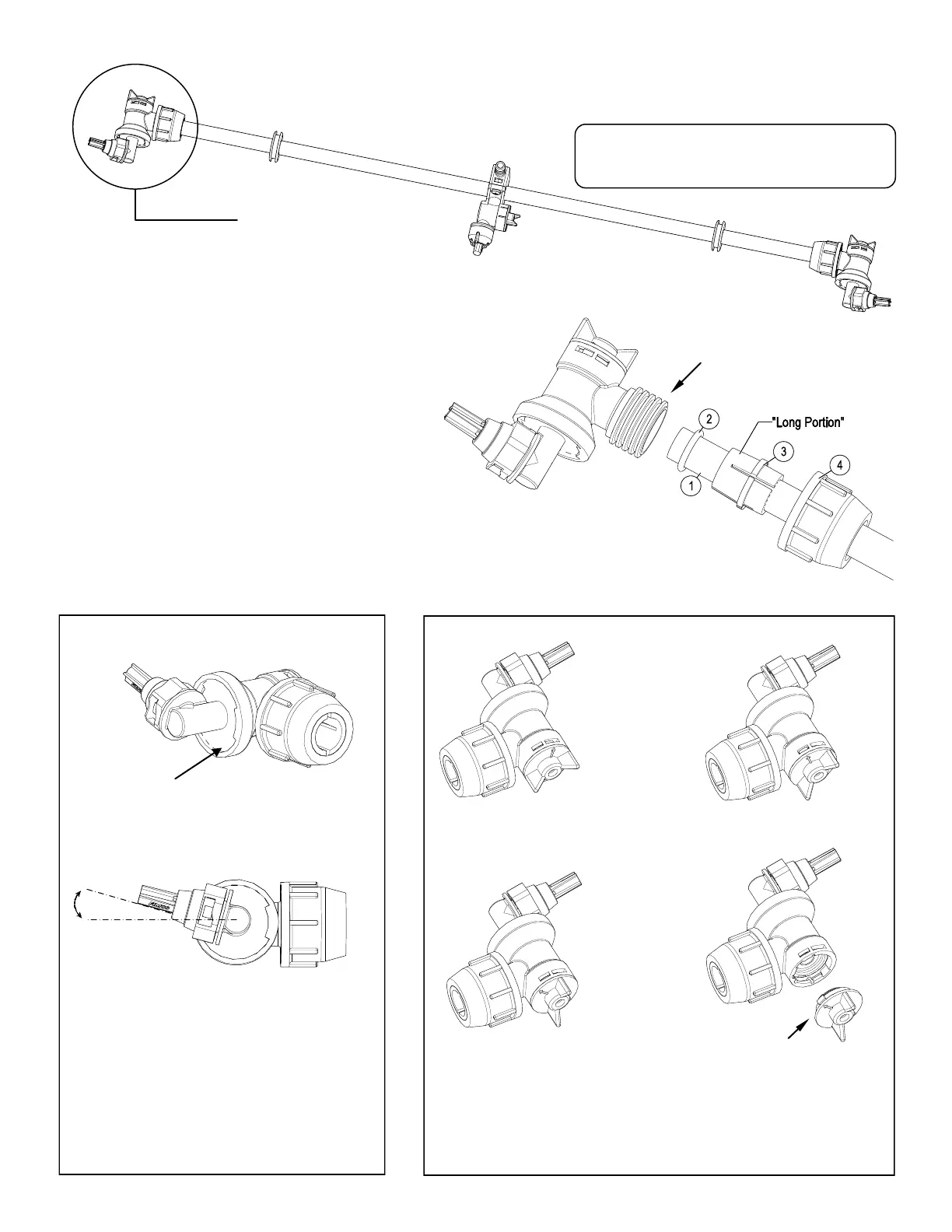

End Nozzle Assembly Procedure
For Boomless “Wet” Boom
Your boom will come with the (2) end nozzle assemblies
NOT affixed to your boom tube. Follow the instructions
below to attach these properly to the boom tube, as
shown.
Assembled
End Nozzle
1. Start by sliding Item 4, 3, 2 onto the boom tube
(Item 1) as shown, leaving about 1/2” to 3/4”
between the end of the boom tube and Item 2.
Make sure the “Long” portion of Item 3 is facing the
nozzle end.
2. Slide the (complete) end nozzle assembly onto the
stainless steel boom tube, with a somewhat
“twisting” motion, so that the end face of the boom
tube “butts” up against the surface face inside the
nozzle body.
3. Now push the “compression olive” (Item 3) against
O-ring (Item 2) and slide (both) into the nozzle
body opening firmly.
4. Firmly tighten flynut (Item 4) onto threads of
nozzle body.
Repeat for other side.
NOTE: If water is shooting back on the boom tube,
item 2 is not in the correct placement.
15°
End Nozzle Informaon
(5275122)
This nozzle mounng stem
Has a ratcheng moon.
** Each “click” of the ratcheng moon is approx. 15° **
For proper/opmal spray coverage,
The nozzle must be at a 15° angle
The 15° angle shown will prevent the outer
Nozzles from overlapping with the center nozzle.
“On/O” Valve Posions
Valve “Open” Valve “Closed”
Service Posion On/O Valve Knob
Eliminate line pressure, then pull out
to check diaphragm condion.
Note: The check valve & diaphragm can fall out during transport, if the
knob is not turned to the “ON” or “OFF” posion.
Item 2 is shipped inside of
the end nozzle assembly.
Remove & place on tube.
