WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

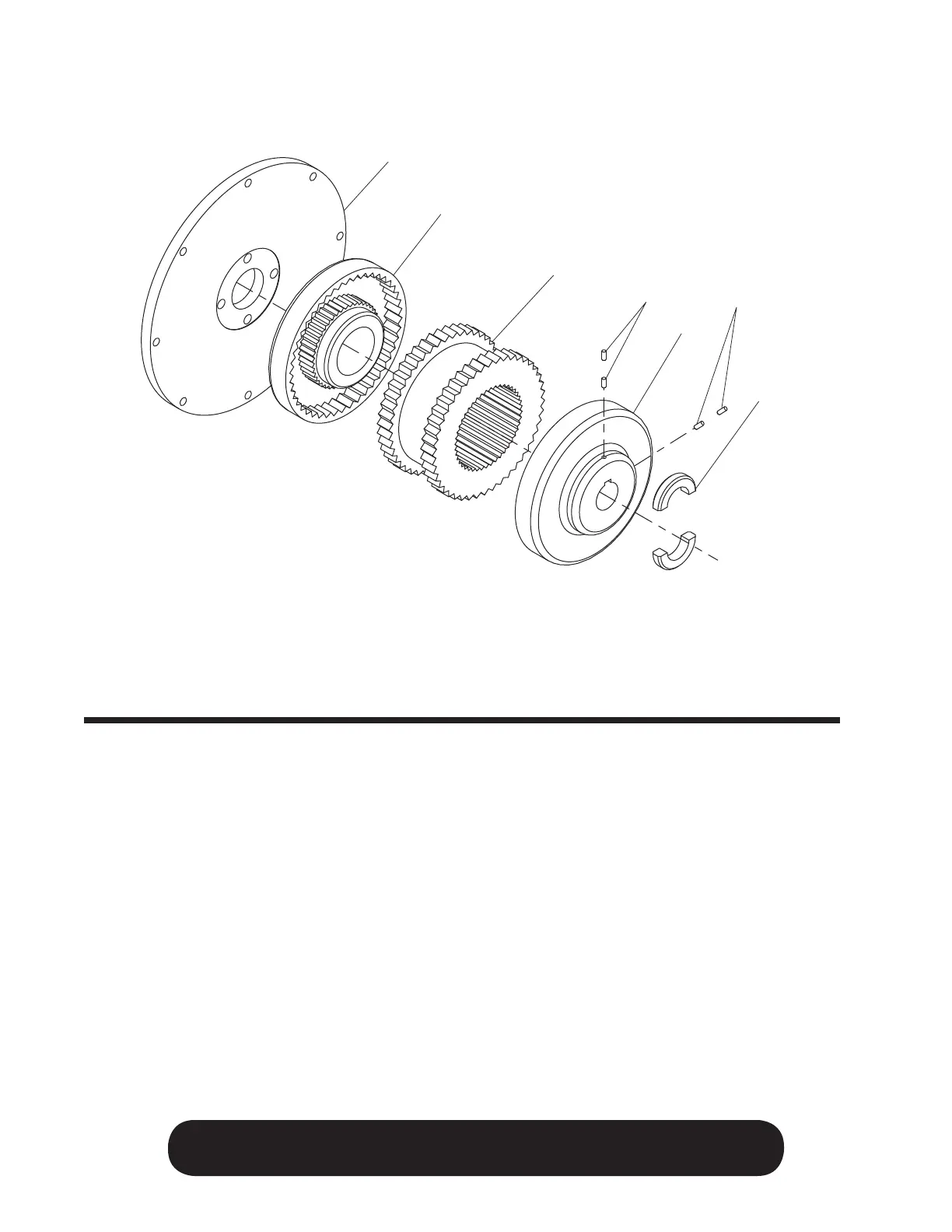

BLOWER DRIVE ASSEMBLY
Ref. No. Part Number Description No. Req'd
1 045039 Flywheel 1
2 045002 Flywheel Mount Coupling Half 1
3 045004 Coupling Insert 1
4 Z0606CPK Coupling Set Screw 4
5 045003 Blower Coupling Half 1
6 045118 Lock Collar 1
NOT SHOWN
F1240-0003-01 Left Coupling Gaurd 1
F1240-0003-02 Right Coupling Gaurd w/Weldnut 1
6
5
4*
3
1
2
Blower
Shaft
Engine
4*
*Note: Part number 045003 blower coupling half must be locked with
double setscrews (two on top of each other.)
