WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

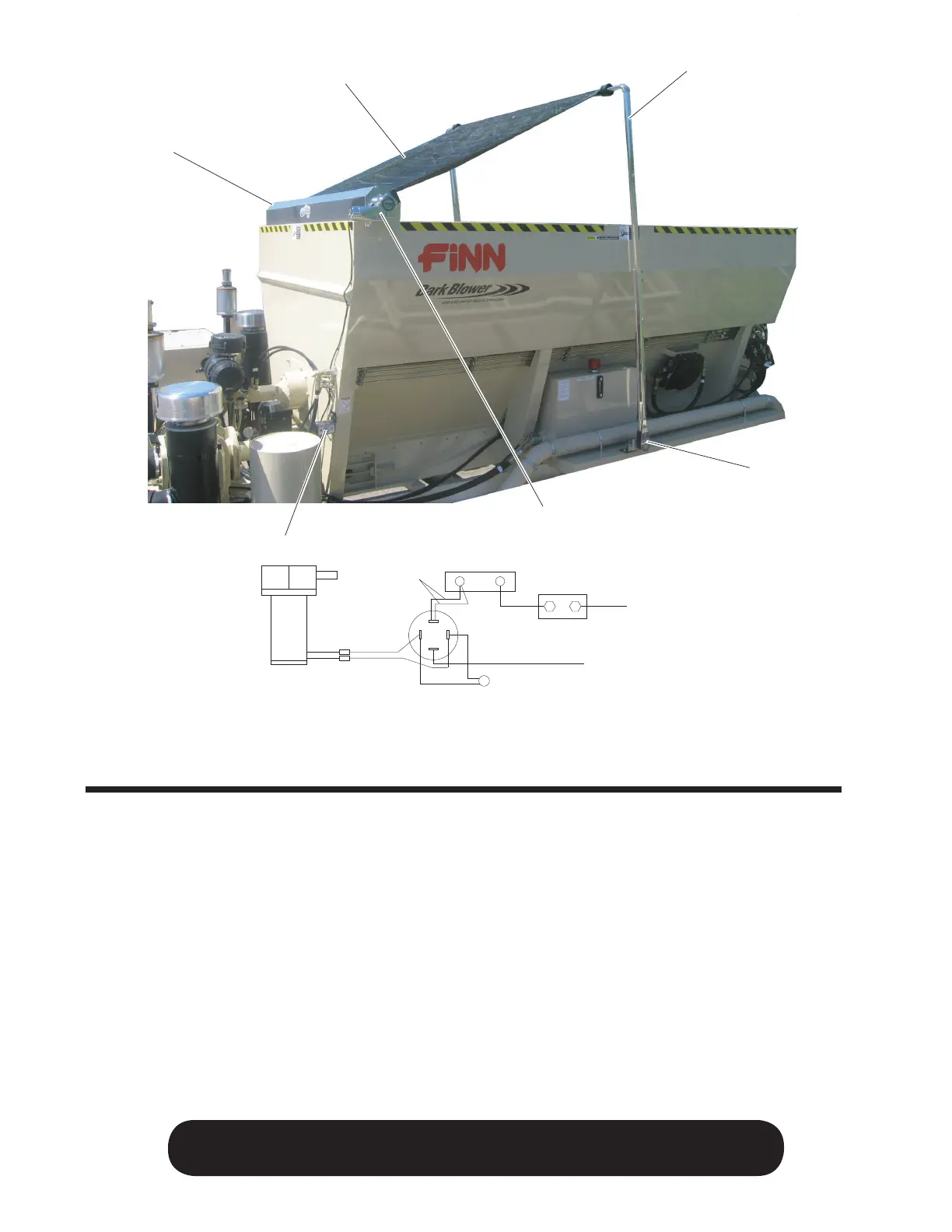

TARP ASSEMBLY
Ref. No. Part Number Description No. Req`d
052588 Tarp Assembly Includes: 1
1 RR1031 Electric Gear Tarp Motor w/Protective Cover 1
RR3103-08 Pre-Threaded Aluminum Tarp Axle 1
RR3105 Flange Bearing 2
2 RR1050 Electric Kit (Switch, Bracket, Breaker, Etc.) 1
3 RR3636-08 Wind Deflector Housing 1
4 RR4643 3-Spring Pivot Set 2
5 RR7670-08 Tarp Bow Set 1
RR7677-08 Crossbar 1
RR7676-08 Upper Arm 2
6 RR8100-08 Knit Mesh Tarp 1
START
(+)
6 GA (Red)
AUTO-RESET
BREAKER
*(Black)
*(Black w/White Stripe)
GROUND @
STARTER BOLT
INDICATOR
LIGHT
12 GA (Red)
12 GA (Black)
(Orange)
(Black)
GEAR
MOTOR
12 GA (Red)
MANUAL RESET
BREAKER
To Next Page
