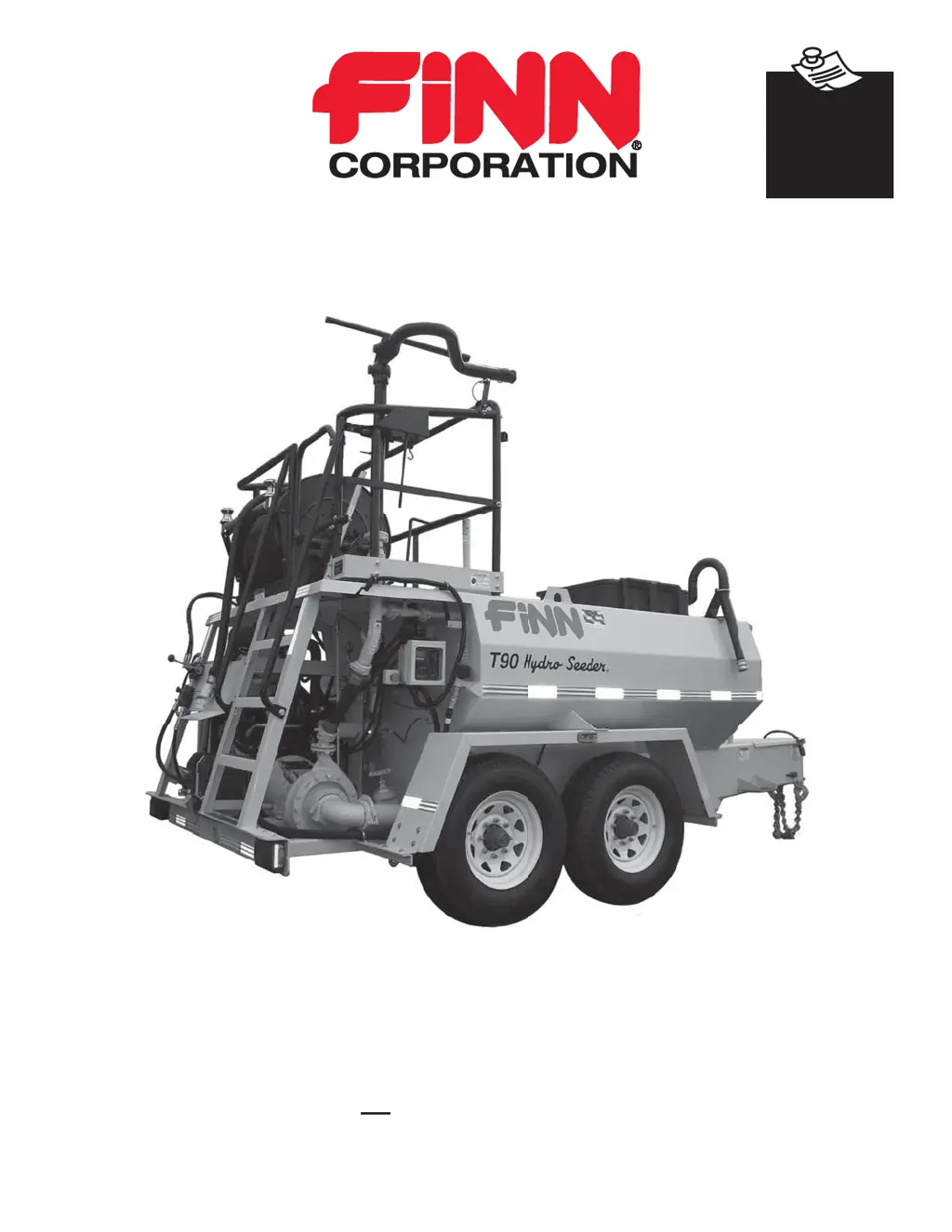

Finn T90-II HydroSeeder

Other manuals for Finn T90-II HydroSeeder

Parts And Operator's Manual77 pages

Questions and Answers

C
Craig CochranAug 10, 2025
How to fix leaks in Finn Farm Equipment?
- V
  vfordAug 10, 2025
  If your Finn Farm Equipment is experiencing leaks, several issues could be the cause. A lack of lubrication may have worn the seal, so replace the seal and follow the lubrication schedule. Ensure bolts are tightened uniformly to 25 lb–ft (34 N•m). Replace any rubber seals that are cracked, pinched, or torn, and always grease the seal before clamping shut. If the pressure lubricator is not serviced, replace the pump seal and service the automatic pressure lubricator daily. Replace any bad O-rings, using grease during replacement. Finally, replace any worn or missing gaskets.
J
Jessica NicholsAug 17, 2025
How to resolve plugging or clogging in Finn Farm Equipment?
- M
  meghan74Aug 17, 2025
  If your Finn Farm Equipment is experiencing plugging or clogging, start by clearing any obstructions caused by foreign objects or de-watered fiber. Disengage (turn off) the slurry pump clutch. Remove the nozzle and clean the discharge nozzle. If the recirculation system isn't working, check the valve assembly, recirculation nozzle, and recirculation pipe. Clear the pump and remove any obstruction in the sump area.
T
Thomas ReevesAug 23, 2025
How to prevent foam in Finn T90-II HydroSeeder Farm Equipment tank?
- S
  Susan WilsonAug 23, 2025
  If you notice foam in the tank and air entrainment in your Finn Farm Equipment, several actions can be taken. Slow the agitator. Add 2 to 3 oz. (59 to 89 ml) of an anti-foaming agent to the tank. If you identify an additive causing the issue, add it last or avoid using it, unless it is the water. Reduce recirculation time as much as possible.
K
Kyle MartinezAug 29, 2025
Why does my Finn T90-II HydroSeeder Farm Equipment jump during operation?
- J
  jhunterAug 29, 2025
  If your Finn Farm Equipment jumps during operation, it could be due to the agitator being bent by a heavy object falling on it, in which case you should straighten the agitator shaft or shim it so it runs true. Another possible cause is loading wood fiber mulch into the tank before the tank is half full. Straighten the agitator paddle and realign the agitator to run true.
J
John HunterNov 4, 2025
Why is my Finn Farm Equipment foaming and not spraying far?
- A
  Abigail MartinezNov 4, 2025
  If you observe foaming of the solution and a lack of distance with your Finn Farm Equipment, several factors could be at play. It could be due to sucking air in suction lines, so check all suction connections and ensure rubber seals are in good shape, greasing them before replacing clamps. Other potential causes include soft water, too much agitation, or the type of fertilizer being used. Try slowing the agitator or changing the fertilizer type. Refer to the TROUBLESHOOTING YOUR HYDROSEEDER SECTION for air entrainment issues. For low engine rpm (below 3,600 rpm – No load), consult an authorized engine dealer. If the pump is worn, reset the pump tolerance (refer to the PUMP MAINTENANCE SECTION). Clean nozzles, and replace them if necessary. Clean out the machine if the suction is partially ...

Summary

Operator Instructions and Parts Manual

Warranty Information

Instructions and requirements for activating the Finn Corporation Limited Warranty.

Finn Corporation Warranty Details

Details of the Finn Corporation warranty, including what it covers and what you must do.

Safety First and Summary

Safety First Principles

Emphasizes the importance of safety in equipment operation and introduces safety symbols.

HydroSeeder Safety Summary

Comprehensive safety summary section covering pre-start checks and machine operation.

Common Safety Decals

Visual guide to common safety decals used on the HydroSeeder® unit.

Operation and Procedures

Mounting and Carrier Vehicle Requirements

Guidelines for mounting the HydroSeeder® and requirements for carrier vehicles.

Pre-Start and Equipment Checks

Detailed procedures for pre-start checks and general equipment inspection.

Starting Procedure

Step-by-step instructions for starting the HydroSeeder® engine and systems.

Loading and Mixing Procedures

Steps for loading the HydroSeeder® tank and mixing various slurry materials.

Slurry Application Techniques

Instructions for slurry application, including nozzle selection and general techniques.

Control System and Settings

Control Box and Panel Guide

Explanation of the control box components and control panel guide.

System Operation and Navigation

Guide to navigating menus, changing data displays, and system operation.

Fault Codes and Maintenance Timer

Procedures for managing fault codes and the engine maintenance timer.

Display Settings and Units

Procedures for adjusting backlight, contrast, display modes, and engineering units.

Maintenance and Troubleshooting

Cleaning and Maintenance Schedule

Procedures for daily, weekly, and seasonal cleaning and maintenance.

Hydraulic System Maintenance

Information on maintaining the hydraulic system, including oil and filtration.

Clutch;Pump Maintenance

Detailed procedures for maintaining the clutch/pump assembly, including adjustments.

Troubleshooting Common Issues

Guidance on diagnosing and resolving common problems like leaks, plugging, and foaming.

Technical Specifications

HydroSeeder Technical Specifications

Detailed specifications for skid-mount and trailer HydroSeeder® models.

Parts Manual

Trailer Components

List of part numbers and descriptions for the trailer assembly.

Operators Platform Components

Part numbers and descriptions for the operator's platform (trailer model).

Skid Components

Part numbers and descriptions for the skid-mount assembly.

Control Systems Parts

Part numbers for control systems, including the control box and related components.

Wheel and Hub Assembly Parts

List of parts for the wheel and hub assembly, including brakes.

Agitator Assembly Parts

Parts breakdown for the bearing and agitator assembly.

Hydraulic System Components

Part numbers and descriptions for the hydraulic system.

Hydraulic Hose Reel Assembly Parts

Parts list for the optional hydraulic hose reel assembly.

Clutch;Pump Assembly Parts

Detailed parts breakdown for the clutch/pump assembly.

Engine Parts

List of specific engine parts, including DPF and cooling system components.

Electrical Components

List of electrical components and their part numbers.

Decals

Part numbers and descriptions for various trailer decals.
