Fiore FI310 - Page 19

18
19
LIqUID PRETROLEUM (LP) GAS NOzzLES
BURNER POSITION NOZZLE
DIAMETER
MINIMUM
PRESSURE
MAXIMUM
PRESSURE
R ATE
( BT U/H )
Auxiliary
Front Right 1 x 0.70 10” 14” 4,800
Semi-Rapid
Rear Left & Right 1 x 0.80 10” 14” 6,500
Rapid
Front Left 1 x 0.89 10” 14” 8,500
Triple Ring Center 5 x 0.56 10” 14” 15,500

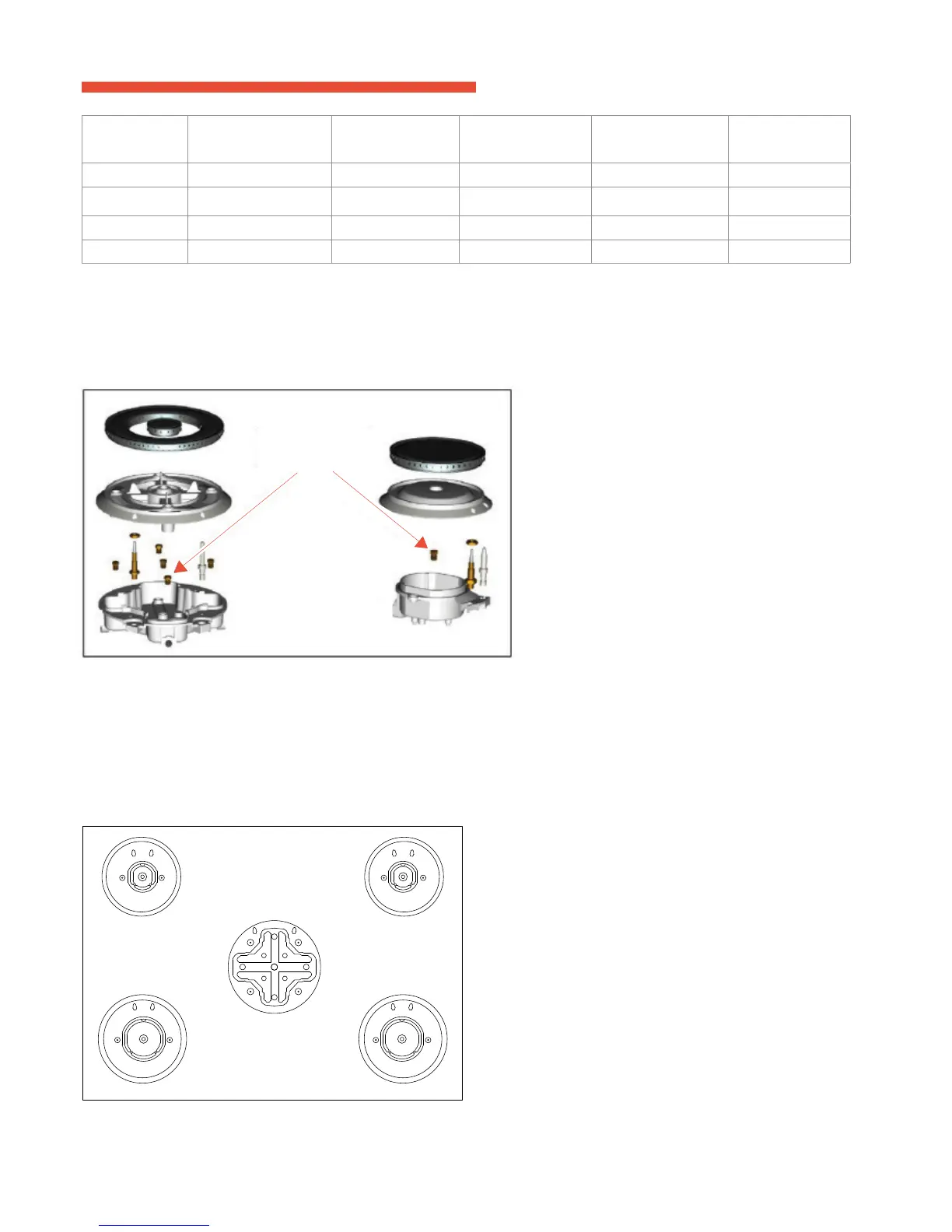

ATTENTION: BE SURE TO REVIEW AND OBSERVE EACH NOZZLE FOR CORRECT LOCATION
AND POSITION - PLEASE REFER TO FIGURE F and G BE L OW:
FIGURE F
TRIPLE RING BURNER AUXILARY BURNER
5 NOZZLES SEMI-RAPID BURNER
RAPID BURNER
1 NOZZLE EACH
FIGURE G
BURNER
POSITION NOZZLE
DIAMETER
MINIMUM
PRESSURE
MAXIMUM
PRESSURE
RATE
( BT U/H )
Auxiliary Front Right 1 x 0.70 10” 14” 4,800
Semi-Rapid Rear Left & Right 1 x 0.80 10” 14”
6,500
Rapid Front Left 1 x 0.89 10” 14” 8,500
Triple Ring Center 5 x 0.56 10” 14” 15,500
ATTENTION: BE SURE TO REVIEW AND OBSERVE EACH NOZZLE FOR CORRECT LOCATION
AND POSITION - PLEASE REFER TO FIGURE F and G BELOW:
FIGURE F
TRIPLE RING BURNER AUXILARY BURNER
5 NOZZLES SEMI-RAPID BURNER
RAPID BURNER
1 NOZZLE EACH
FIGURE G
SCALE: 3" = 1'-0"
BURNER
Install the proper nozzles in the exact locations as noted in the illustrations above and the table below.
Replace the burner bases, heads, caps and top grates. Conrm burner caps are properly resting on the burner head.
LIQUID PRETROLEUM (LP) GAS NOZZLES
NOZZLES
56 5656
80
89 70
80
56
56
BURNER
POSITION NOZZLE
DIAMETER
MINIMUM
PRESSURE
MAXIMUM
PRESSURE
RATE
( BT U/H )
Auxiliary Front Right 1 x 0.70 10” 14” 4,800
Semi-Rapid Rear Left & Right 1 x 0.80 10” 14”
6,500
Rapid Front Left 1 x 0.89 10” 14” 8,500
Triple Ring Center 5 x 0.56 10” 14” 15,500
ATTENTION: BE SURE TO REVIEW AND OBSERVE EACH NOZZLE FOR CORRECT LOCATION
AND POSITION - PLEASE REFER TO FIGURE F and G BELOW:
FIGURE F
TRIPLE RING BURNER AUXILARY BURNER
5 NOZZLES SEMI-RAPID BURNER
RAPID BURNER
1 NOZZLE EACH
FIGURE G
SCALE: 3" = 1'-0"
BURNER
Install the proper nozzles in the exact locations as noted in the illustrations above and the table below.
Replace the burner bases, heads, caps and top grates. Conrm burner caps are properly resting on the burner head.
LIQUID PRETROLEUM (LP) GAS NOZZLES
NOZZLES
56 5656
80
89 70
80
56
56
Install the proper nozzles in the exact locations as noted in the illustrations above and the table below.
Replace the burner bases, heads, caps and top grates. Conrm burner caps are properly resting on the burner head.
