56 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015
Installation Optional Modules and Devices
• Max. Current:
• Alarm: 68 mA
• Standby: 28 mA
• Operating Temperature: 32
o
F to 120
o
F (0
o
C to 49
o
C)
• For indoor use in a dry location only
 Mounting/Installation
Refer to the documentation supplied with the ANN-LED module for mounting information.
ann-led.wmf

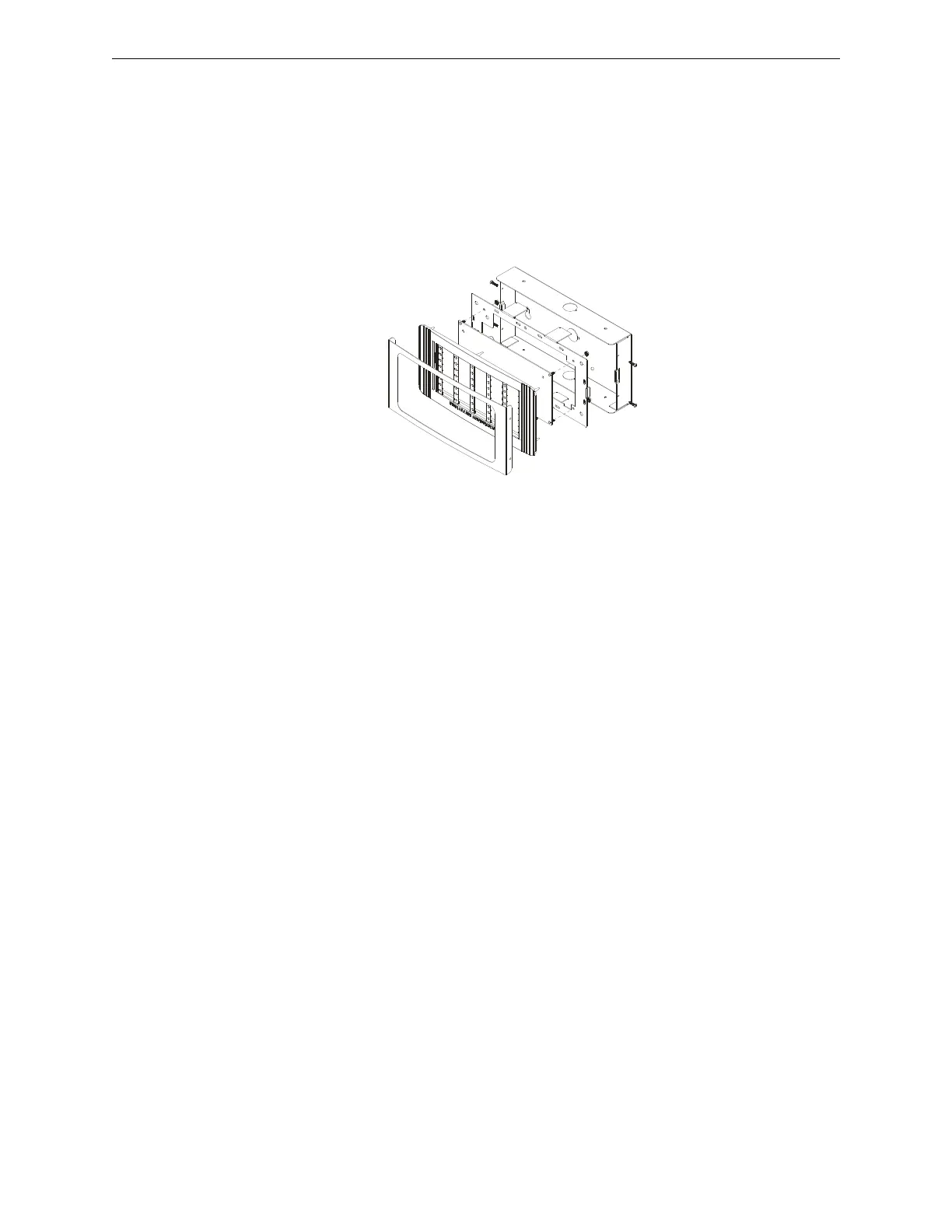

Figure 2.28 Exploded View of ANN-LED
