Firebird Enviromax Condensing Range
3
12

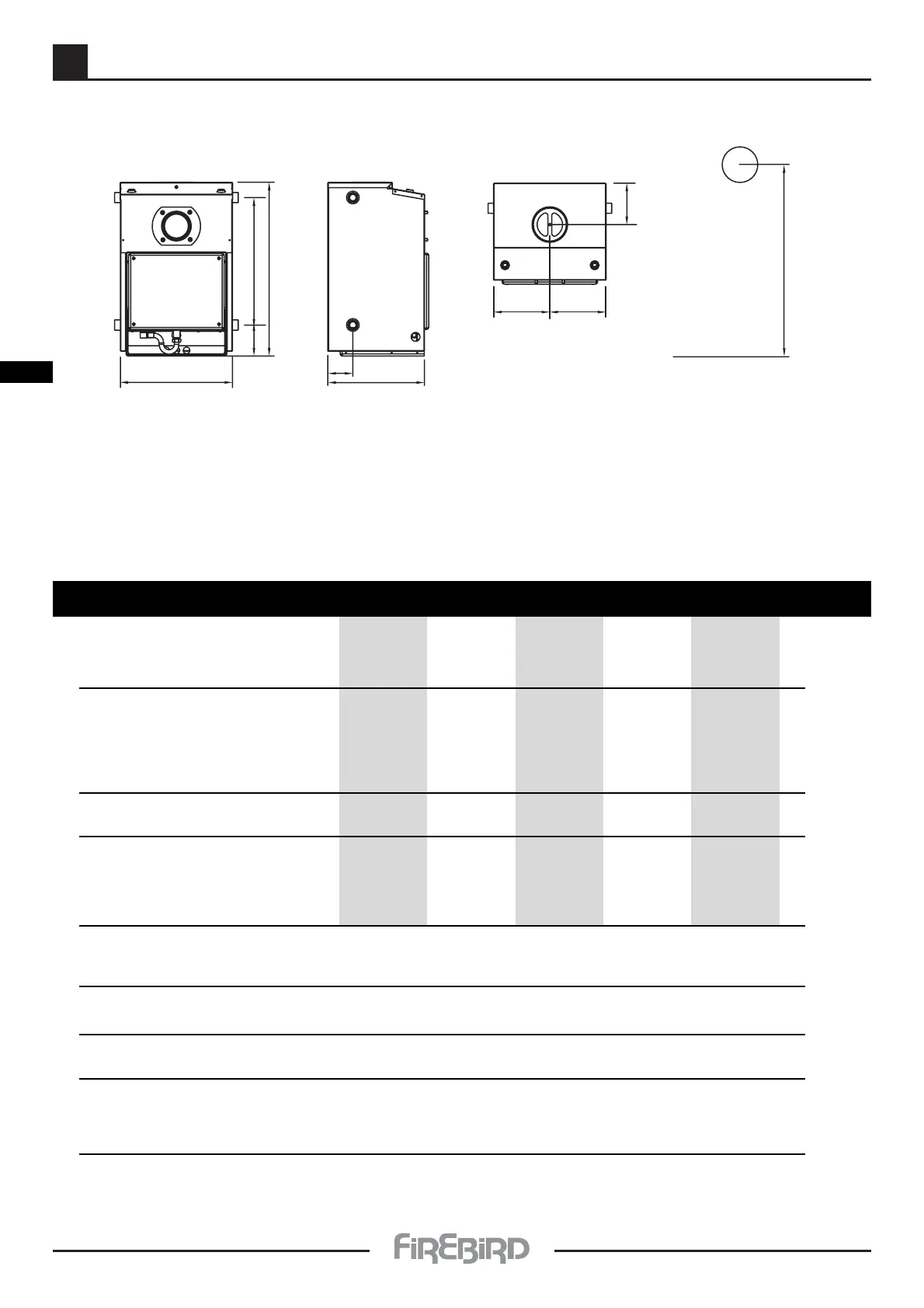

3.1 - POPULAR BOILERHOUSE - TECHNICAL DETAILS
Firebird Enviromax Popular Boilerhouse C Range
Dimensions (mm)
Model Output Weight kg Dimensions(mm)
Kw/hr (incl. Burner) H W D A B C E F G
Popular C15-20 110 684 441 381 202 755 220 163 99 122 502
Popular C20-26 112 684 441 381 202 755 220 163 99 122 502
Popular C26-35 115 684 441 381 202 755 220 163 99 122 502
Popular C35-44 182 820 470 533 202 914 154 154 97 123 620
Popular C44-58 190 820 470 533 253 914 154 154 97 123 620
Popular C58-73 210 877 530 527 253 1024 265 155 97 123 670
Popular C80-100 210 1057 698 759 253 - 349 139 112 130 832
BURNER
DEPTH
Front View
Side View
Top View
C
E
D
W
G
H
F
BB
A
Floor
Flue
Dimension for
Low Level
Balanced
Flue
Boiler Model C20 / 26 C35 C44 / 58 C73 C80 / 100
Max Heat Output Kw 20 / 26 35 44 / 58 73 80 / 100
Btu/h (‘000) 68 / 89 119 150 / 198 249 341
CONNECTIONS
Heating Flow 1”Bsp. 1”Bsp. 1
1
/
2
”Bsp 1
1
/
2
”Bsp. 2”Bsp.
Heating Return 1”Bsp. 1”Bsp. 1
1
/
2
”Bsp. 1
1
/
2
”Bsp. 2”Bsp.
Drain Off Cock
1
/
2
” Bsp.
1
/
2
” Bsp.
1
/
2
” Bsp.
1
/
2
” Bsp. 2”Bsp.
Condense Drain Off Connection. 22 mm PLASTIC 22 mm PLASTIC 22 mm PLASTIC 22 mm PLASTIC
WATER CONTENT
Water Content Boiler 24 24 43.5 54 75
FLUE (Indoor Boilers) Concentric Flue
Balanced Flue Assembly
(mm) 125 (5”) 125 (5”) 155 (6”) 170 (7”) 207 (8”)
Conventional flue Socket.
(mm) 130 id. 130 id. 155 id. 170 id. 207 id.
Flue Draught Reqd.(Min WG.) 0.040” 0.040” 0.040” 0.040” 0.040”
Conventional Flue (Max WG.) 0.15” 0.15” 0.15” 0.15” 0.15”
MAINS WATER SUPPLY Limescale excess:When over 150/200 ppm.Fit appropriate scale reducer.
Pressure Max 10 bar max (Fit pressure reducing valve as necessary)
Min 1 bar min. For user Comfort reduce pressure at tap to between 1 and 5 Bar.
TEMPERATURE CONTROL
Boiler Central Heating Control 60˚C - 80˚C +- 3˚C Boiler Safety Limit 110˚C +- 3˚C
HEATING SYSTEM (SEALED) Fit in accordance with BS 7074 Part 1,BS 5449,OFTEC Standards,etc
Boiler Test Pressure 4.5 Bar Safety Valve Operating Pressure Gauge 0 to 4 Bar
WATER SIDE RESISTANCE
Flow Rate To Give A Nominal Output At 10k Differential Flow Rate To Give A Nominal Output At 20k Differential
Flow Rate Measured
(Kg h
-1
) 2874.24 Flow Rate Measured(Kg h
-1
) 1522.92
Waterside Resistance (mbar) 0.18 Waterside Resistance (mbar) 0.19
Pressure Jet Oil Burners RIELLO RDB 2.2 up to C35 & RIELLO RDB 4.2 up to C58 - C73 - C100
Fuel C2 Kerosene
Electrical Supply 230v.AC 50Hz To be fused at 5amp.
Copper Pipe Not Plastic to be used for a minimum of 1 metre off the boiler
