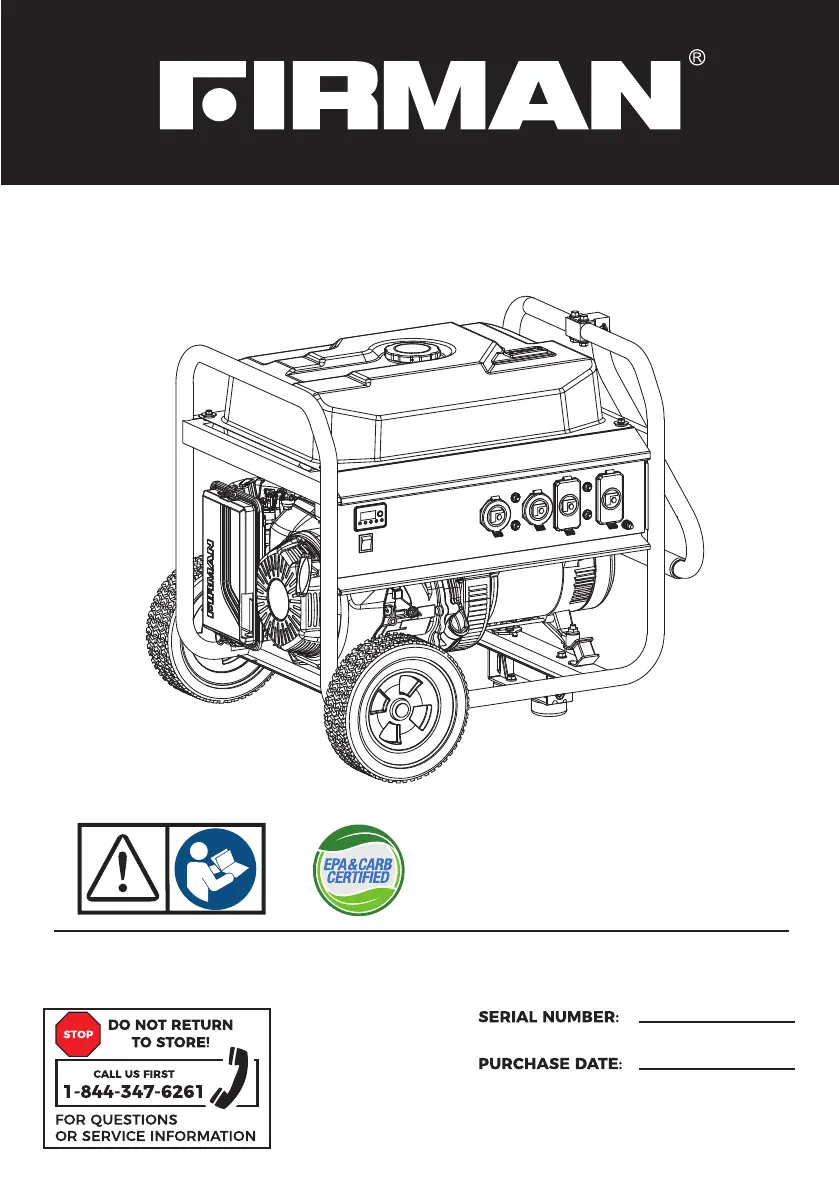

GASOLINE PORTABLE GENERATOR
P/N:367745450 Rev:01
Record product information to reference when ordering parts or
obtaining warranty coverage.
MODEL NUMBER
P06701
Rev Level:00
OPERATOR’S MANUAL

Table of Contents

Questions and Answers

  • M
    moraleskatherineAug 9, 2025
    Why is my Firman P06701 running but not producing AC output?
    • C
      Courtney JensenAug 9, 2025
      If your Firman Portable Generator's engine is running but there's no AC output, there might be several reasons. First, check if the circuit breaker is open and reset it. A poor connection or defective cord could also be the culprit, so inspect and repair if necessary. Ensure that the connected device is working correctly by testing with another device in good condition. If none of these steps work, it may indicate a fault in the generator, and you should contact an authorized service facility.
  • K
    Katherine MendezAug 13, 2025
    What to do if Firman P06701 bogs down when load is connected?
    • M
      msteeleAug 14, 2025
      If your Firman Portable Generator engine runs well without a load but bogs down when you connect devices, it could be due to several reasons. A short circuit in a connected load might be the problem; try disconnecting electrical loads to check. Also, a clogged or dirty fuel filter can cause this issue, so clean or replace the fuel filter. If these steps don't resolve the problem, it may be due to engine speed being too slow or a shorted generator circuit, in which case you should contact an authorized service facility. It is also possible that the generator is overloaded, so make sure you follow the instructions about not overloading the generator.
  • M
    Ms. Susan ConnerAug 18, 2025
    How to troubleshoot a Firman P06701 that lacks power?
    • R
      Richard WilsonAug 18, 2025
      If your Firman Portable Generator engine lacks power, consider these potential causes. A dirty air filter restricts airflow, so replace it. Also, a clogged or dirty fuel filter can starve the engine, so clean or replace the fuel filter. Check if the load is too high and follow the instructions about not overloading the generator. Lastly, a clogged spark arrester can reduce engine efficiency, so clean or replace the spark arrester.
  • E
    erica99Aug 23, 2025
    What to do if my Firman Portable Generator shuts down while running?
    • M
      Mason PearsonAug 23, 2025
      If your Firman Portable Generator engine shuts down while running, make sure it has enough fuel by filling the fuel tank. Also, check the air cleaner and clean or replace it if it's dirty. Verify that the oil level is sufficient and fill the crankcase to the proper level, or place the generator on a level surface.
  • S
    Shannon RodriguezAug 29, 2025
    Why does my Firman P06701 Portable Generator engine hunt or falter?
    • J
      Jason JohnstonAug 29, 2025
      If your Firman Portable Generator engine “hunts” or falters, it could be due to a carburetor running too rich or too lean, in which case you should contact an authorized service facility. Another possible cause is a clogged or dirty fuel filter, so try cleaning or replacing it.
  • T
    Tracy Aguirre Jr.Nov 2, 2025
    Why Firman Portable Generator will not start?
    • A
      amy30Nov 2, 2025
      If your Firman Portable Generator engine won't start, runs rough, or shuts down, there are several things to check. First, ensure the engine switch is set to the ON (l) position and the fuel shutoff lever is also in the ON (l) position. Check the oil level and fill the crankcase to the proper level, or place the generator on a level surface. Make sure there is enough fuel in the fuel tank, and if the fuel is stale, drain the tank and carburetor and refill with fresh fuel. Inspect the air cleaner and clean or replace it if it's dirty. Ensure the spark plug wire is connected to the spark plug, and replace the spark plug if it's bad. If the engine is flooded, wait 5 minutes and try re-cranking. Clean or replace the fuel filter, if it is clogged or dirty. If there is water in the fuel, drain t...

Summary

Introduction and Safety

Important Safety Information

Overview of potential hazards and essential safety precautions for operating the generator.

Safety Precautions

Carbon Monoxide Hazard

Details the dangers of carbon monoxide from generator exhaust and safe operating locations.

California Resident Warning

Specific warnings for California residents regarding emissions and potential health effects.

Generator Placement Safety

Safe and Unsafe Operating Locations

Illustrates correct and incorrect generator placement to prevent carbon monoxide buildup.

General Safety Warnings

Operating and Transport Hazards

Covers kickback, fuel flammability, electrical shock, transport, and storage safety.

Electrical Safety

Emphasizes proper grounding, avoiding electrical hazards, and using safe cords.

Operational Safety Rules

Safe Operating Practices

General rules for rain, water, unqualified users, and preventing modifications.

Capacity and Speed Limits

Guidance on not exceeding generator capacity or tampering with speed settings.

Unpacking and Parts

Unpacking Instructions

Steps to open the carton, remove packaging, and check contents for completeness.

Life Support Use Prohibition

Critical warning prohibiting the use of the generator for life support devices or appliances.

Assembly

Wheel Kit Installation

Step-by-step instructions for attaching the wheels to the generator frame.

Support Leg and Handle Installation

Instructions for installing the support leg and generator handle.

Generator Components

Component Identification

Diagram identifying the key parts and features of the generator unit.

Control Panel

Control Panel Overview

Description of switches, indicators, and receptacles on the control panel.

Receptacle Types and GFCI

Details on various outlets, including 120/240V, 120V, and GFCI protection.

GFCI Testing Procedure

Instructions for performing the monthly self-test of the GFCI receptacle.

Specifications

Technical Specifications

Key performance and technical data for the generator, including wattage and engine details.

Temperature Effects on Performance

Explanation of how ambient temperature impacts generator output and performance.

Engine Oil Management

Adding Engine Oil

Instructions and chart for filling the engine with the correct type and amount of oil.

Low Oil Shutdown System

Explanation of the automatic engine shut-off feature due to low oil level.

Fueling

Fuel Requirements and Safety

Details correct fuel type, ethanol limits, and essential safety precautions for fueling.

Fueling Procedure

Step-by-step guide for safely adding unleaded gasoline to the generator's fuel tank.

Operation Setup

High Altitude Operation

Information on operating the generator at higher elevations and necessary adjustments.

Grounding and Building Connection

Requirements for proper grounding and connecting the generator to a building's electrical system.

Operation

Generator Location and Safety

Guidelines for selecting a safe operating location and environmental considerations.

Electronic Device Protection

Recommendations for using surge suppressors to protect sensitive electronic equipment.

Starting the Generator

Pre-Start Checks and Procedure

Steps to perform before starting and the sequence for engine ignition.

Starting Safety Warnings

Precautions regarding starter cord kickback and choke lever usage.

Connecting and Stopping

Connecting Electrical Loads

Instructions on how to safely connect and apply electrical loads to the generator.

Stopping the Generator

Procedure for safely shutting down the generator engine.

Operation Notes

Storage Preparation

Advice on preparing the generator for periods of non-use or storage.

Low Oil Shutdown and Overload Prevention

Explanation of low oil shutoff and steps to avoid overloading the generator.

Maintenance Schedule

Scheduled Maintenance Tasks

A table outlining required maintenance items and their recommended intervals.

Engine Maintenance

Engine Oil and Air Filter Service

Procedures for performing engine oil changes and air filter maintenance.

Component Maintenance

Spark Plug and Fuel Strainer Service

Instructions for servicing the spark plug and cleaning the fuel strainer.

Muffler and Spark Arrester Inspection

Guidance on inspecting the generator's muffler and spark arrester.

Spark Arrester Cleaning

Detailed steps for cleaning the spark arrester to maintain performance.

Generator Cleaning

Exterior Cleaning and Vent Checks

Instructions for cleaning the generator's exterior and checking air vents.

Service and Storage

Infrequent Use and Long Term Storage

Procedures for units used infrequently and preparing for extended storage.

Troubleshooting

Problem Diagnosis and Solutions

A table listing common generator problems, their causes, and corrective actions.

Parts Diagrams

Generator Parts Diagram

An exploded view illustrating the assembly of generator components.

Engine Parts Diagram

An exploded view illustrating the assembly of engine components.

Parts List

Generator Parts List

A detailed list of generator parts with part numbers and quantities.

Engine Parts List

A detailed list of engine parts with part numbers and quantities.

Wiring Diagram

Electrical Schematic

Diagram showing the electrical connections and components of the generator.

Service and Warranty

Contacting Service and Ordering Parts

Information on how to contact customer service and order replacement parts.

Warranty Terms and Conditions

Details of the manufacturer's limited warranty, including coverage and duration.

Warranty Exclusions and Limitations

Conditions and circumstances not covered by the generator's warranty.

Emissions Control System Warranty

Emissions Warranty Overview

Statement of warranty rights and obligations for exhaust and evaporative emissions control systems.

Owner Responsibilities for Emissions

Owner's duties for maintenance and presenting the equipment for emissions warranty service.

Emissions Warranty Provisions and Parts

Specific rules, covered parts, and non-covered parts for the emissions warranty.

Emissions Warranty Limitations

Exclusions and limitations applicable to the emission control system warranty.
