First Sales XTS30 - Control Valve Parts Breakdown

16
REF #
Part Number
Description
REF #
Part
Number
Description
1
FCC-955
Sterling Front Cover
12
FC103
Drain Fitting Retainer Clip
2
PCB-3486
Circuit Board (specify unit model)
13
FM205
Turbine Flow Meter
3
DC-12
DC Adaptor with cord
14
MCA945
Motor and Cam Assembly
(includes nut micro switches)
4
BV910
Brine Valve Assembly
15
7779K420-
MICRO
Micro Switch (2 required)
5
CAB945
Piston and Rod Assembly
16
EBA910
90° Bypass Elbow
6
TSS900
Seal Cartridge Assembly
17
BP 213
Bypass Valve
7
RVS932
Injector Assembly w/o-rings
18
EBA975
¾” NPT Elbow
(includes nut and o-ring)
8
FS165
Injector Filter Screen
EBA900
1” NPT Elbow
(includes nut and o-ring)
9
OR344
Valve to Tank Adaptor O-Ring
EBA915
1 ½” NPT Elbow
(includes nut and o-ring)
10
OR337
Tank O-ring
19
TAF131
Tank Attachment
11
FC901
Drain Fitting
20
TN101
Tank Nut

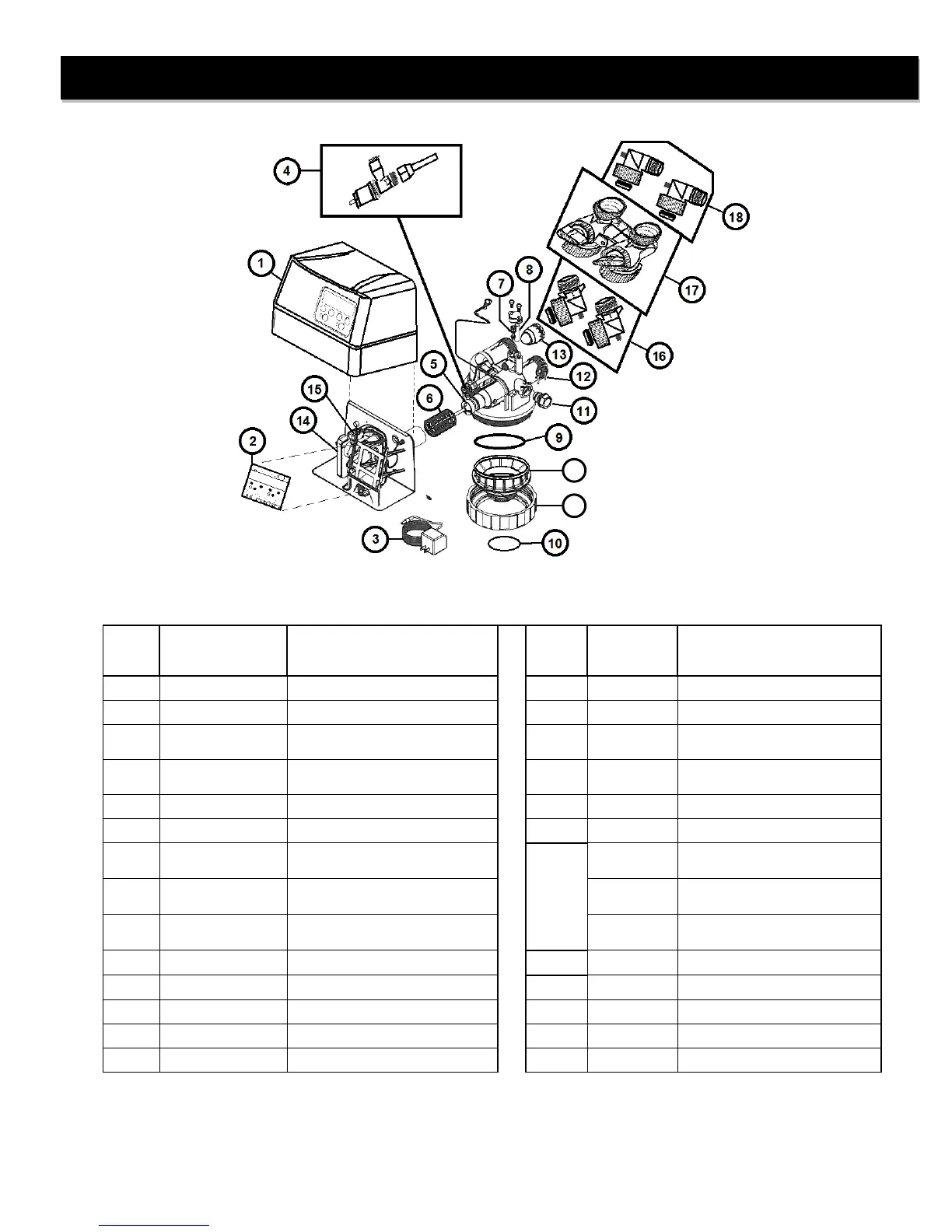

Control Valve Parts Breakdown
19
20
