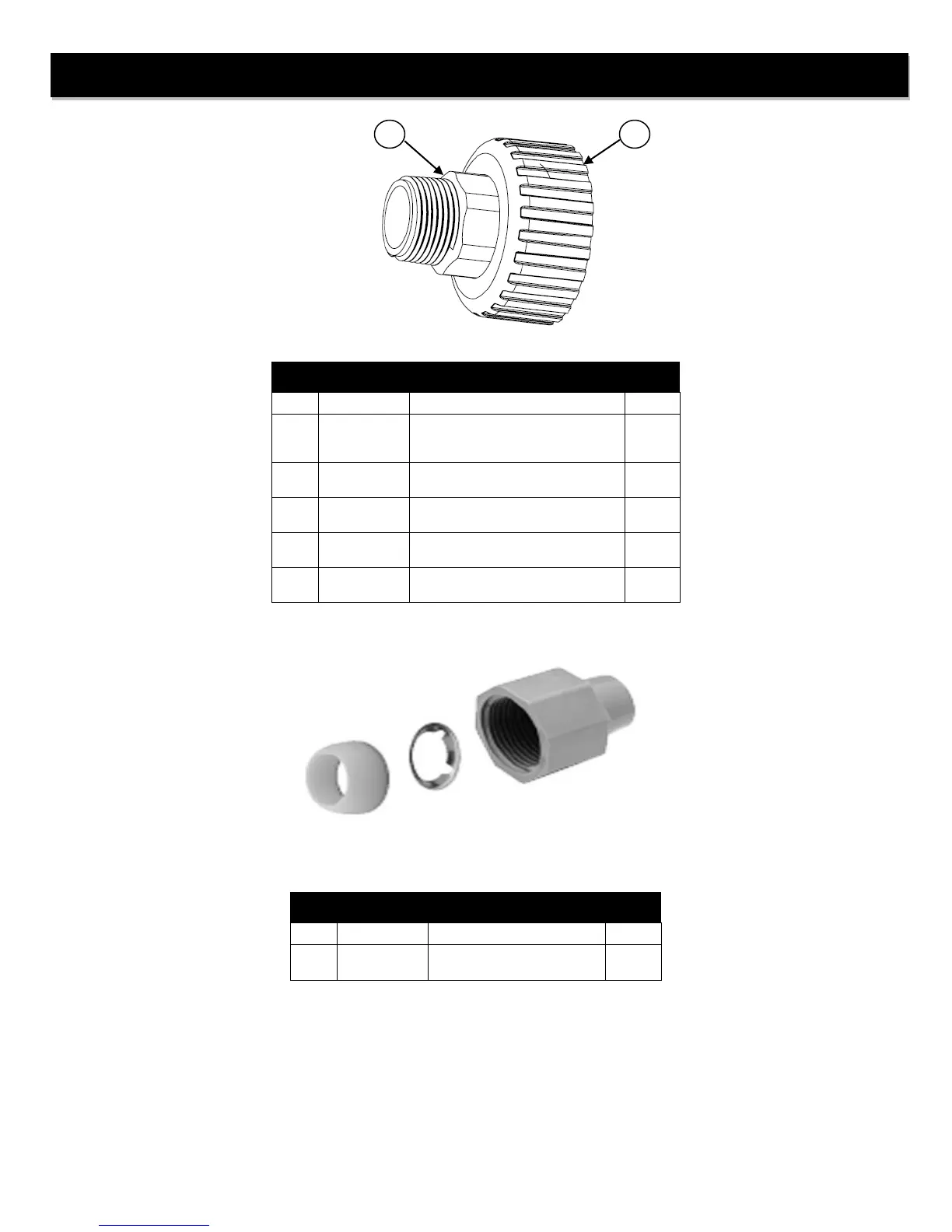

First Sales XTS30 - Page 19

18
1” STRAIGHT FITTING
Ref
Part #
Description
Qty
TC204-1
1” Straight Fitting Assembly
1*
1
TC101-1
1” Straight
1
2
OR324
O-ring, -324 (not shown)
1
3
C 101
Split Ring Retainer (not shown)
1
4
C 102
Connector Nut
1
3/4” QUICK CONNECT
Ref
Part #
Description
Qty
QFNCR4
3/4” Quick Connect
Assembly
1*
Installation Fitting Assemblies (cont.)
1
4
(*2 required)
(*2 required)
