9

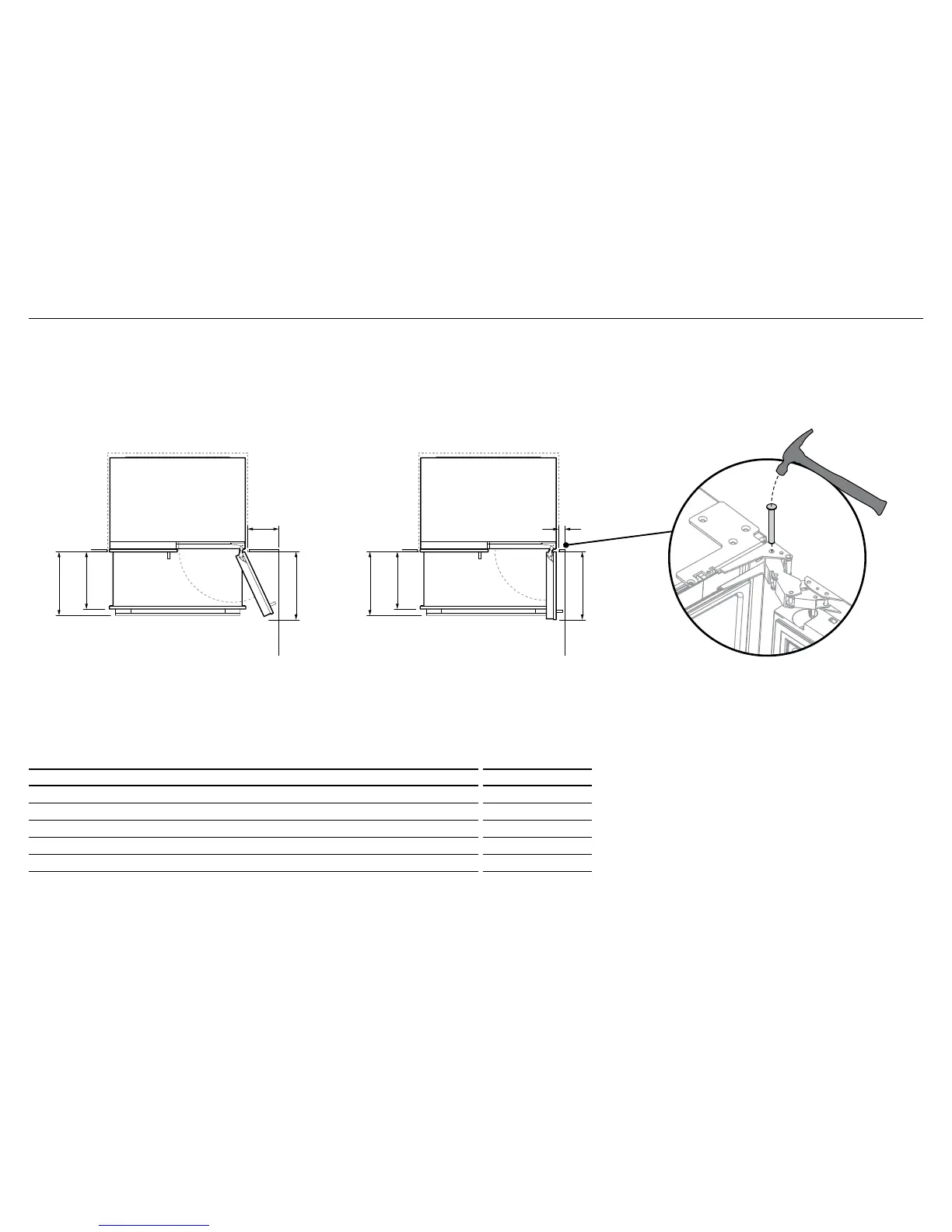

6 DOOR OPENING ROTATION
RS90A/RS90AU
DOOR CLEARANCE DIMENSIONS mm
A
Depth of door (widest opening) measured from front of door 445
B
Depth of drawer (open) measured from front of drawer, including handle 400
C
Depth of drawer (open) measured from front of drawer, excluding handle 360
D
Minimum door clearance to adjacent wall* (115° – full internal access) 300
E
Minimum door clearance to adjacent wall* (90° – reduced internal access) 100
* Measured from front cabinetry edge, includes 2mm cabinetry gap.
For 90° door swing a hinge limiting pin is supplied with
your refrigerator. This pin fits in the boreholes of the top
hinge (refer to Z).
WARNING!
Before opening doors to the product, ensure the
product is on its base packer and the polystyrene
stability blocks are still in place. Failure to follow these
instructions could lead to serious injury or death.
1
Open door to 90°.
2
Align the hinge limiting pin vertically with the bore hole.
3
Use a hammer to drive the pin through the bore hole.
