10
Note: We recommend to use an isolating switch that is easily
accessible to the user after the refrigerator is installed.
RS90A RS90AU
ELECTRICAL SPECIFICATIONS
Supply 230 VAC, 50 Hz 230 VAC, 50 Hz
Service 10 amp circuit 10 amp circuit
PLUMBING SPECIFICATIONS
Supply – ½” BSP threaded water connection
6.35mm PEX tubing
Pressure – Minimum 22 psi (150 kPa)
Maximum 120 psi (827 kPa) @ 20°C
Note: recommended that the electrical & water connection be located in an adjacent cabinet to either side of the fridge or above
the fridge cavity.
Do not locate water or electricity in this area, keep clear of connections.
!
CAUTION: Central area can only fit water outlet and electrical plug if they are placed within a recessed cavity.
* In this location the water tap needs to be recessed into the wall, the recess must allow for an 80mm bend radius for the water tube.

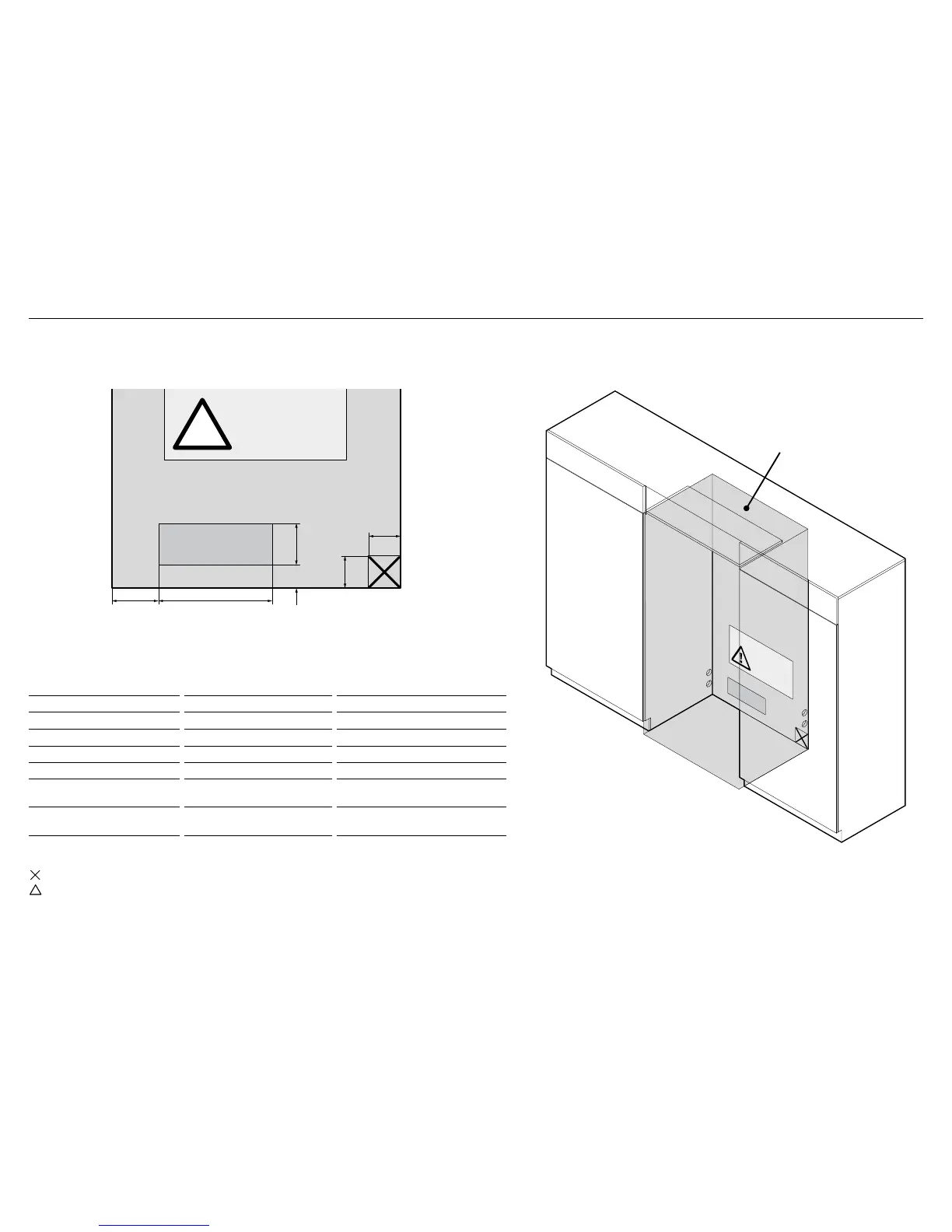

7 ELECTRICAL AND PLUMBING
Left side
of cavity
Floor
Optional electrical and
water connection location*
WARNING!
Electrical shock hazard. Assume all parts are live.
Disconnect supply before servicing and installation.
Electrical
Plumbing
