Fisher & Paykel ActiveSmart RS90A Installation Guide

6

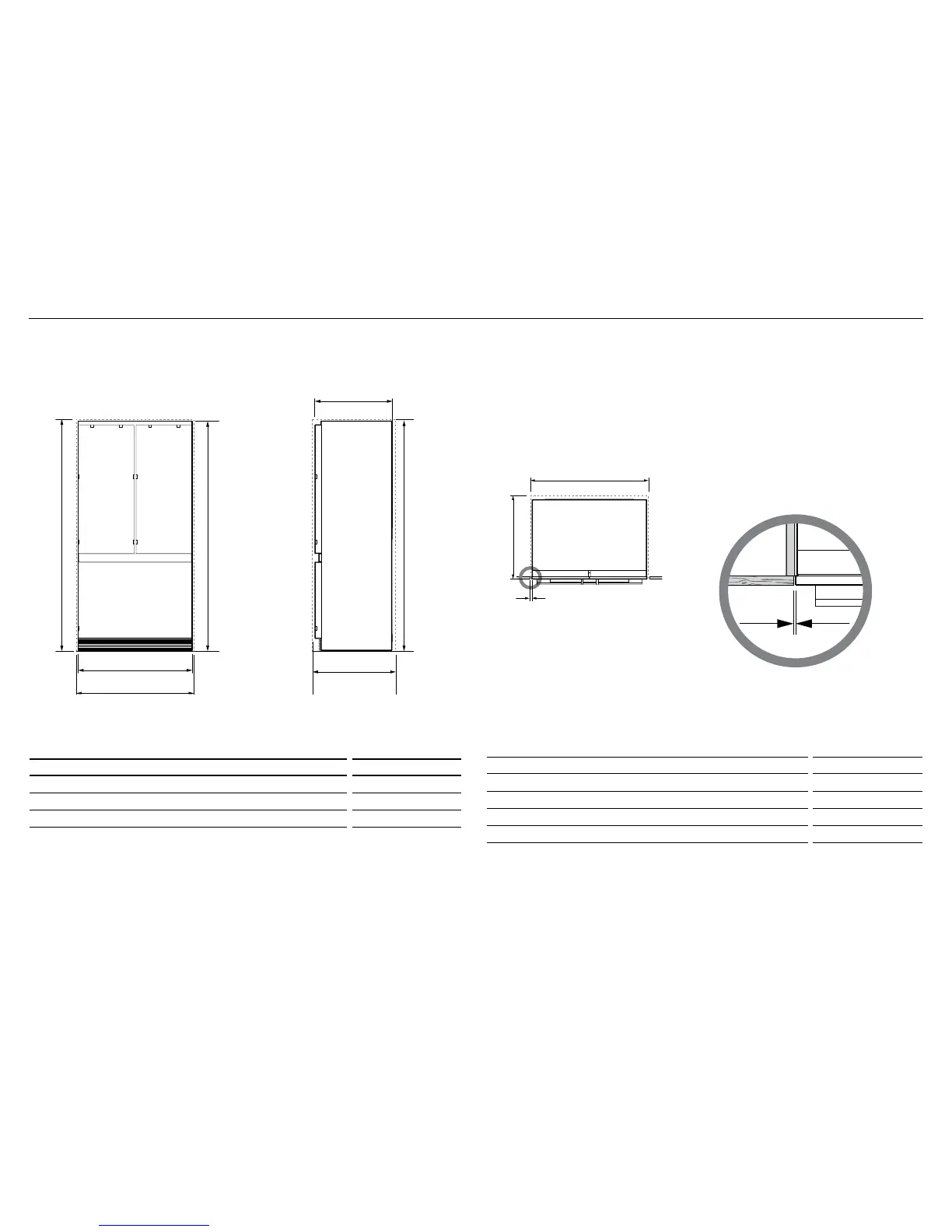

3 PRODUCT AND CAVITY DIMENSIONS
RS90A model shown with RD90 door panels
RS90A / RS90AU
CAVITY DIMENSIONS mm
D
Overall height of cavity 1800
E
Overall width of cavity 900 / 904**
F
Overall depth of cavity 650
g
Minimum cabinetry gap clearance from edge of product 4
** Cavity width when adjoining cabinetry cannot share 4mm door gap,
1 Total front panel width with required gaps at sides = 904mm (B product width + 2 x g cabinetry gaps).
2 For flush cabinet situation where the gap cannot be shared between the fridge and adjoining cabinet,
makethecavity width 904mm and open totally within itself.
3 Total front panel height with required gap above = 1802mm.
RS90A / RS90AU
PRODUCT DIMENSIONS
mm
A
Overall height of product* 1798
b
Overall width of product 896
c
Overall depth of product (without door panels) 606
* Includes mounted feet
TOP VIEW
b
e
f
d
ad
F
E
G
c
G
Flush with
front of
cabinetry
Note: shown with Standard Fisher & Paykel door
panels (Stainless steel) attached to fridge
b
e
f
d
d
c
C
B
F
a
4
Note: Shown with custom
panel attached to fridge
FRONT VIEW PROFILE VIEW
b
e
f
d
ad
F
E
G
c
G
b
e
f
d
d
c
C
B
F
a
4
Note: Shown with custom
panel attached to fridge
IMPORTANT!
For ease of installation, ensure cavity width is consistent
top to bottom and height isconsistent left to right.
