Fisher & Paykel ActiveSmart RS90A Installation Guide

5

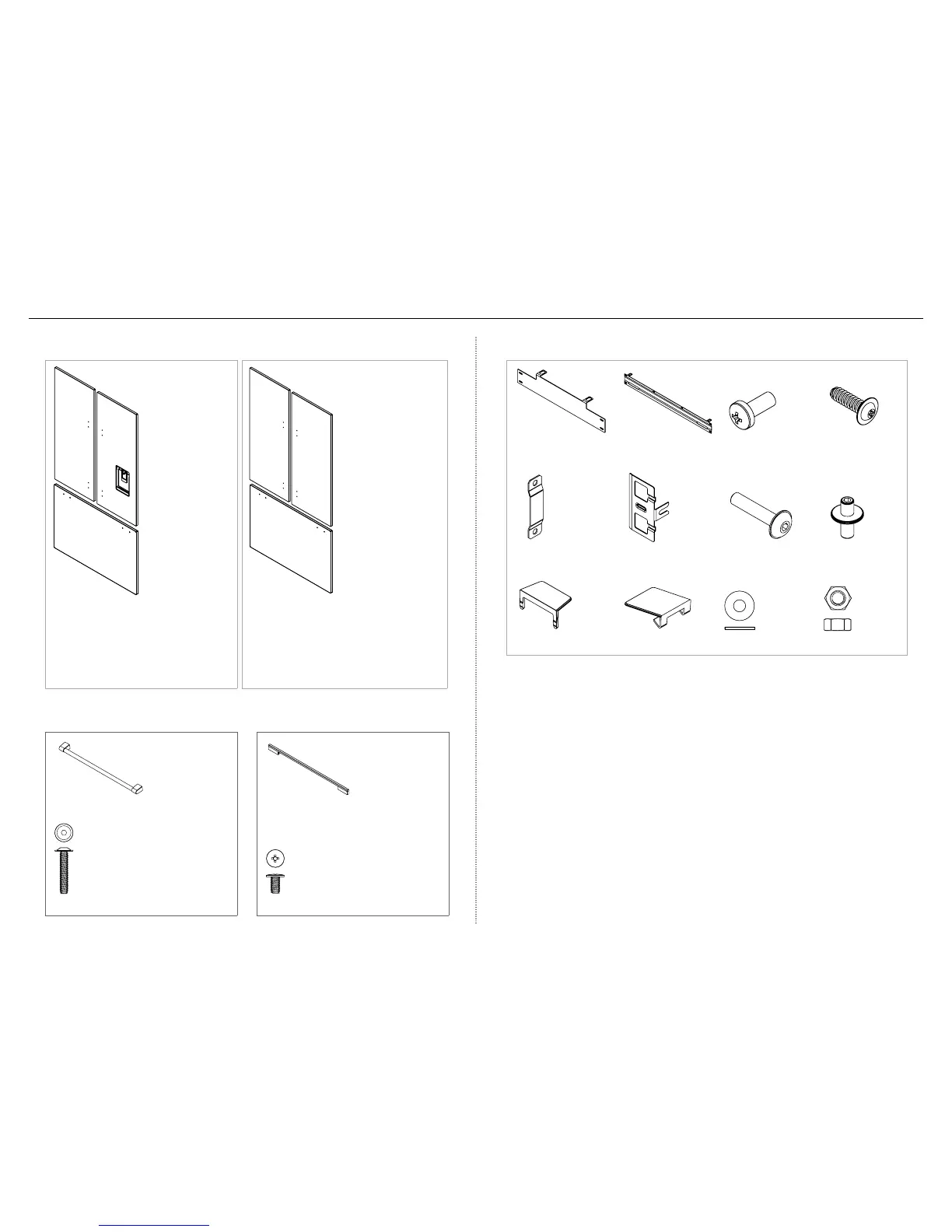

2 COMPONENTS LIST
Door panel fittings — included with the refrigerator
French door hanging
bracket (2x)
Drawer hanging
bracket (1x)
Side screw (10x) Screw washer
4x14 (34x)
Side strap (10x) Side bracket (10x) Handle screw (12x) Top stud (6x)
M8 Washer
M8 Washer
M8 Nut
M8 Nut
Side cover (4x) Top cover (2x) M8 washer (6x) M8 nut (6x)
Door panel set
Door panel set:
Non-Water dispensing French panel (1x)
Ice & Water French panel (1x)
Drawer panel (1x)
Model number:
RD90 / RD90U
Door panel set:
Non-Water dispensing French panels (2x)
Drawer panel (1x)
Door handle kit — not included with the refrigerator and must be purchased separately
Professional round door handle (3x)
OR
Contemporary square handle (3x)
M5 x 25
Pan Head
Socket Screw
M5 x 25
Pan Head
Socket Screw
M5 x 14
Mush Head
SS
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
M5x25 pan head socket screw (12x) M5x14 Mush Phillips SS (34x)
Fisher & Paykel
(Stainless steel)
door panel set is
not included with
the refrigerator
and must be
purchased
separately.
Custom door panel set
is only applicable for
non-Water dispensing
models. Customers
can supply their own
Custom door panel to
match their cabinetry.
