7

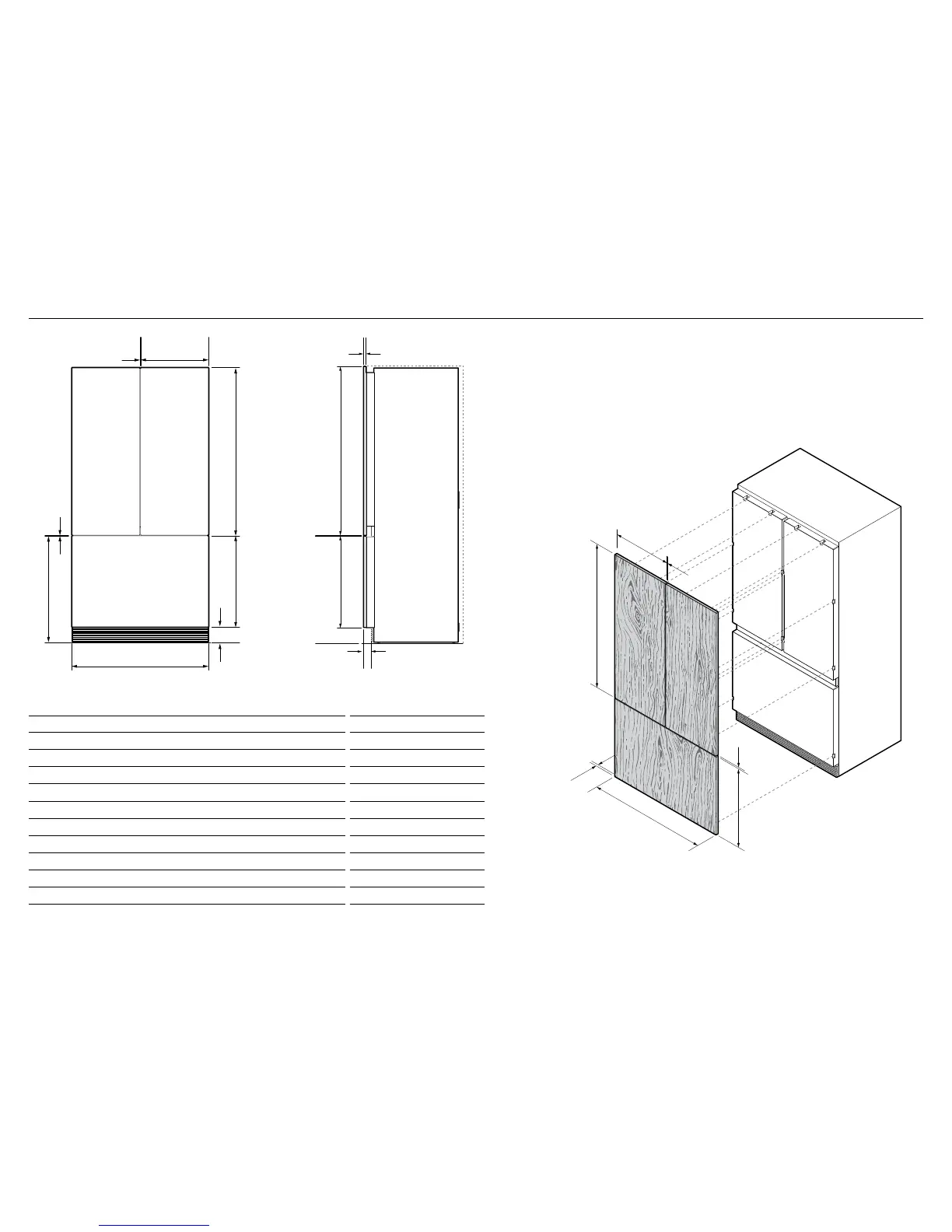

4 DOOR PANEL DIMENSIONS
f
e
g
d
j
c b
A
D
i
g
A
h
E
ISO VIEW
H
F
D
g
A
B
C
PROFILE VIEW
D
g
A
E
STAINLESS STEEL/CUSTOM
DOOR PANEL DIMENSIONS mm
A
Height of each top door panel 1096
B
Width of each top door panel 446
C
Gap between top door panels 4
D
Height of bottom drawer panel 598
E
Height from bottom of product to top of bottom drawer panel 698
F
Width of bottom drawer panel 896
G
Gap between top door panels and bottom drawer panel 4
H
Depth of each door panel (without handle) 18
i
Depth of grille (measured from front of door panels) 100
j
Height of grille 100
Custom door panels and handles to be manufactured and fitted by cabinetmaker.
Custom door panels can be only be used for non-Water
dispensing models.
f
e
g
d
j
c b
A
PROFILE VIEWFRONT VIEW
