16 mm x6

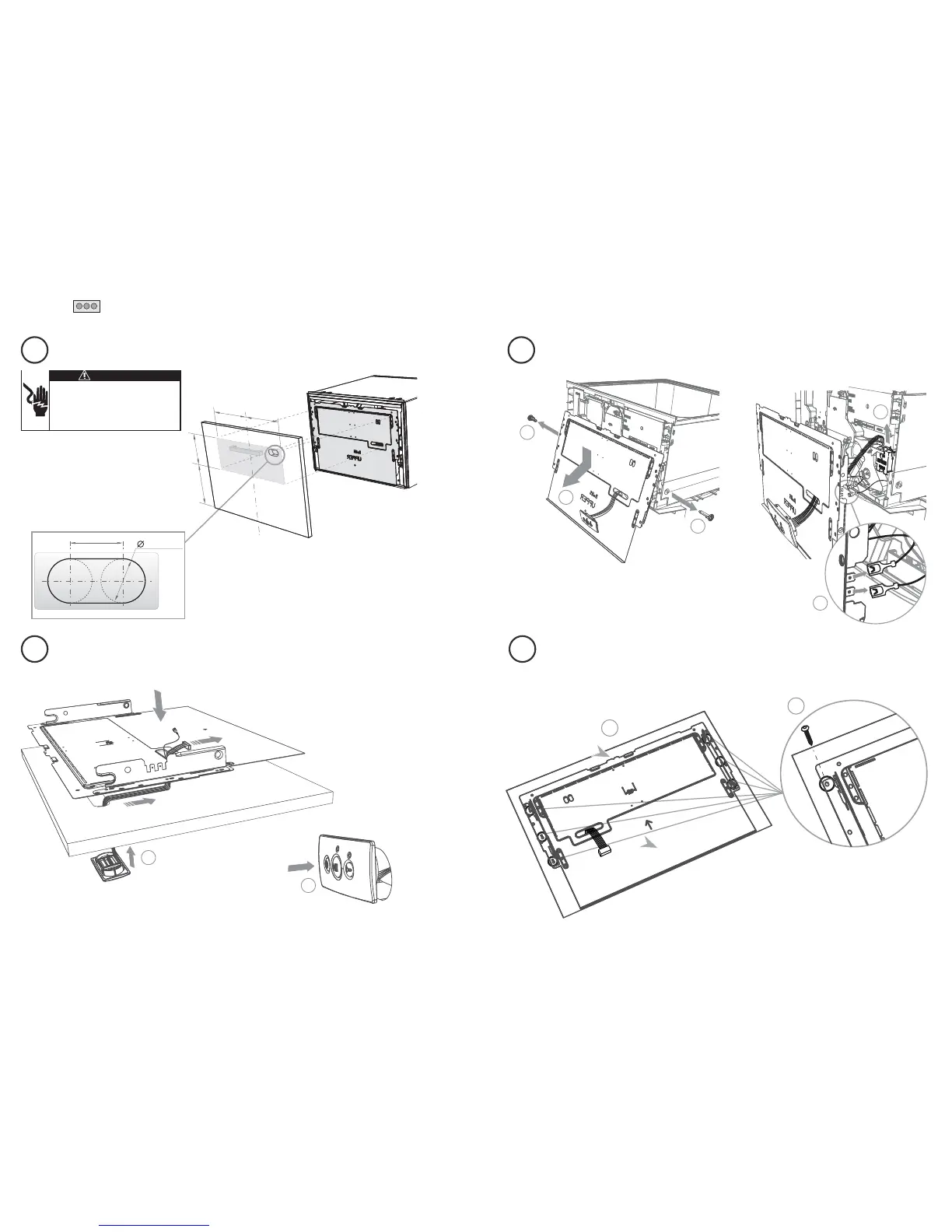

DETERMINE BADGE CUTOUT LOCATION
ROUTE BADGE WIRING THROUGH PANEL ATTACH PANEL TO PANEL BRACKET
REMOVE BRACKET & DISCONNECT BADGE
16b
18b 19b
17b
There must be at least
3 screws used each side
Align bottom of panel
with bottom of bracket
228.5 mm
228.5 mm
127 mm
255 mm
30 mm
25 mm
1
3
4
1
2
1
2
Badge zone
INTEGRATED MODELS WITH BADGE ONLY - INSTALLING THE FRONT PANEL & BADGE CONTROLS
Electrical Shock Hazard
Before continuing, ensure that the product is
disconnected from the power supply.
Failure to follow this warning may result in
electrical shock, injury or re.
WARNING!
