INSTALLATION INSTRUCTIONS
10
Pull hose
through
guide
Flex hose
guide apart
Standpipe 850 – 1200 mm
(20 mm)
maximum

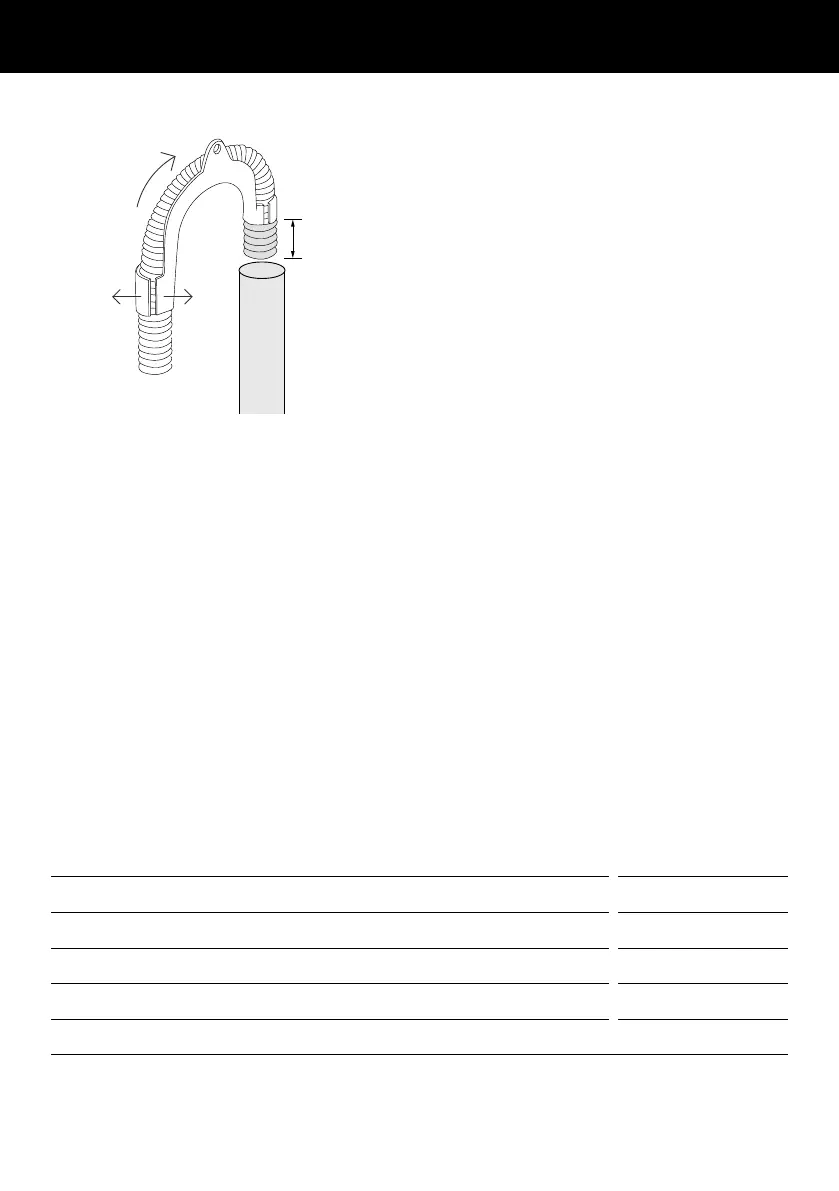

Fitting the drain hose guide
SPARE PARTS* PART NO.
Blanking Cap 388491P
Hose Inlet Long (2m) 422680P
Hose Inlet Large Bore 426123P
Drain Hose Extension 425627P
*Available from your Fisher&Paykel dealer or a Fisher&Paykel trained and supported service
technician.
Draining
To prevent siphoning the drain hose should not extend more than 20mm from the end
of the guide. The height of the standpipe or tub should be between 850–1200mm. The
drain hose can be trimmed to length.
z
Regularly check that your standpipe or tub is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.
z
In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain.
z
Draining must comply with local by-laws.
z
We recommend replacing the inlet hoses every 5 years. Hoses should be checked from
time to time and replaced if any wear, cuts, bulges, kinks or leaks are found.
Electrical connection
z
This appliance must be supplied with a 220–240V, 50Hz, sinusoidal, 10Aelectrical supply.
z
Check the power cord for damage, making sure it is not squashed or twisted.
z
A damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician, in order to avoid a hazard.
z
The appliance must not be operated until it is repaired, as there is a risk of electric shock.
Placing the drain hose in a standpipe or tub:
1 Carefully pull the drain hose out from the
back of the washer by pulling the exposed
part of the hose downward and outward.
2 To guide the drain hose over the tub or
standpipe the hose guide MUST be fitted to
the drain hose.
3 Place the drain hose in the tub or standpipe.
Do not fit the hose to a drain spigot. Drainage
must not be airtight in order to prevent
siphoning.
