INSTALLATION INSTRUCTIONS
7
Product and minimum clearance dimensions
WA**60*
PRODUCT DIMENSIONS MM
A Overall height of product † (to highest point on console) 1045 – 1075
B Overall width of product 600
C Overall depth of product 600
D Height of product lid closed 950 –980
E Height of product lid open 1350 – 1385
Standpipe height min. 850–1200
MINIMUM CLEARANCES MM
F Minimum cavity width 640
G Minimum depth clearance (incl. inlet hoses, drain hose
and bowed front)
660
H Minimum clearance to either side, wall or adjacent product
#
20
I Minimum clearance at the rear of the product 50
*The exact height of your washer is dependent on how far the feet are extended from the base of
the washer.
#
Applies either side.

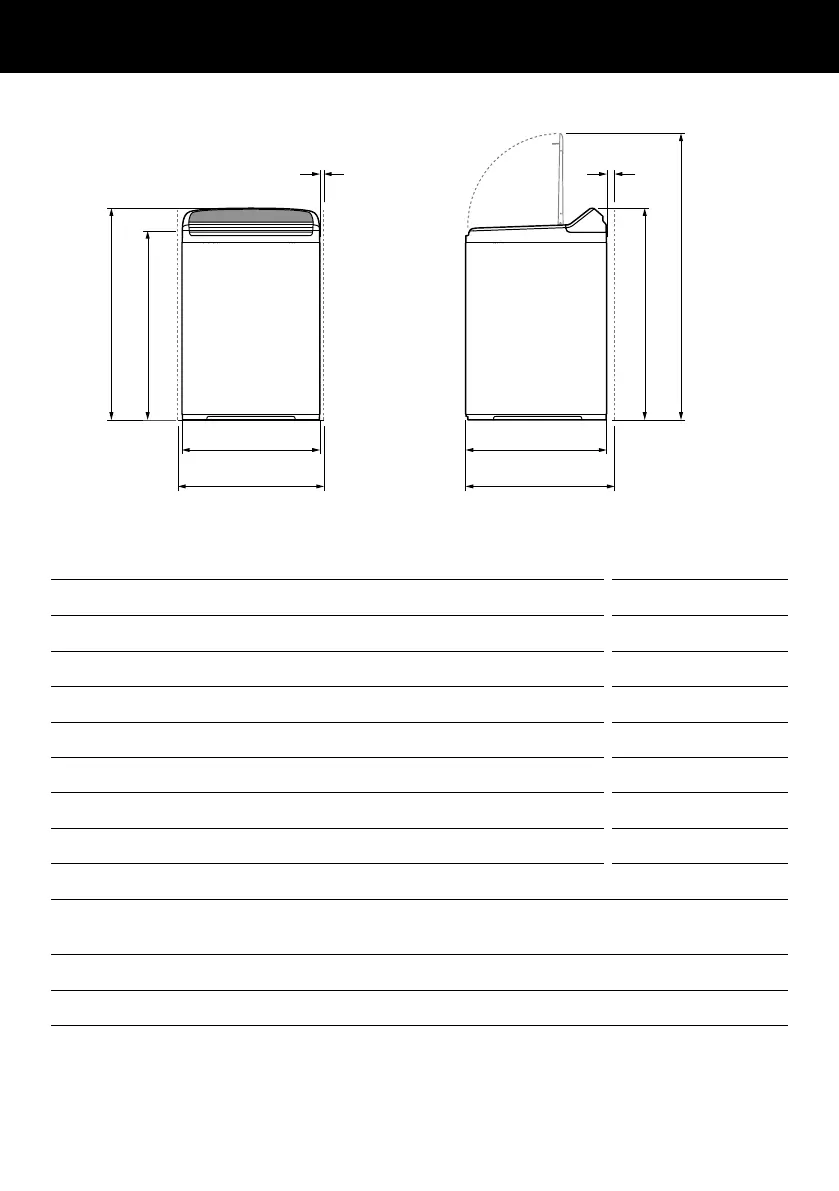

PROFILE VIEWFRONT VIEW
A AD E
B C
H
I
F G
