Fisher 667 - Page 20

Type 667 Size 30-76 & 87
20

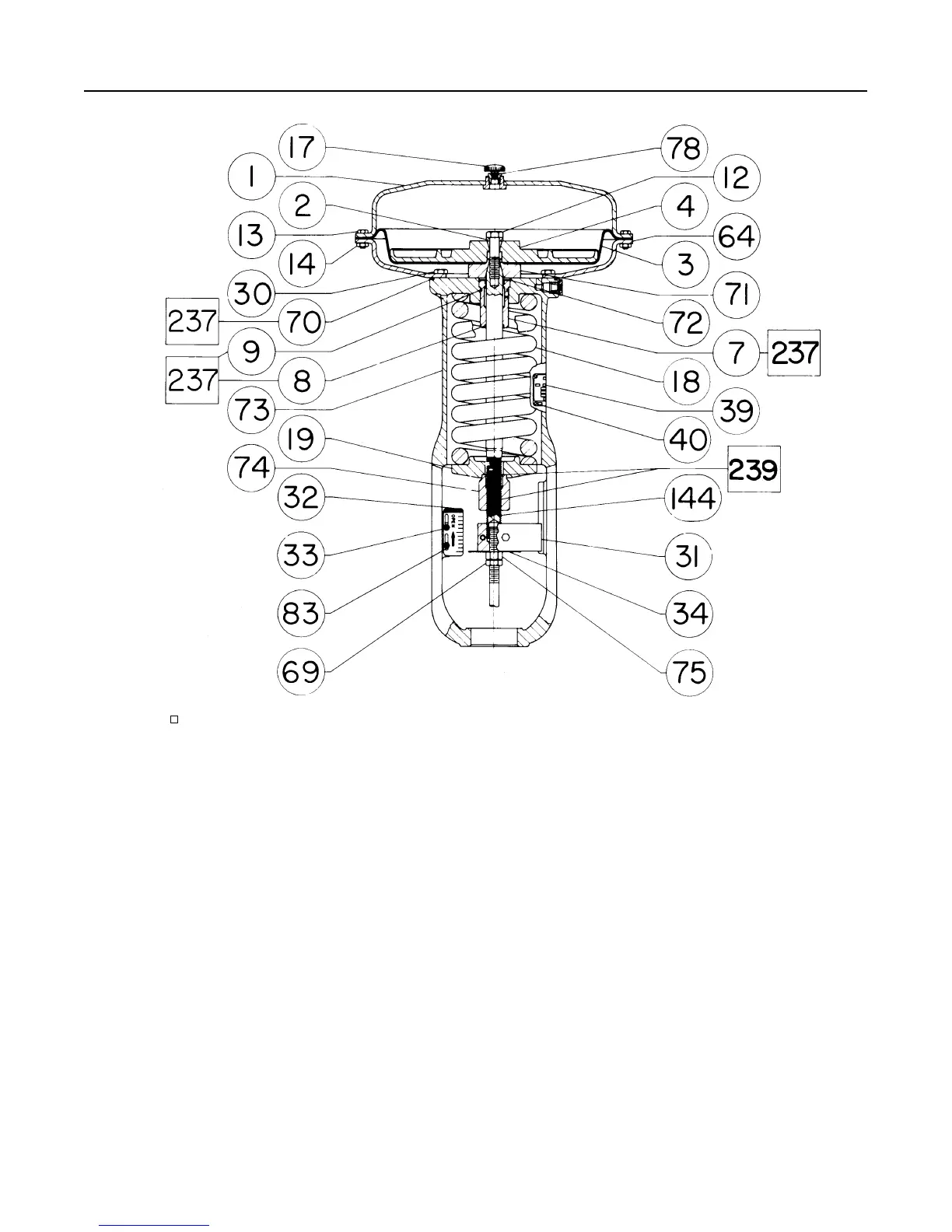

Figure 7. Type 667 Size 70 and 76 Actuator
APPLY LUBRICANT
50A8598-E / IL
Key Description Part Number Qty
31 Stem Connector Assembly (steel, zn pl)
Standard
Sizes 30 & 34 18A1243X012 1
Size 40 18A1668X012 1
Sizes 45 & 46 18A1671X012 1
Sizes 50 & 60 18A1672X012 1
Sizes 70 & 76 18A1675X012 1
Size 87 18A1825X012 1
w/Side-Mounted Handwheel
Size 34 1F659225142 1
Size 40 1F659125142 1
Sizes 45 & 46 (SST, Stl) 2F1678000A2 1
Sizes 50 & 60 (SST, Stl) 2F1672000A2 1
Size 70 19 to 76 mm (3/4 through 3-in.)
travel (SST, Stl) 18A1678X012 1
Size 70 19 to 102 mm (3/4 through 4-in.)
travel 21A8254X012 1
Size 76 18A1678X012 1
Size 87 25.4 mm (1-in.) valve stem 18A1825X012 1
Size 87 31.8 mm (1-1/4 in.) valve stem 18A1833X012 1
Key Description Part Number Qty
31 Stem Connector Assembly (steel, zn pl) (Con’t.)
w/PMV Positioner
Size 70 19 to 102 mm (3/4 to 4-in.)
Travel 11B2000X012 1
32 Travel Indicator Scale See following table
33 Screw, Self Tapping
Stainless Steel
Standard
Size 30 through 46 1E793238992 2
Size 50 through 87 1E831338992 2
33 Screw, Mach, Fill hd (steel, plated)
w/handwheel
Sizes 45 & 46 1B992528992 2
Sizes 70, 76 & 87 1A340628982 2
